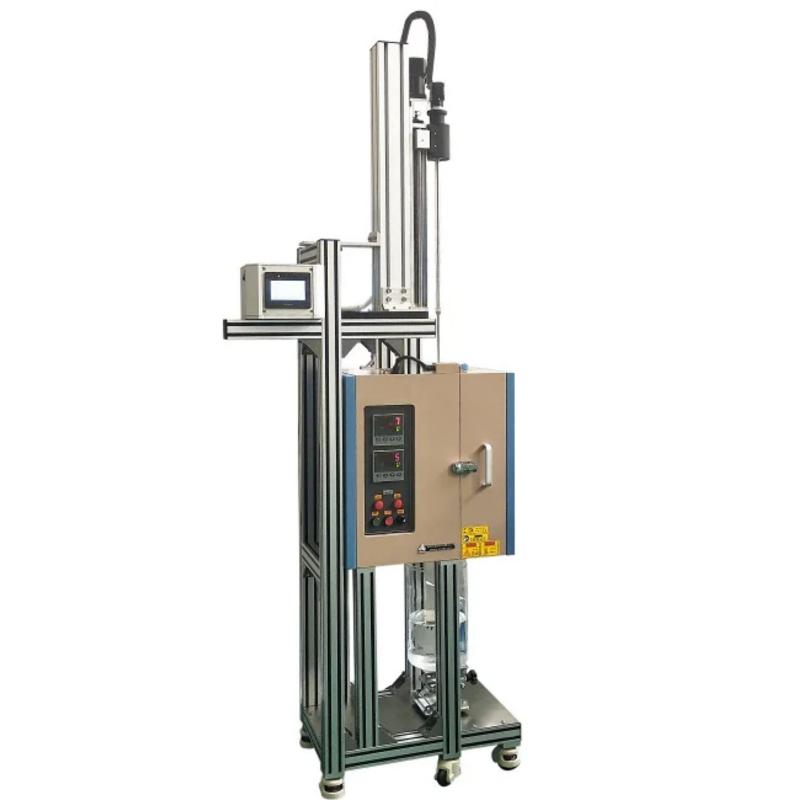

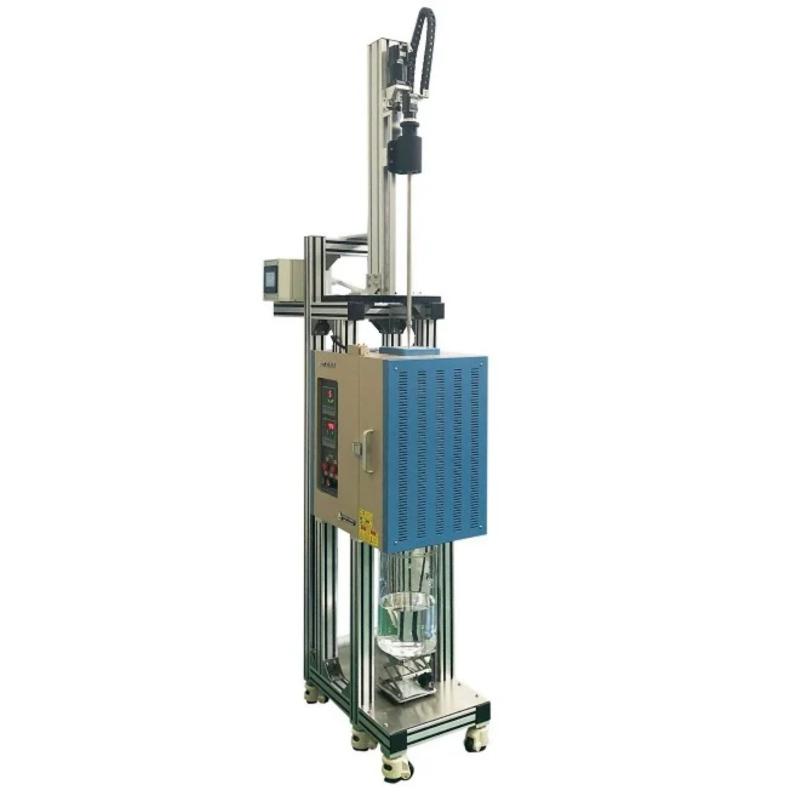

1000C High-Temperature Heated Dip Coating Unit Coater

The LITH-KJ01H10 High-Temperature Dip Coating System is designed for high-temperature (800–1000°C) thin-film deposition. It features three independently controlled temperature zones with adjustable lifting speeds for each stage, driven by a PLC-programmed high-precision stepping motor.

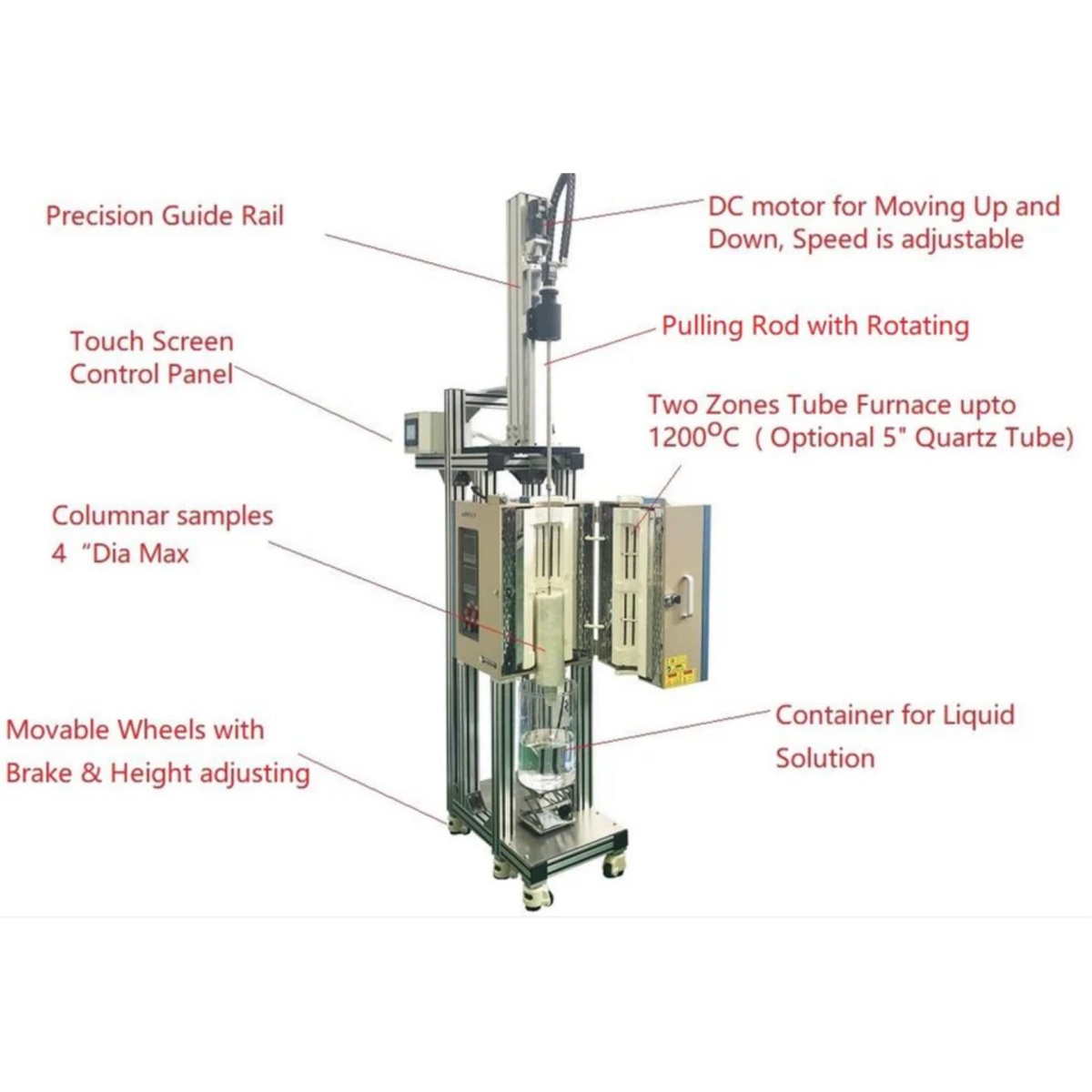

This system is widely used in research involving high-temperature dip coating. The sample is fixed to a lifting wire, lowered into a solution for immersion, then withdrawn into a high-temperature furnace tube for rapid film curing. The furnace can reach up to 1000°C, with standard lifting wires rated for ≤800°C. Special lifting wires (800–1000°C) are available upon request.

The LITH-KJ01H10 is ideal for high-temperature film growth applications, including:

· Ceramic films

· Crystalline films

· Battery material films

· Specialized nanofilms

It supports operation in inert (N₂, Ar) or oxidizing atmospheres and is widely used in universities, research institutes, and industrial laboratories.

Key Features

· High-temperature capability: Furnace supports up to 1000°C (standard lifting wires rated for ≤800°C; higher-temperature wires require customization).

· Multi-zone control: Three independently adjustable temperature zones, each with customizable lifting speeds.

· Advanced drive system: PLC-controlled high-precision stepping motor with vibration-damping suspension wire technology.

· User-friendly interface: 4.3" color touchscreen for intuitive operation.

· Atmosphere compatibility: Works in inert (N₂, Ar) or oxidizing environments.

Technical Specifications

Notes:

1. Standard power adapter: Input AC100–240V 50/60Hz, Output DC24V 3.75A.

2. Customizable AC110V 50/60Hz furnace available upon request.

Standard Accessories

1. Sample holder – 1 set

2. Solution containers – 2 pcs

3. High-temperature lifting wires (≤800°C) – 3 pcs

Optional Accessories

1. Specialized lifting fixtures

2. High-temperature lifting wires (800–1000°C)
