Thermal Sprayed Ceramic Roller Mill

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-MSK-HRP-MR100B
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

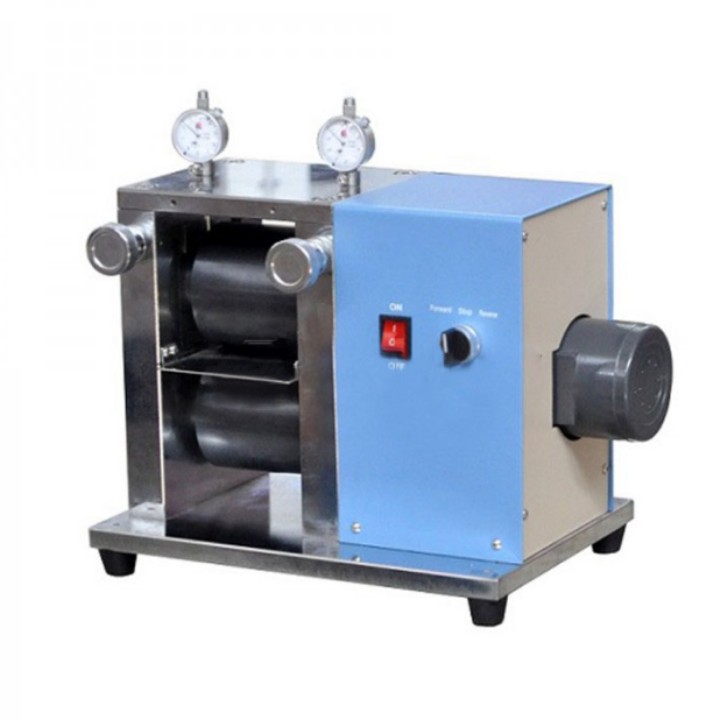

Thermal Sprayed Ceramic Roller Mill


Thermal Ceramic Roller

Product description:

The MSK-HRP-01 heated roll-to-roll mill is designed for materials researchers and is suitable for manual rolling of battery materials, small amounts of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminium in the laboratory, with adjustable rolling thickness and easy operation. It is particularly suitable for thinning and increasing the density of lithium battery plates for clean energy materials.



Technical parameters:

Power supply

AC220V

Motor power

90V 40W DC

Heating power

AC 220V 550W

Rolled material

Maximum thickness: 2mm, maximum width: 90mm

Diameter of roll

Φ 96

 Line speed of roll

5-35mm/s (with digital display and speed regulation)

Roll surface hardness

>HV900

Roll surface round jump



0.004 mm

Roll surface

roughness



Ra0.4 or above

Roll width

100mm

Heatable width

100mm

Standard clearance

0.01 mm



Rolling temperature

Maximum heating temperature: 100 ℃(<1 hour),

continuous heating temperature: 80 ℃,

recommended heating rate: 1.3 ℃/min



Note

When the temperature is heated to 100℃, the roll may deform, causing the gap to become larger
