Lab Digital Fluid Dispenser for Coin Cell Production

Contact Person：Gilia Ding

Email: gilia@inthelaboratory.com

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna

Item no.:
LITH-BD-50ml
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Lead Time:
7 days
Compliance:
CE Certified
Warranty:
Two years limited standard warranty

Categories

New Products

IPX34 Spraying Water Rain Tester Machine Testing Chamber view more

Product Detail

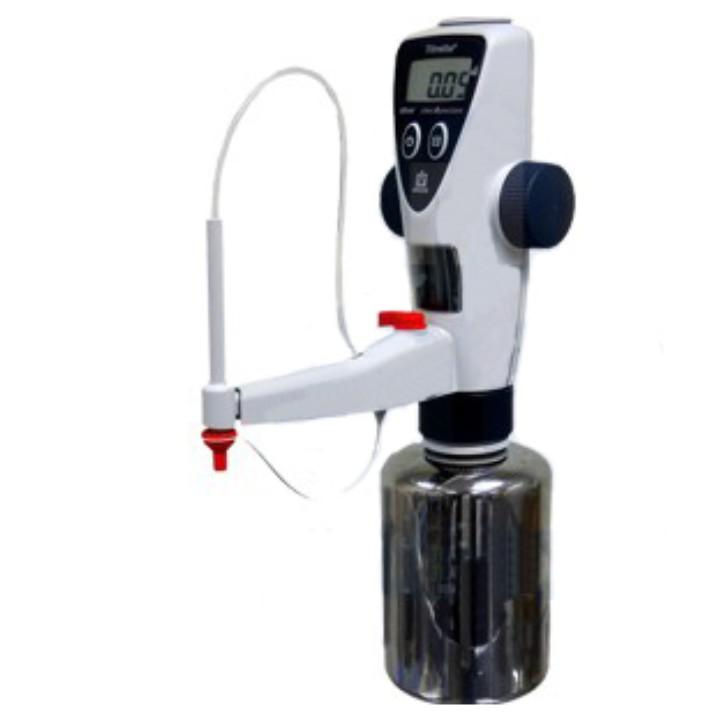

Lab Digital Fluid Dispenser for Coin Cell Production

Fluid Dispenser

Product Overview:

The BD-50ml dispenser is a digital dispenser with a digital display that eliminates errors arising from human readings and calculations, and has the advantage of small size and long battery life, making it suitable for use in confined spaces and environments away from power sources.

Product features:

1. Compact design, lightweight and stable.

2. High accuracy - accurate titration within the error limit of class A.

3. Easy to operate, no need to switch between "fill" and "titrate".

4. Smooth and sensitive operation, with drip titration.

5. Easy maintenance, simple cleaning and replacement of components.

6. Optional connection to a computer, data transfer directly to the computer.

Technical parameters:

Product name

BD-50ml fluid dispenser

Model number

BD-50ml

Technical parameters

Comparison of error limits

Project		0-50ml fluid dispenser				Burette				Class A glass burette
Capacity （ml）	Partial capacity（ml）	Accuracy≤± （%）（µl）		Error factor≤ （%）（µl）		Accuracy≤± （%）（µl）		Error factor≤ （%）（µl）		Max. error（µl）
25	25	0.07	18	0.025	6	0.2	50	0.1	25	30
	12.5	0.14	18	0.05	6	0.4	50	0.2	25	30
	2.5	0.70	18	0.25	6	2	50	1	25	30
50	50	0.70	30	0.02	10	0.2	100	0.1	50	50
	25	0.12	30	0.04	10	0.4	100	0.2	50	50
	5	0.60	30	0.20	10	2	100	1	50	50

The final test values for the above accuracy and error coefficients relate to the maximum capacity and were obtained by smooth operation at room temperature (20°C).
