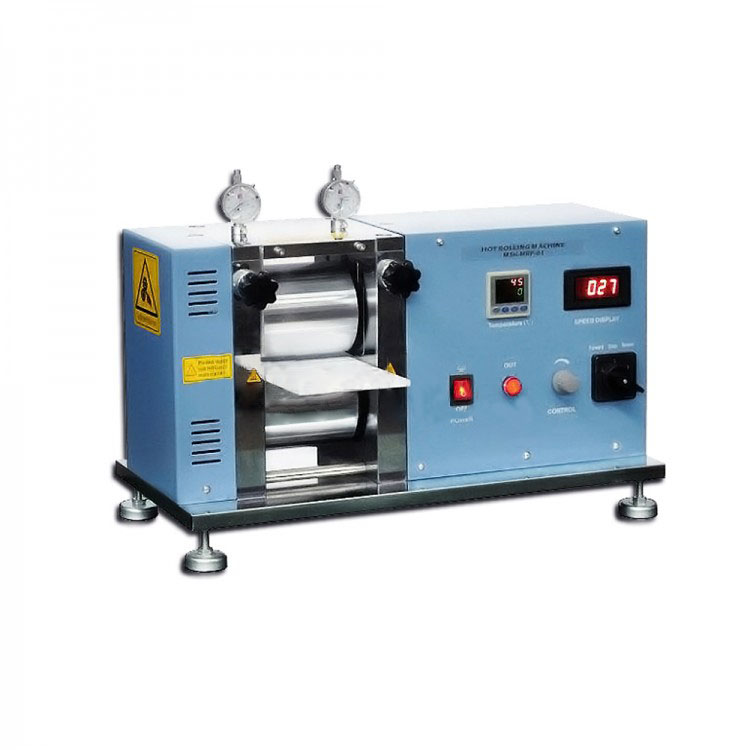

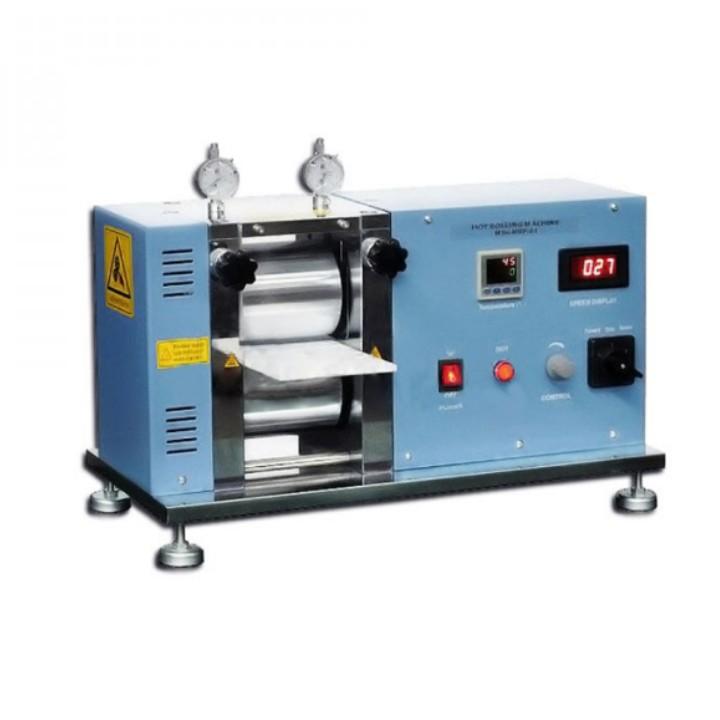

Lab Heated Electric Sprayed Ceramic Counter Roller



Heated Electric Counter Roller

Product overview:

MSK-HRP-MR100B (Sprayed ceramic rollers are designed for materials researchers and are suitable for manual rolling of battery materials, small amounts of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminium in the laboratory, with adjustable rolling thickness and easy operation. It is particularly suitable for thinning and increasing the density of lithium battery plates for clean energy materials.



Technical parameters:

Power supply

AC220V

Motor power

90V 40W DC

Heating power

AC 220V 550W

Rolled material

Maximum thickness: 2mm, maximum width: 90mm

Diameter of roll

Φ 96

 Line speed of roll

5-35mm/s (with digital display and speed regulation)

Roll surface hardness

>HV900

Roll surface round jump



The 0.004 mm

Roll surface

roughness



Ra0.4 or above

Roll width

100mm

Heatable width

100mm

Standard clearance

The 0.01 mm

 Rolling temperature

Maximum heating temperature: 100°C (<1 hour),

continuous heating temperature: 80°C,

recommended heating rate: 1.3°C/min

 Note

When the temperature is heated to 100°C, the roll may deform, causing the gap to become larger
