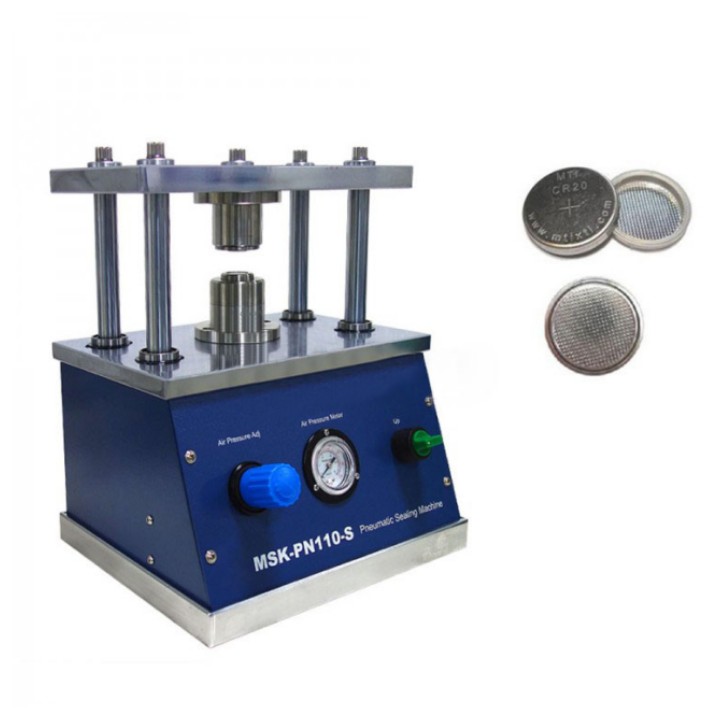

Small Cylinder Driven Pneumatic Button Battery Sealing Machine

Product overview:

The MSK-PN110-S pneumatic button battery sealing machine is cylinder driven to achieve the encapsulation and decapsulation process for button batteries. The standard configuration sealing mould can be used to seal series of button batteries with a diameter of 20mm such as CR2016, CR2025, CR2032, etc. After replacing the mould accessories, other diameter button batteries (such as CR2450, CR1620, etc.) can be sealed. Optional dismantling moulds are available for complete dismantling of positive and negative battery cases after button cell sealing to facilitate the ingestion of samples of internal battery materials for research and analysis.

Product features:

Pneumatic cylinder driven moulds for button cell sealing, with manual valve control of sealing pressure.

Small and lightweight, easily placed in a glove box for use.

Compressed air or inert gas cylinder supply, with an external compressed gas vent to prevent damage to the glove box atmosphere.

Precise mould design for precise and reliable sealing and excellent sealing quality.

Different moulds for encapsulating and dismantling different sizes of coin cell batteries, making it possible to use one machine for multiple purposes.

Pure pneumatic operation, no need for electricity, convenient and easy to use.

Technical parameters:
