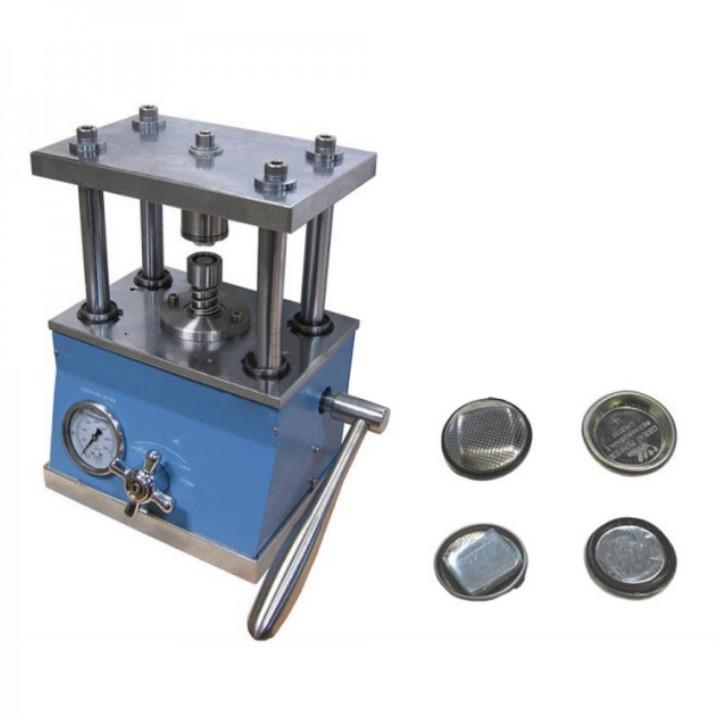

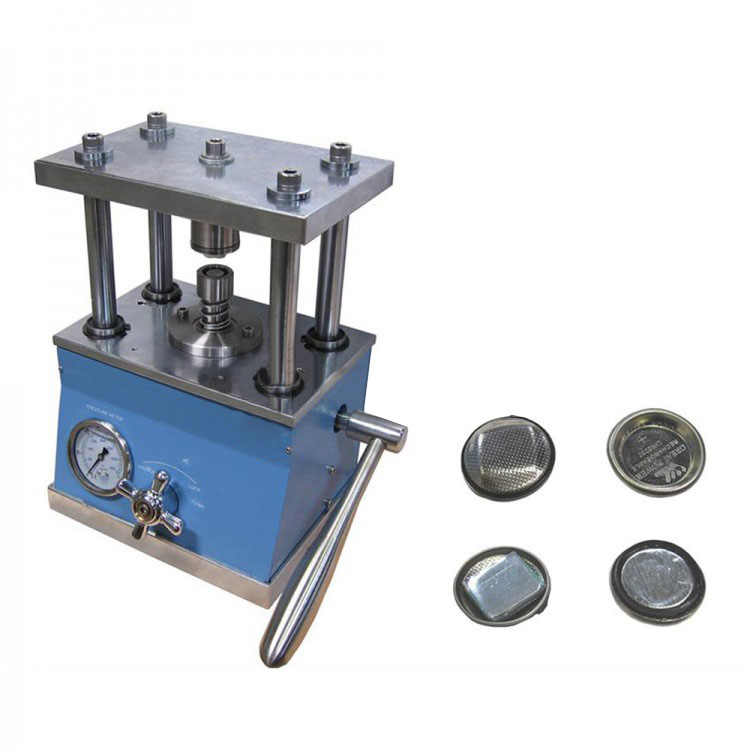

Small Manual Hydraulic Button Crimper Electrode Separator Press Machine for Coin Cell Production Line
Product overview：
The MSK-110D Small Hydraulic Button is a small hydraulic button battery remover product developed by MTI USA. The standard configuration can be used to remove all CR20 series button cells. It has the advantages of small size, easy operation and precise disassembly. It is primarily used for sample ingestion studies of internal battery materials.
Product features:
Small size, ease of operation, can be placed in a glove box to operate the pole piece.
Specially designed hydraulic structure for effortless operation.
Built-in pressure gauge for observation and accurate control of disassembly pressure.
Precise mould design to ensure accurate and reliable seal forming.
Stable and safe use due to the solid steel design.
Built-in safety oil valve to adjust the pressure when necessary and to set the upper pressure limit to prevent damage caused by excessive pressure due to misuse.
Attractive appearance and easy maintenance.
Technical parameters:
|
Reference pressure |
The normal button battery disassembly pressure gauge reading is 50kgcm2-60kg/cm2. the machine has been set at about 65kg/cm2 before leaving the factory, such as in special circumstances require more force (maximum force 200kg/cm2 about 8 tons of pressure) to be adjusted only after consulting the manufacturer. |
|
Mold |
A set of dies for removing CR20 series button cells such as CR2032, CR2025, CR2016, etc. |
|
Material for Structural parts |
Alloy aluminium and high strength chrome steel with an environmentally friendly electroplated and painted surface that will never rust |
|
Product Dimensions |
228mmx176mmx 310mm |
|
Net weight |
25kg |
|
Standard accessories |
Set of dismantling dies for CR20 series |
