Double Planet Four Paddle Twin Planetary Vacuum Mixer for Coin Cell Production

Product overview:

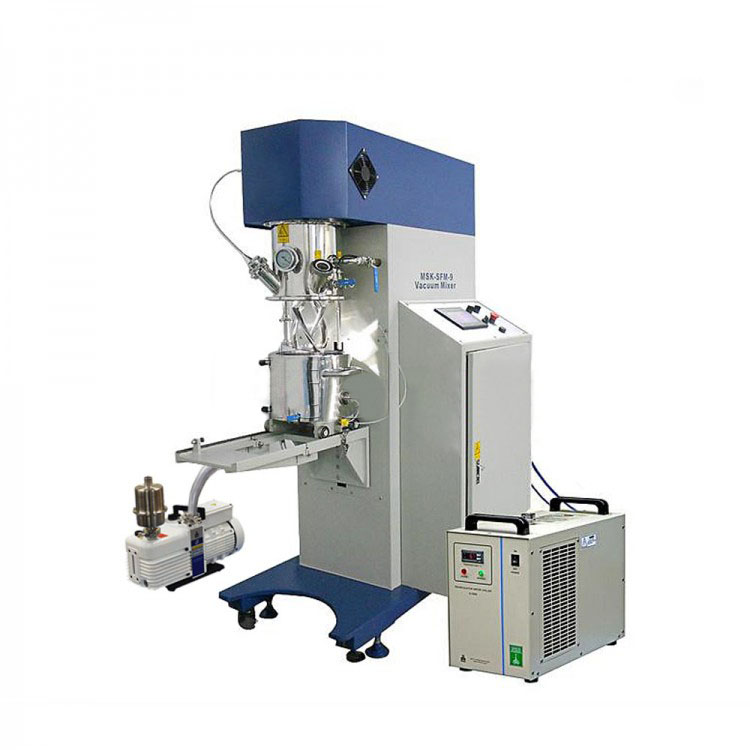

Msk-sfm-9 double planet four paddle vacuum mixer is an efficient mixing equipment which integrates vacuum low speed mixing and high speed dispersing. It can be used in various solvent and powder mixing processes, such as lithium ion battery, tape, solar energy, chemical and other raw materials mixing process.The equipment has the advantages of integrated design, compact size, good mixing uniformity and easy to use.

Product features:

Double axis planetary stirring, twist frame stirring paddle with high speed dispersion plate and scraping wall, no dead stirring Angle;

Low speed mixing through the male and rotation to achieve macro mixing, high speed dispersion plate through shear force to achieve micro mixing;

Vacuum environment, effectively eliminate the bubbles produced in the mixing process, vacuum maintenance effect is good;

Mixing tank effective volume 5L, using high quality SUS304 stainless steel refining, acid and alkali corrosion resistance;

Can carry out multi-stage speed operation, can set the stirring speed and time of each section;

Slurry bucket lifting design, equipped with spotlights, easy to operate, to ensure the safety of vacuum mixing process;

PLC control, HMI operation, motor overload protection and other electrical safety design;

Jacket type mixing tank design, can pass cooling water, suitable for a variety of process requirements;

Technical parameters:
