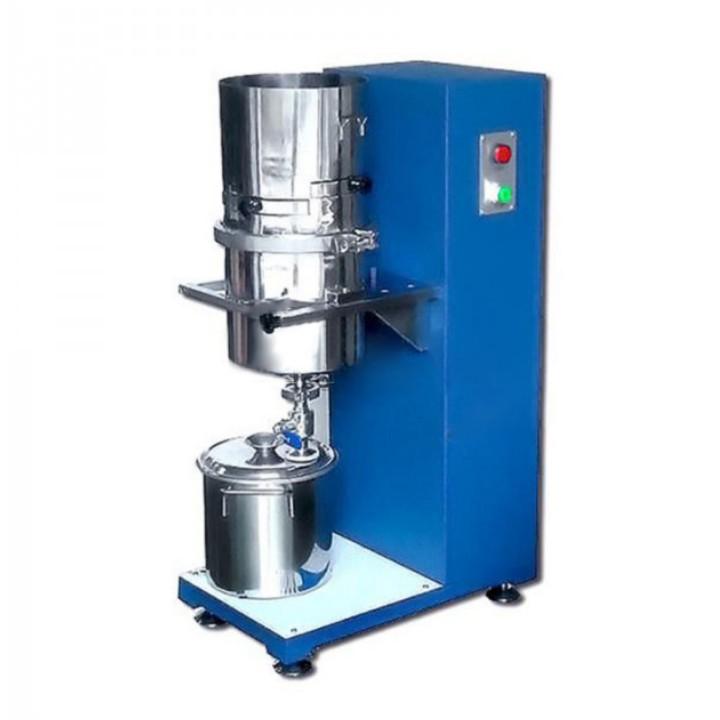

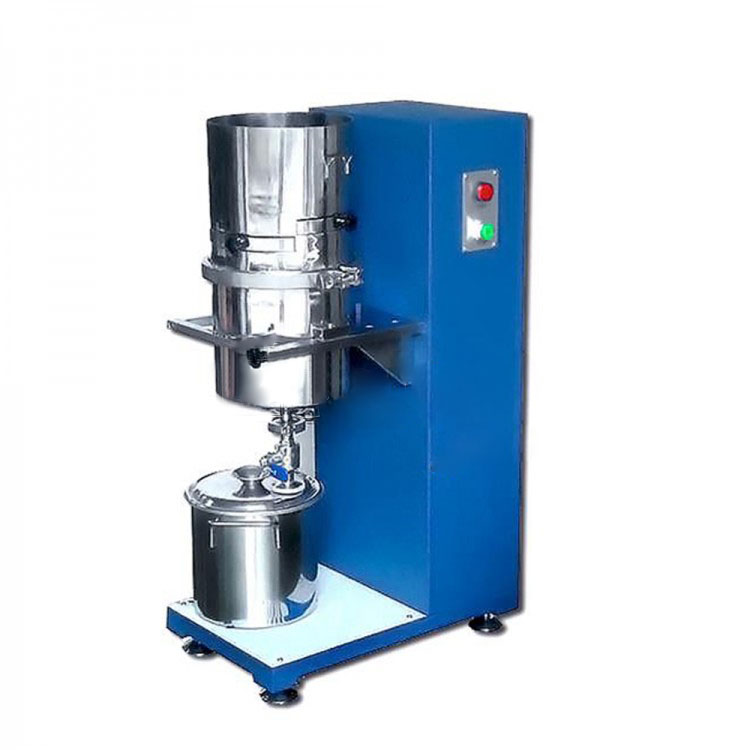

Slurry Iron Removal Filter Processor Machine with with A Vacuum System
Product overview:
MSK-FT02 slurry iron removal and filtration processing machine as slurry iron removal and filtration processing equipment, applied to lithium-ion battery positive and negative slurry dosing after, before coating slurry optimization processing, equipment configured with iron removal and vacuum filtration two functions.
Product features:
Filter tank with all stainless steel design, good resistance to acid and alkali corrosion.
Equipped with a vacuum system for filtration and different mesh filters according to requirements.
Permanent magnets for iron removal and easy removal of magnets for cleaning.
Optimised slurry particle size to improve the consistency of the coating.
Technical parameters:
|
Power supply |
Single-phase voltage 100~240VAC±10%, frequency 50Hz/60Hz, power 100W, less than 4 Ω grounded |
|
Treatment contents |
Vacuum filtration, magnetic separation for iron removal, intermittent treatment |
|
Processing power |
5L/ time |
|
True space |
Absolute vacuum 65KPa |
|
Strainer specification |
Less than 1000 mesh, recommended lithium battery 80~120 mesh |
|
Iron removal ability |
8000~10000 Gauss |
|
Slurry status |
Recommended viscosity ≤20000CP, solid content ≤80% |
|
Mounting size |
L500 * H850mm W300 |
|
Heavy quantity |
40Kg |
