Laboratory Nanoscale Slurry Filtration Unit Device for Coin Cell Production

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-MSK-FT01
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

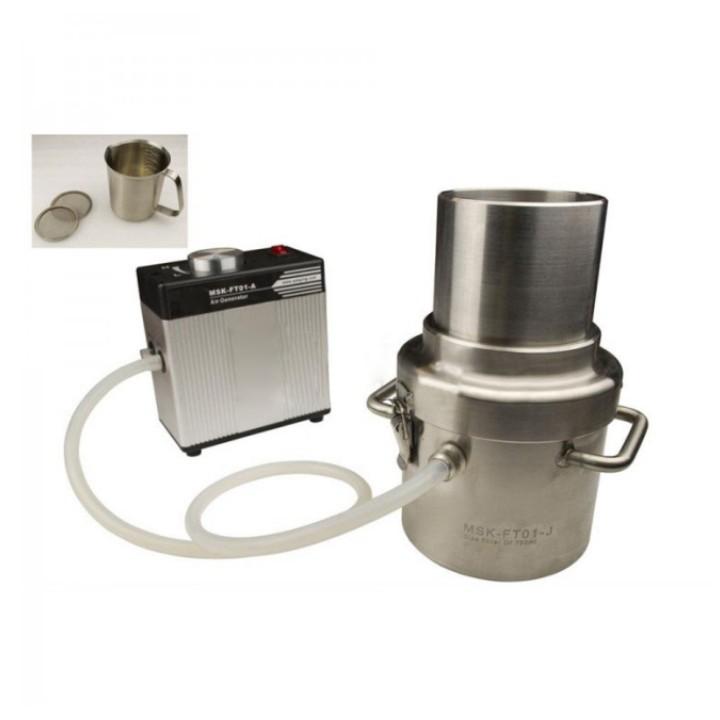

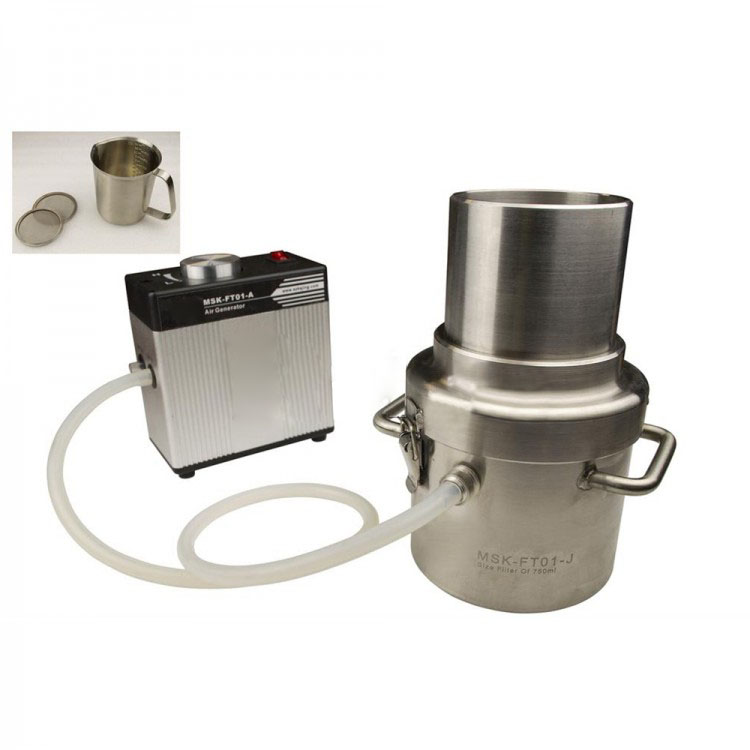

Laboratory Nanoscale Slurry Filtration Unit Device for Coin Cell Production



Slurry Filtration Unit

Product overview:

MSK-FT01 slurry filtration device is a small device designed for laboratory nanoscale slurry filtration, applied to vacuum filtration of lithium-ion battery positive and negative electrode material slurry with excellent results.



Functional features:

All stainless steel design of the filter tank, with good resistance to acid and alkali corrosion.

Equipped with a vacuum system to achieve filtration, and can be configured with different mesh filters according to requirements.

Compact design, flexible and easy to use.



Technical parameters:



Power supply

Voltage single-phase 100~240VAC±10%, frequency 50Hz/60Hz, power 100W

Processing power

750ml/ session

True space

-65KPa

Strainer  specification

Less than 1000 mesh, recommended lithium battery 80~120 mesh



Mounting size

Filter L150×W150×H200mm, vacuum generator L140×W70 ×H150mm

Heavy weight

4Kg
