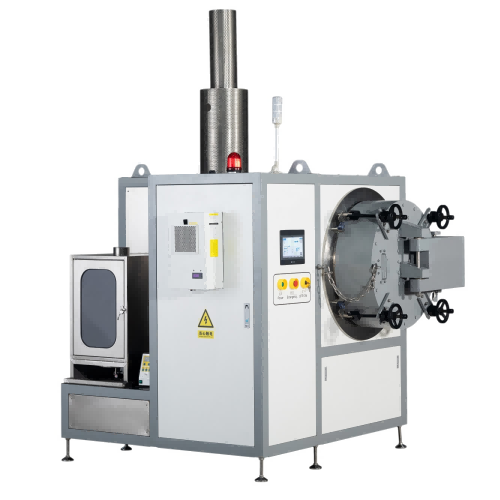

Powder Metallurgy Manufacturing a Catalytic Binder Removal Furnace Using Nitric Acid

Introduction

Catalytic debinding for conventional active metal materials that are easy to be oxidized, which is more energy-saving, safer operation environmental-friendly, and the exhaust gas can be directly discharged.

Specification

Model No: 300L-G

Working Temperature: 100–140°C

Overall Dimension: L2052 x W1820 x H2930 mm

Available Working Size: L1005 x W414 x H421 mm

Chamber Dimension: φ650 x 1108 mm

Standard Cycle Time (Loading & Unloading): 4–6 h

Acid Feeding Mode: Controllable continuous acid feeding

Nitrogen Consumption: 4 m³/h

Total Weight: 1500 kg

Feeding Mode: Transfer cart type

Installed Power: 14 kW
