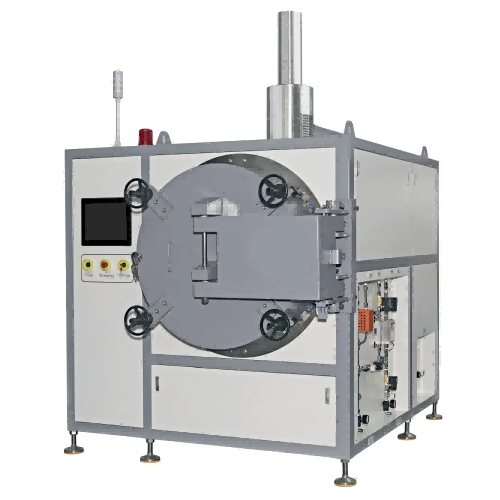

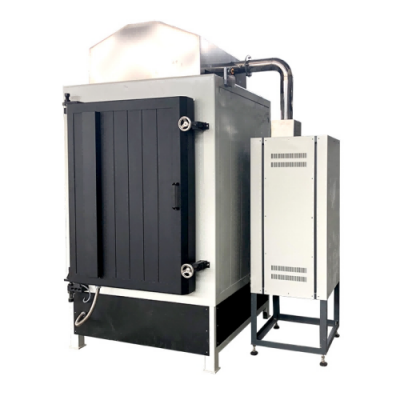

For Catalytic Debinding a Low Temperature 800L Oxalic Acid Furnace

Introduction

Catalytic debinding for conventional active metal materials that are easy to be oxidized, which is more energy-saving, safer operation environmental-friendly, and the exhaust gas can be directly discharged.

Specification

Model No: 800L-DM

Working temperature: 110-140°C

Dimension: L2830xW1940xH2760mm

Available working size: L1275xW527xH447mm

Chamber dimension: ф850x 1452 mm

Standard cycle ti: 4-6 h

Oxalic acid consumptio: 150-300 g/h

Acid feeding mode: Continuous controlled acid feeding

Nitrogen consumption: 3.5-4.5 m3/h

Total weight: 2300 kg

Feeding mode: By transfer cart

Combustion mode: Electrothermal combustion

Exhaust gas: CO2and H2O(Non-pollution)

Installation power: 40.7KW
