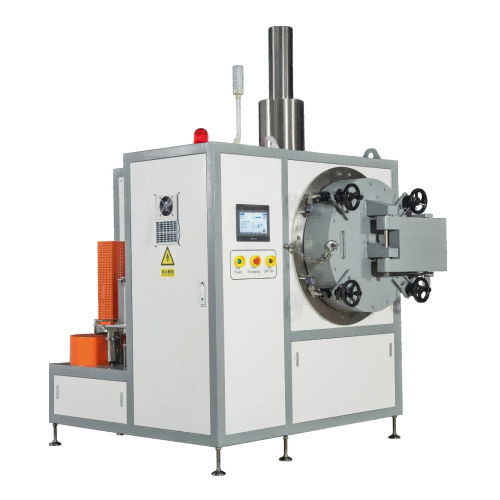

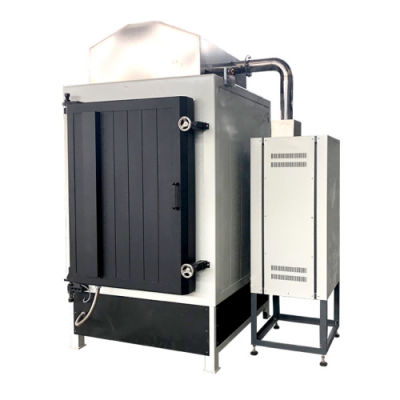

400L Oxalic Acid Catalytic Debinding Furnace with Energy Saving and Environmental Protection

Introduction

Catalytic debinding for conventional active metal materials that are easy to be oxidized, which is more energy-saving, safer operation environmental-friendly, and the exhaust gas can be directly discharged.

Specification

Model No: 400L-0A

Working temperature: 110-140°C

Dimension: L2046xW1769xH2718mm

Available working size: L1005x W421x H414 mm

Chamber dimension: φ700x 1202 mm

Standard cycle ti: 4-6 h

Oxalic acid consumptio: 150-300 g/h

Acid feeding mode: Continuous controlled acid feeding

Nitrogen consumption: 3.5-4.5 m3/h

Total weight: 2000 kg

Feeding mode: By transfer cart

Combustion mode: Electrothermal combustion

Exhaust gas: CO2and H2O(Non-pollution)

Installation power: 32.3KW
