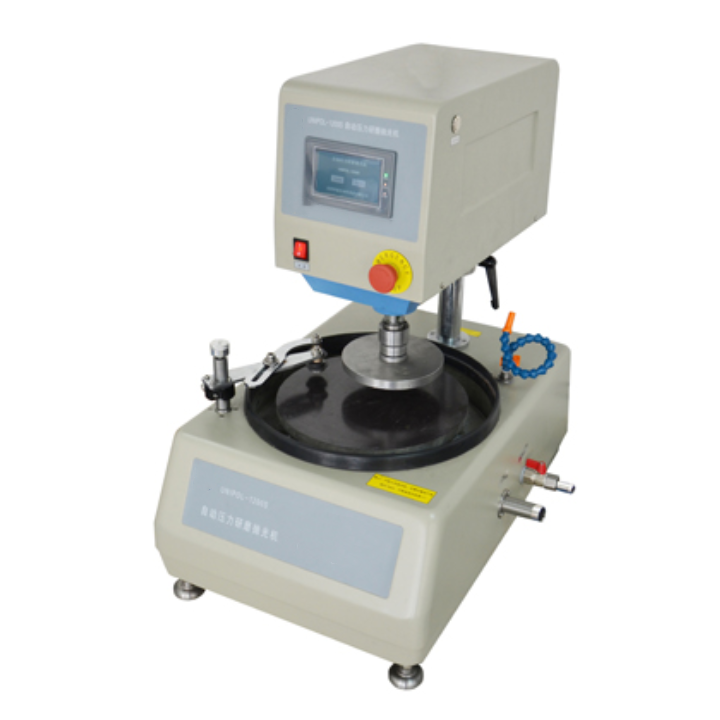

Laboratory Automatic Pressure Grinding and Polishing Machine

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-UNIPOL-1200S
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Laboratory Automatic Pressure Grinding and Polishing Machine




Polishing Machine

Product introduction

UNIPOL-1200S Automatic Pressure Grinding and Polishing Machine is mainly applied in the field of material research, widely used in the laboratories of colleges and universities, scientific research institutes for automatic grinding and polishing of metals, ceramics, glass, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium and other crystals), rock samples, mineral samples, composite materials, organic polymers and other materials, as well as small-scale production in factories and so on. UNIPOL-1200S Automatic Pressure Grinding and Polishing Machine adopts the mechanical pressurisation method, which can make the sample subject to a constant pressure during the grinding process. UNIPOL-1200S Automatic Pressure Grinding and Polishing Machine is equipped with a robot grinding and polishing station, so that the machine can not only grind and polish super-hard materials under high pressure, but also grind and polish easy to disintegrate and easy to break materials under the action of the robot, which broadens the scope of use of the machine.UNIPOL-1200S Automatic Pressure Grinding and Polishing Machine can grind and polish the time, and the machine stops rotating automatically when time is up, so that it can realise unattended operation of the machine.



Main features

1. Specially equipped with a robot grinding and polishing station.

2. Centre loading pressure, stable and reliable pressure.

3. Excellent performance, simple operation, wide range of application.



Technical parameters

Product name

UNIPOL-1200S Automatic Pressure Grinding and Polishing Machine

Product model

UNIPOL-1200S

Installation conditions

This equipment is required to be used at an altitude of 1000m or less, at a temperature of 25℃±15℃ and a humidity of 55%Rh±10%Rh.

1. Water: the equipment is equipped with a water port and a water port, you need to connect the tap water and drainage

2. Electricity: AC220V 50Hz, must have good grounding

3. GasNo

4. Working table: size 800mm×600mm×700mm, load-bearing 200kg or more

5. Ventilation device: not required

Main Parameters

1. Power supply: 220V 50Hz; Power: 550W

2. Flat load tray: Ø160mm

3. Gravity load tray: Ø105mm

4. Polishing disc: Ø300mm

5. Load disc (upper disc) speed: 10rpm-80rpm (stepless speed regulation)

6. Grinding and polishing disc (lower disc) speed: 20rpm-240rpm (incremental speed regulation, minimum incremental 10)

7. Pressure: 0.5kg-20kg (minimum increment 0.5kg)

Product specification

Size660mm×460mm×800mmweight95kg



Standard accessories

No.

Name

Amount

Pictures

1

Cast iron grinding disc

1



2

Cast aluminium disc

1



3

Carrying disc

1



4

Gravity load disc

1



5

Disc repair ring

1



6

Magnetic discs

2



7

Grinding and polishing primer

2



8

Sandpaper (240#, 400#, 800#, 1500#)

2 for each



9

Polishing pads

(Brushed leather, synthetic leather, polyurethane)

1 for each



10

Diamond polishing paste (W2.5)

1





Optional accessories

No.

Name

Function Category

Pictures

1

SKZD-2 Drip feeder

(Optional)



2

SKZD-3 Drip feeder

(Optional)



3

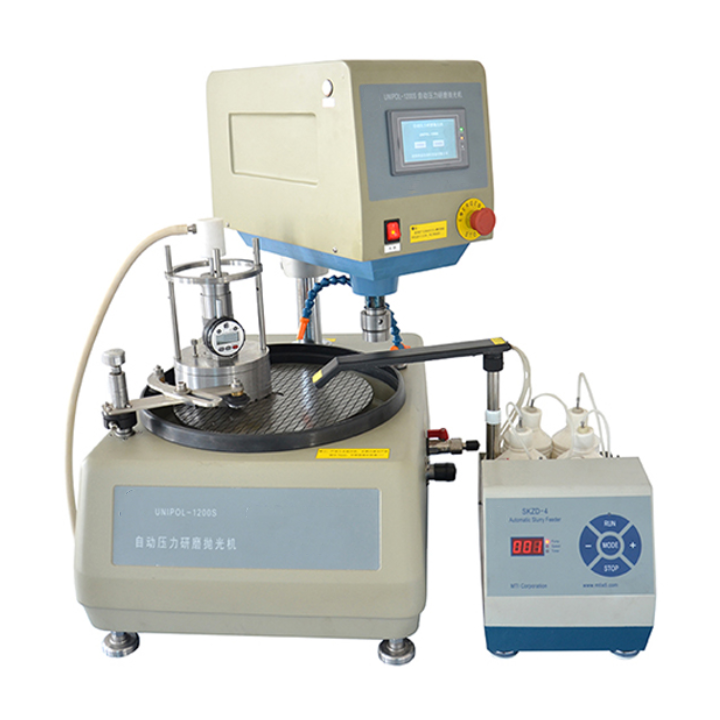

SKZD-4 Automatic dripper

(Optional)



4

SKZD-5 Dropper

(Optional)



5

YJXZ-12 Stirring circulating pump

(Optional)



6

Precision thickness gauge

(Optional)



7

GPC-80A Precision grinding and polishing control instrument

(Optional)



8

Ceramic grinding disc

(Optional)



9

Glass grinding disc

(Optional)



10

Magnetic resin diamond discs

(Optional)



11

Wax-free polishing disc

(Optional)



12

Peach hole carrier disc (φ105mm)

(Optional)



13

UNIPOL-1200S Pressure grinding and polishing machine special fixture

(Optional)
