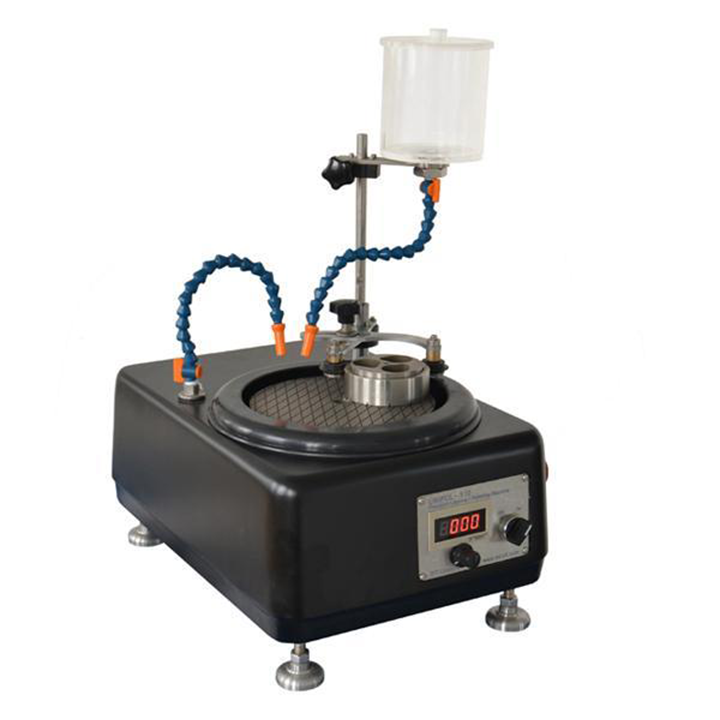

Lab Precision Grinding and Polishing Machine with Dripping Device
Product Description
UNIPOL-810 precision grinding and polishing machine is used for grinding and polishing crystals, metals, ceramics, glass, rock samples, mineral samples, PCB boards, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium and other crystals), refractory materials, composite materials and seals, such as optical components, compound semiconductor substrates, ceramic substrates, sapphire, yttrium vanadate, lithium niobate, gallium arsenide. This machine is equipped with peach-shaped hole loading disk, more convenient for inlaid or round metallographic sample grinding and polishing. UNIPOL-810 precision grinding and polishing machine can be manually grinding and polishing can also be controlled with a mechanical arm to carry the sample block for automatic grinding and polishing, grinding and polishing of samples in the direction of the unchanged, it is a can be used for multi-purpose grinding and polishing equipment.UNIPOL-810 precision grinding and polishing machine can be used to grind samples by means of a grinding disk with abrasives, or optional grinding discs with abrasives. UNIPOL-810 Precision Grinding and Polishing Machine can be used to grind samples with abrasives or with sandpaper attached to the polishing disk, which is easy to load and unload with magnetic adsorption of the sandpaper or polishing pads. The specific choice of sandpaper or abrasive grinding can be selected according to the material of the sample to be ground.
Main Features
1. Equipped with dripping device, which can realize automatic dripping of grinding liquid.
2. Stepless speed regulation, digital display.
3. Simple and quick operation.
4. Equipped with a pendulum arm, which can be used without manual grinding and polishing.
Technical Parameters
|
Product Name |
UNIPOL-810 Precision grinding and polishing machine |
|
Product Model |
UNIPOL-810 |
|
Installation conditions |
This equipment is required to be used at an altitude of 1000m or less, at a temperature of 25℃±15℃ and a humidity of 55%Rh±10%Rh. 1. Water: the equipment is equipped with upper and lower water ports, you need to connect their own tap water and drainage 2. Electricity: AC220V 50Hz, must have a good grounding 3. Gas：No 4. Working table: size 800mm×600mm×700mm, load-bearing 200kg or above 5. Ventilation device: not required |
|
Main Parameters |
1. Power：220V 2. Power：175W 3. Rotating speed of grinding and polishing disk: 20rpm-600rpm 4. Polishing disk：Ø203mm 5. Load plate: Ø80mm 6. Station: 1 7. Dropping material barrel volume: 0.85L |
|
Product specification |
Size: 500mm x 440mm x 550mm;
Weight: 45kg |
Standard Accessories
|
No. |
Name |
Amount |
Pictures |
|
1 |
Cast Iron Grinding Disk |
1 |
|
|
2 |
Aluminum alloy magnetic disk |
1 |
|
|
3 |
Carrier disk |
1 |
|
|
4 |
Trimming ring |
1 |
|
|
5 |
Peach Hole Carrier Disk |
1 |
|
|
6 |
Magnetic discs |
2 |
|
|
7 |
Abrasive Discs |
5 |
|
|
8 |
Sanding paper |
8 |
|
|
9 |
Polishing pads (Abrasive leather, synthetic leather, polyurethane) |
1 for each |
|
|
10 |
Diamond Polishing Paste |
1 |
|
|
11 |
Corundum Grinding Powder |
0.5kg |
|
|
12 |
Paraffin Rod |
4 |
|
Optional Accessories
|
No. |
Name |
Function Category |
Pictures |
|
1 |
SKZD-2 Drip Feeder |
(Optional) |
|
|
2 |
SKZD-3 Drip Feeder |
(Optional) |
|
|
3 |
SKZD-4 Automatic Drip Feeder |
(Optional) |
|
|
4 |
SKZD-5 Dropper |
(Optional) |
|
|
5 |
YJXZ-12 stirring circulating pump |
(Optional) |
|
|
6 |
Precision Thickness Gauge |
(Optional) |
|
|
7 |
GPC-50A precision grinding and polishing control meter |
(Optional) |
|
|
9 |
UNIPOL-01 TEM wedge grinding and polishing fixture |
(Optional) |
|
