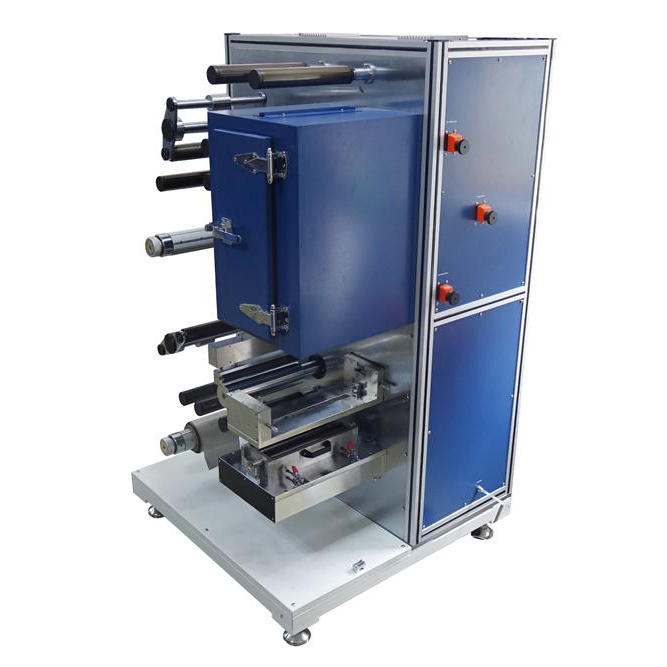

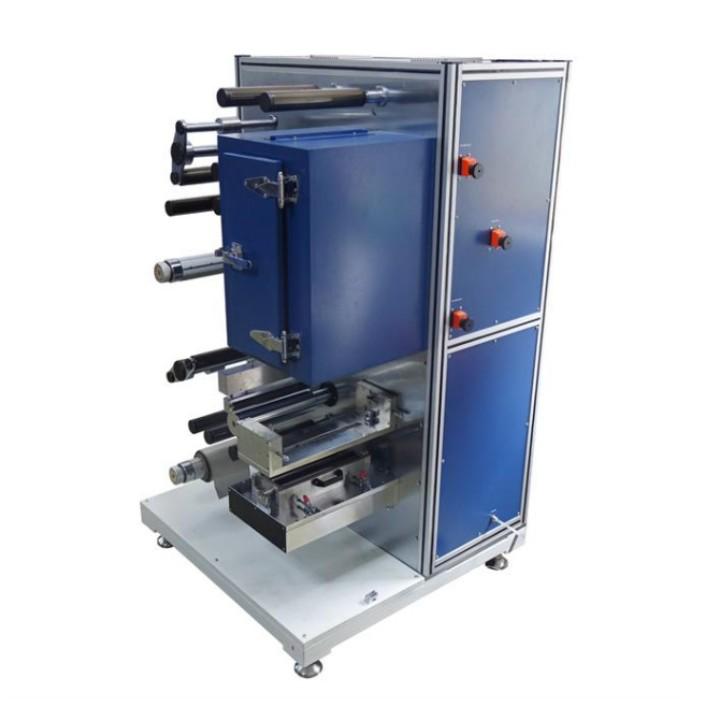

Lab Double Sides Dip Coating Experimental Coater Machine

Product Name: Double Sides Dip Coating Experimental Coater

MSK-AFA-DS300 double-sided dip-coating experimental coater is an experimental coater that uses a combination of dip-coating and wire rod metering. This machine adopts the traditional dip coating method to coat both sides of the substrate at the same time, and adopts the wire rod to measure the coating solution on the surface of the substrate separately, and rewinds after passing through the drying box. The equipment has simple structure, easy operation, high production efficiency and wide application range, which can be applied to lithium-ion battery, graphene film, ceramic film, high-end tape and various functional film industries.

Features:

1. Dip coating:

Can realize simultaneous coating on both sides

Surface coating requirements for special substrates can be realized

Automatic cassette circulation to ensure the working liquid level

Modular structure for quick removal/installation of cassettes

2. Measuring wire bar:

Standard bar, parameters can be customized according to customer requirements

Thickness measurement for both sides of the substrate at the same time

Modular structure, can quickly remove/install the wire rod

High precision scraper adjustment

3. Hot air drying oven:

Drying temperature adjustable, uniform temperature inside the box

Adjustable air volume size, thus adjusting the number of air changes

Closed-loop tension control of the substrate, stable belt walking, can achieve low tension belt walking

Equipped with winding correction function, easy to operate and high accuracy of correction

PLC control, HMI operation, convenient and easy to use

Optional solvent recovery device MSK-NMP-1

Standard with KTQ-80F sampler, fast online sampling and measurement.

Technical parameters：
