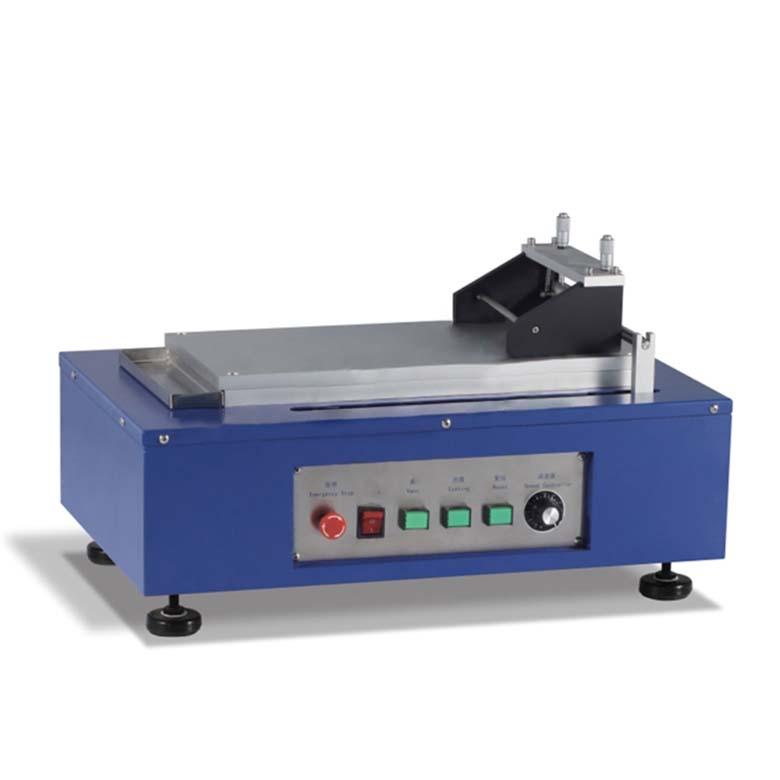

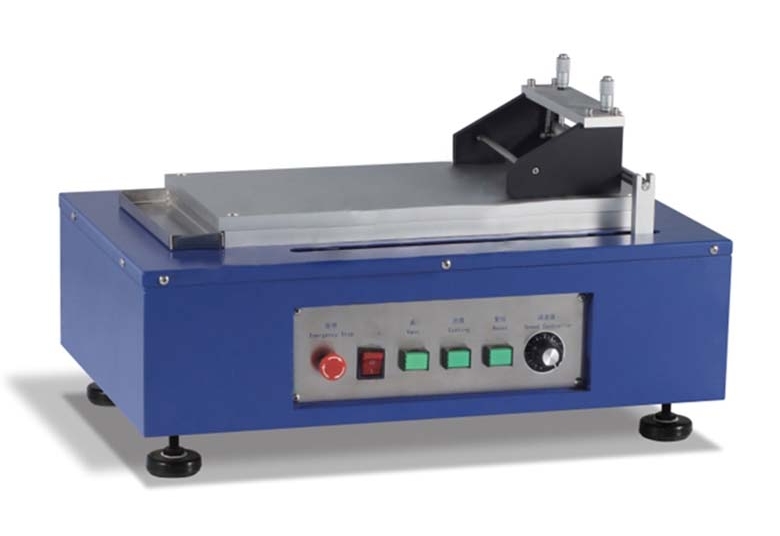

Lab Automatic Doctor Blade Battery Film Coating Machine

with Built-in Vacuum Pump

Product Name:  MRX-TM300

The automatic coating machine is widely used in various coating researches, such as ceramic thin films, crystal thin films, battery material thin films, and special nano thin films. Adjust with a micrometer to achieve the desired film thickness. The instrument is equipped with a precise adjustable membrane device, and the moving push rod pushes it to move at a constant speed, so as to achieve the uniformity of slurry coating on the substrate. This equipment is especially suitable for making battery substrates, which can ensure that the substrate The positive/negative electrode material density is uniform at each part of the sheet.

Features:

a. Coating speed is adjustable within the range of 0-150mm/sec;

b. Vacuum aluminum plate, can quickly place or remove the substrate;

c. The stroke can be adjusted from 0 to 300mm;

d. With a micron-level adjustable film applicator (scale 10um), a scraper with a width of 100mm;

e. Small size, saving space;

f. Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful;

 Technical parameter:

a. Coating speed: 0～100mm/sec;

b. Coating film width: 0 ~ 150mm (customizable)

c. Stroke: 300mm;

d. Coating film thickness accuracy: ±3um

e. Vacuum plate: with vacuum aluminum plate (to facilitate the adsorption of substrates)

f. Built-in vacuum pump;

g. Vacuum plate size: L410mm×W200mm×H30mm;

h. Scraper adjustable range: 0 ~ 3.5mm;

i. Power supply: 220V/50Hz;

j. Weight: 48KG;

k. Dimensions: L549mm×W305mm×H335mm;
