• 110 V or 208 - 240V AC selectable
• 50/60Hz
• 1000W

• Vacuum chuck made of Aluminum alloy with < 1.0 mm hole

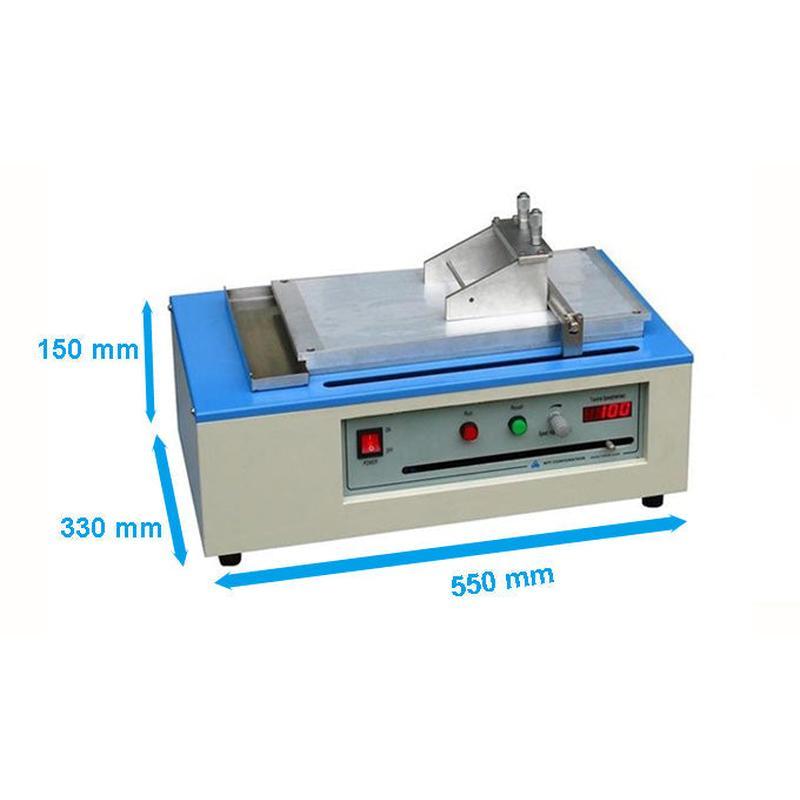

• Vacuum Chuck Dimensions: 200 mm(W) x 365 mm(L) (8"W x 14"L)
• The chuck is heated up to 120C by a digital temperature controller with +/- 1ºC accuracy
• One vacuum pump is required, but not included please order separately.
• One glass plate is included to coat slurry on a porous substrate, which can be sucked by vacuum chuck
•
  optional)
• Moving Speed: One pushing bar is included for moving film applicator at speed of 10 - 100 mm/sec variable
• Moving Length: 10 - 350 mm adjustable by Adjustable Position Switch

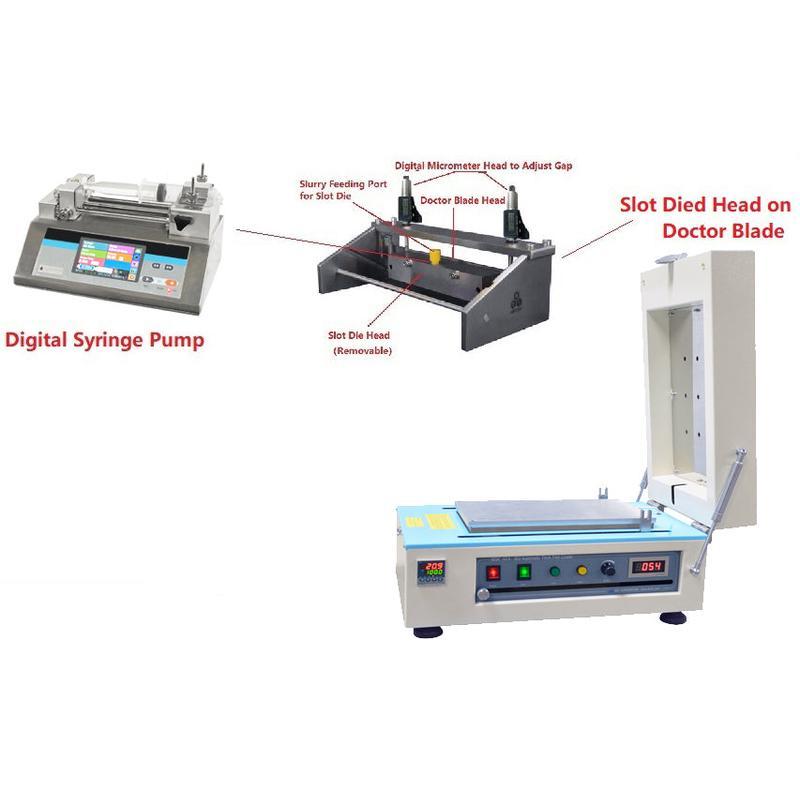

Hybrid Coating Head

• Film coating head consists of one fixed 150 mm width doctor blade and one 100 mm width removable slot die head.
• The gap between the coating blade and the substrate plate is adjustable with +/- 1-micron accuracy via dual digital micrometers.
• Doctor blade: 150 mm width for minimum thickness of 0.010 mm film
• Slot die: 100 mm width for minimum thickness of 0.005 mm film
• Click the picture below right to order a spare slot die head with various width

 Digital Syringe Pump

• Digital syringe pump with a easy to use control panel screen is included for slot-die coating
• Holds small or big syringes up to 200 mL and remembers previous settings on power-up
• Pumping rate: 1.963μL/min with a 10 μL syringe and 294.524mL/min with a 200mL syringe
• The movement speed of the plunger: 15cm/min (Max) 0.0001cm/min (Min)
• Multiple operating modes: Infuse only, Withdraw only, Infuse/Withdraw, Withdraw/Infuse, Continuation

• In order to achieve better coating by the slot die, slurry's Viscosity and dispersion are very important.
• Please click picture 1 to order the Viscosity meter and dispersing machine (Pic. 1) and find the best parameter for your coating (Pic.1)
• Multi-channels heatable syringe pump (Pic. 2)

 Pic. 1     Pic. 2

• CE certified
• NRTL or CSA certification is available upon request at an extra cost
