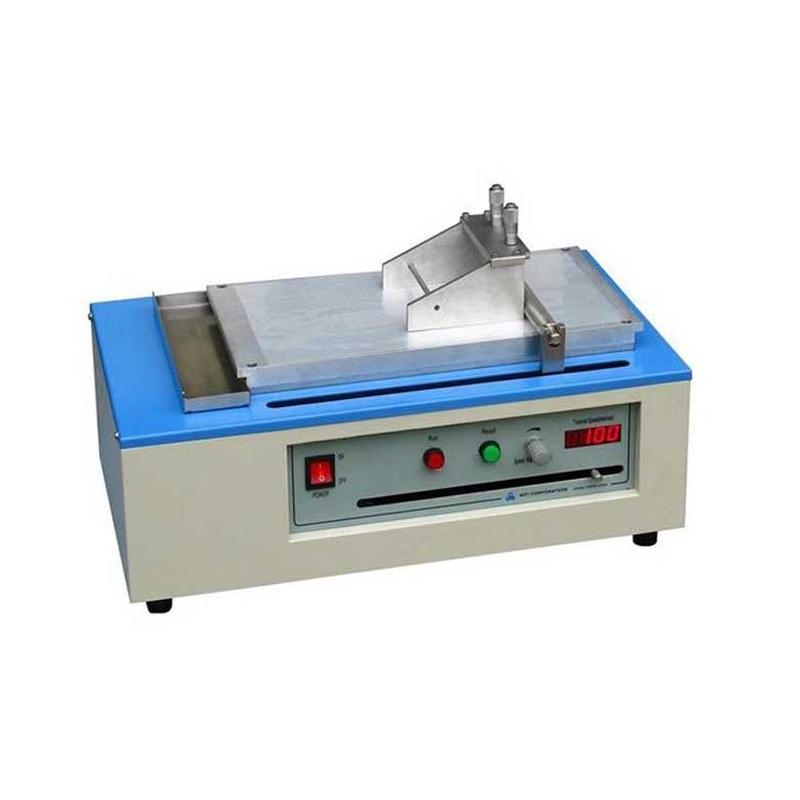

MSK-AFA-I

MSK-AFA-III-HB

MSK-AFA-III-110/220

MSK-AFA-III-HB
-UV-110/220

MSK-AFA-IIIT-HBT

No Heating

Bottom Heating 110/ 220VAC 850W 120ºC

Top Heating
1.2KW, 100ºC

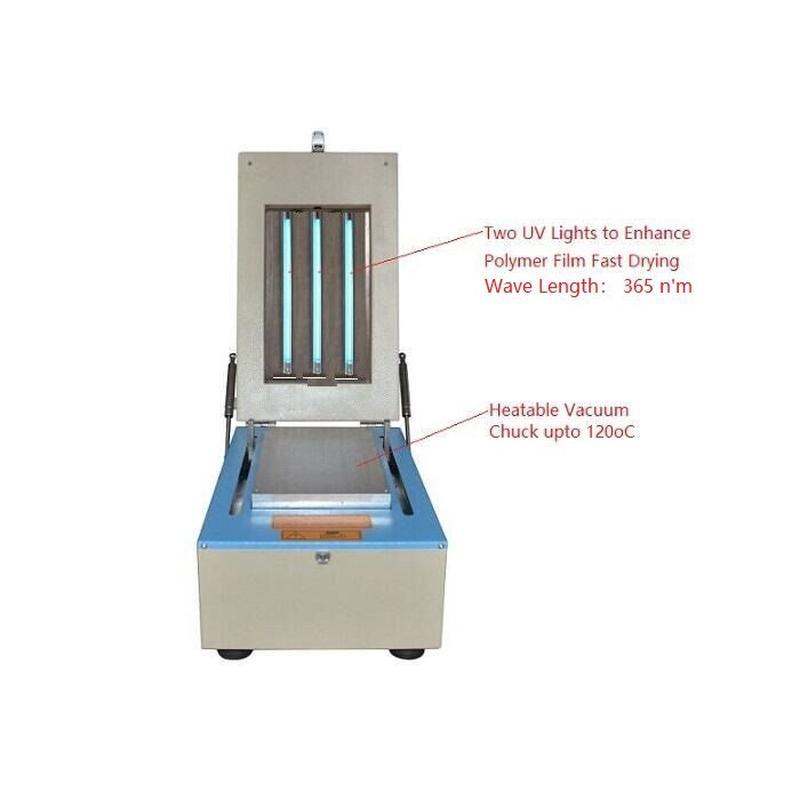

Top UV (WL: 365nm)
Bottom Heating, 1kW, 120ºC

Top and Bottom Heating
110/220V, 2.3 kW, 120ºC

• Power adaptor: Input 100-240VAC, Output 24VDC

• 10 - 100 mm/sec variable
• Accuracy: ± 5-10 mm/sec

• Standard Package: 320mm(L) x 100mm(W) due to the width and occupied area of the 100mm applicator
• Suggested Maximum: 350mm(L) x 180mm(W) Reduced width to avoid slurry spilling off the vacuum bed
• Length 10 - 350 mm adjustable by using Adjustable Position Switch

• Vacuum chuck made of Aluminum alloy with ~ 1.0 mm hole and hole distance of ~14.3 mm

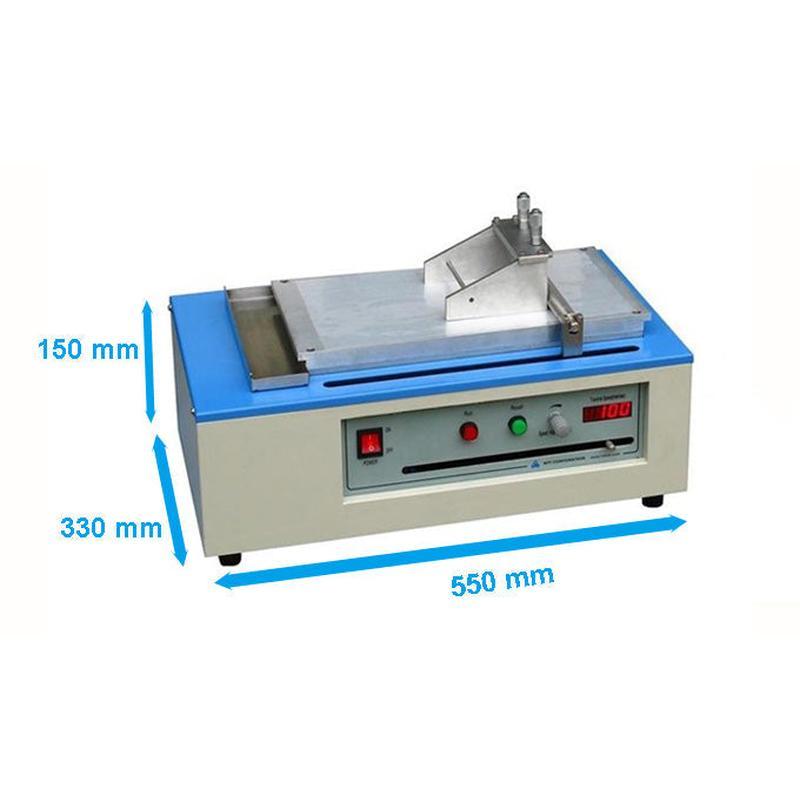

• Vacuum Chuck Dimensions: 365mm(L) x 200mm(W) 14“L x 8"W )
• Note: You may order a glass plate to coat slurry on a porous substrate at the link below

• Maximum: 350mm(L) x 180mm(W) Reduced width to avoid slurry spilling off the vacuum bed
• Length 10 - 350 mm adjustable by using Adjustable Position Switch

• One 100 mm width micrometer adjustable film applicator is included (thickness adjustable from 0.01 - 3.5 mm)
• For coating film less than 10 microns, please order a fixed thickness coating bar (click Pic left-1 below)
• Travel Pusher and waste plates are included for pushing the Film Applicator (see pic below-middle)
• Please click here to find Film Applicators with different widths at extra cost

Note: Thinnest film that can be achieved is > 10 microns

• NO vacuum pump is included. You may use your own pump or select a pump in the optional bar.
• You may order a 120L/min Oilless Vacuum Pump

• The vacuum control power switch is located on the front panel, and the power plug ( female ) is built into the back of the machine to connect an optional vacuum pump
• The pump connector is a compression-type 8mm O.D tube fitting which is located on the back panel (see pic below). An 8mm Dia. x 4ft polyurethane tube is included

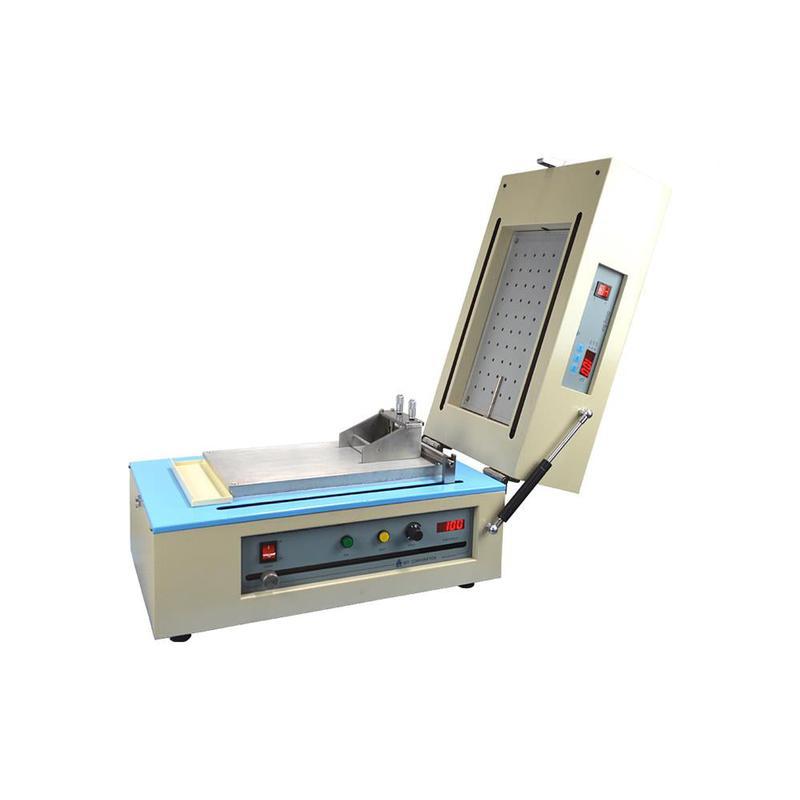

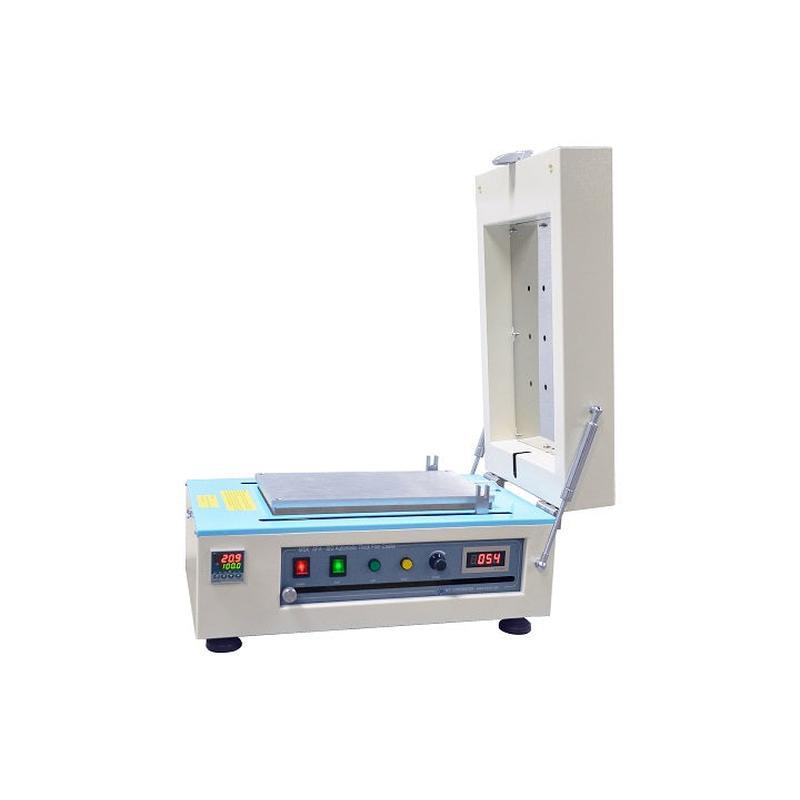

• Pre-installed on the top cover
• Built-in digital temperature controller with an accuracy of +/-1°C
• Suspension support helps open the cover easily and safely
• Max. Heating Temp.: 100°C
• Note: In order for faster and uniform heating, please preheated the vacuum chunk to 60- 70°C before coating, and keep heating during coating, then close the cover and increase the temperature to ~100°C after coating

• Power: 8W
• Lamp Diameter: 15.5mm
• Lamp Length: 287mm
• Service Life: 3000 hours

• CE Certificate
• NRTL or CSA certification is available upon request

• Pic.1 and 2 show coated cathode and anode for Li-Ion batteries. Please click here to see how to
• It is recommended to operate the coater under a fume hood. (Click Pic.3 for detail.)
• May need a vacuum mixer to remove air bubbles inside slurry to make uniform coatings (Click Pic.4 )
• You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail.)

Pic.1    Pic.2    Pic.3

Pic. 4    Pic.5
