Ultrasonic Spray System For Nano Film PEM Fuel Cell & Solar Panel Coatings

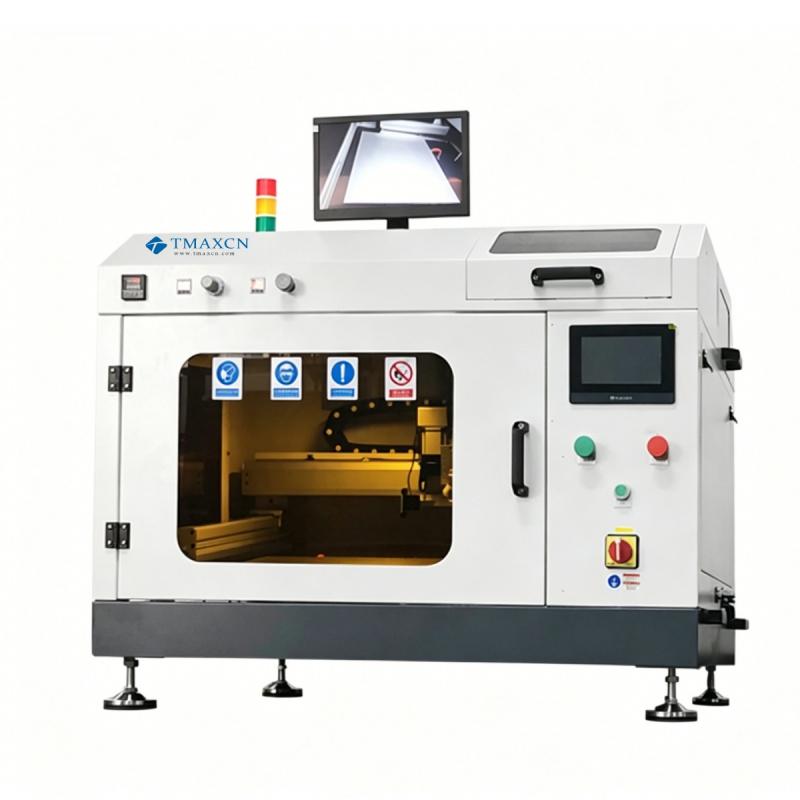

The CF07 Advanced ultrasonic intelligent coating equipment incorporates cutting-edge technology to achieve highly uniform, ultrathin, and precisely controlled film deposition, with real-time process monitoring via a teaching pendant. It is widely applied in fuel cell proton exchange membrane coating, thin-film solar cells, nanomaterial modification, glass coating, and other industries.

Key Features
Equipped with advanced ultrasonic technology, this system delivers superior film uniformity, minimal thickness, and exceptional process control, with real-time monitoring via a laser-guided teaching system. It integrates multiple subsystems: ultrasonic atomization, carrier gas, heated stage, vacuum adsorption, exhaust emission, and a laser alignment system. Compatible with a full range of ultrasonic nozzles, the system supports small-to-medium area thin-film fabrication and spray pyrolysis applications, making it ideal for precision coating processes.

Primary Applications:

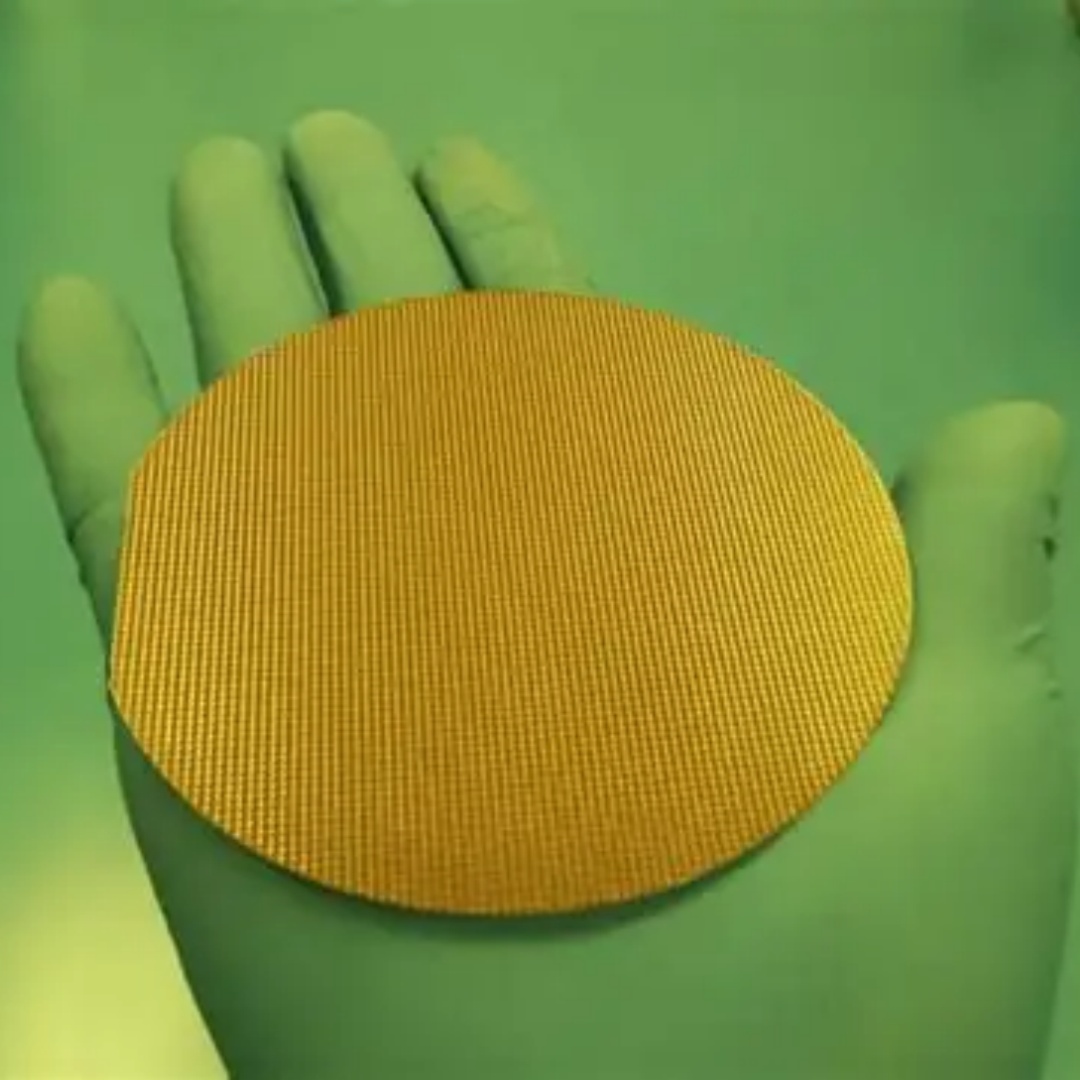

· Fuel cell proton exchange membrane coating

· Thin-film solar cells

· Nanomaterial modification

· Glass coating

Advantages:
✔ Suitable for R&D and small-batch production
✔ Compact benchtop design for easy mobility
✔ Material utilization rate up to 95%
✔ High coating uniformity (±5% deviation)
✔ Effective coating area: 400mm × 400mm

Target Industries:

· Electronics

· New Energy

· Biomedical

· Glass

· Textiles/Nonwovens

· Nanotechnology
