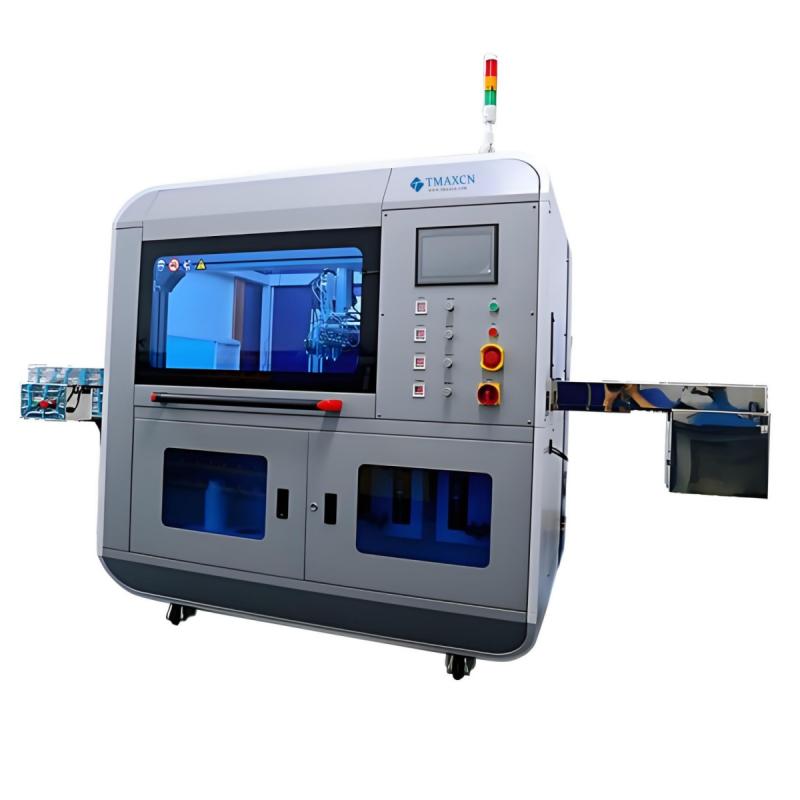

Industrial Conveyorized Multi-Nozzle Ultrasonic Spray Coating System For Nanoscale Film Deposition

Key Specifications

✔ Proprietary Ultrasonic Nozzle – Adjustable droplet size & spray width
✔ High-Precision Deposition – >95% coating uniformity

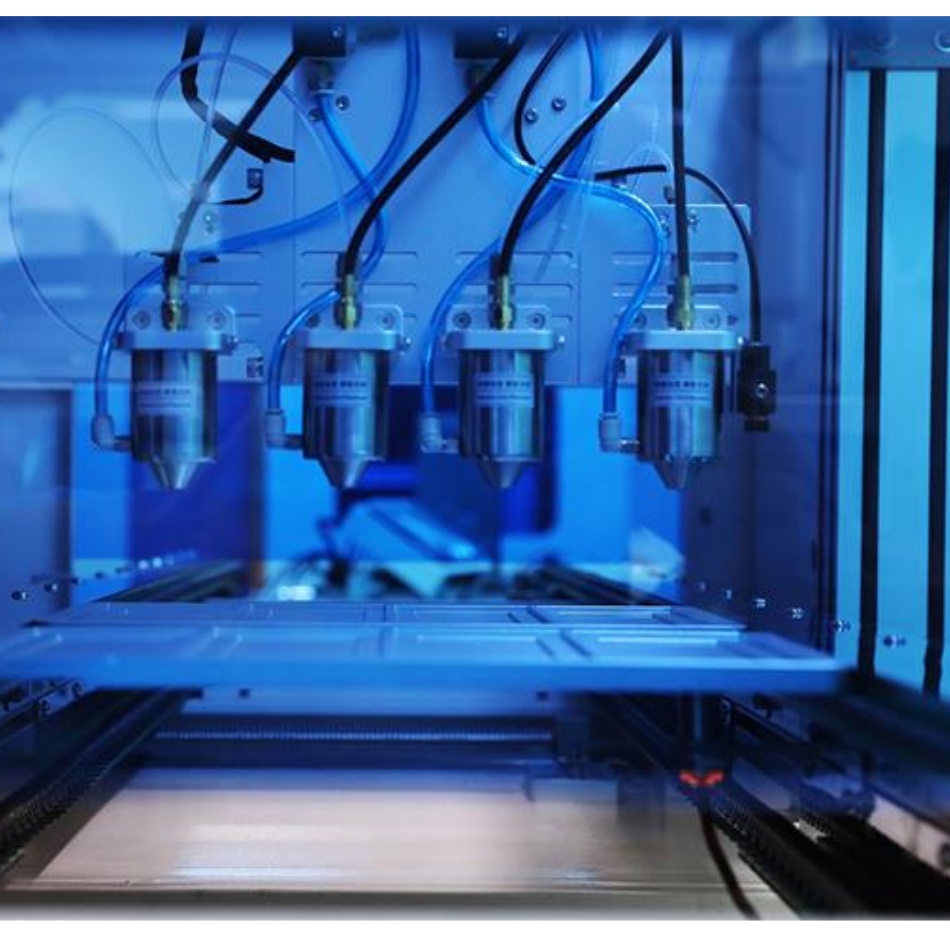

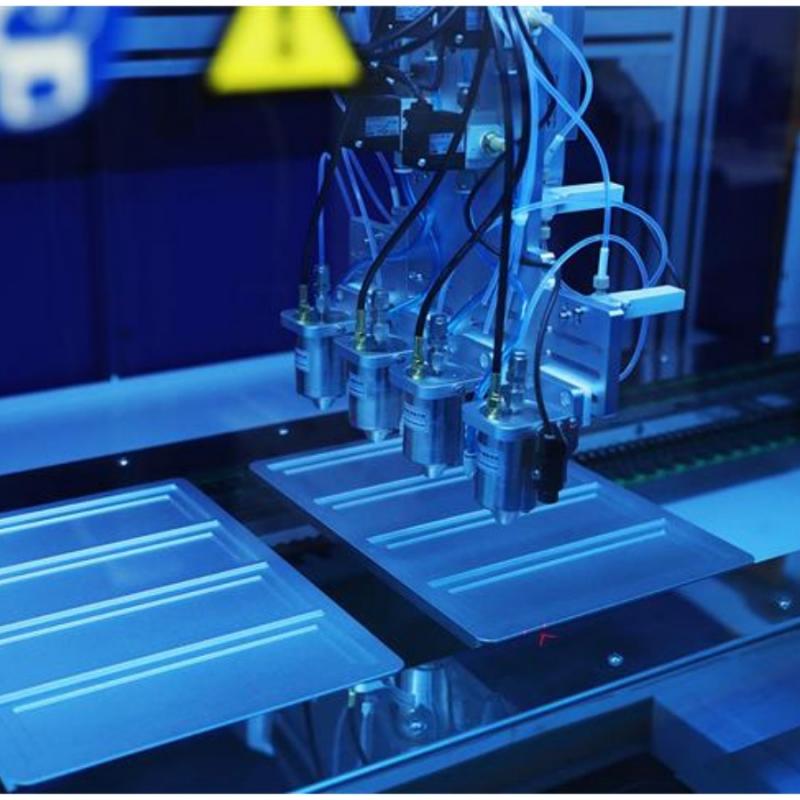

✔ Multi-Nozzle Array Support – Scalable for high-speed production
✔ Automated Conveyor System – Continuous substrate feeding
✔ XYZ 3-Axis Servo Motion – Precision trajectory control
✔ Constant-Flow Feeding – 24/7 stable liquid supply

System Overview

A fully automated ultrasonic spray coater with substrate conveyance, supporting wide-spray nozzles and parallel multi-nozzle operation. Features a precision metering pump for uninterrupted production, ideal for high-volume coating of large-area thin films.

Optional: Heated substrate platform for temperature-controlled deposition.

Advantages Over Conventional Spraying

✔ 4× Higher Efficiency – Ultra-low waste, reduced costs
✔ No Clogging – Low maintenance, long nozzle lifespan
✔ Non-Pneumatic – Smooth operation without compressed air

Applications

◉ Solar Energy – Perovskite/organic PV cells, transparent conductive films
◉ Biomedical – Biosensors, drug-eluting coatings
◉ Microelectronics – Wafer photoresist, PCB flux
◉ Optical Coatings – AR films, hydrophobic/thermal layers
◉ Smart Textiles – Waterproof, antimicrobial treatments

Advanced Features

· Touchscreen HMI – Intuitive control & real-time monitoring

· High-Precision Valves – Imported regulators for stable flow

· Built-In Exhaust – Fume extraction for clean operation

· Anti-Sedimentation – Optional ultrasonic dispersion for suspensions

· Auto-Cleaning – Nozzle maintenance after each cycle

Why Choose This System?

`Versatile – Handles nano/micro coatings on diverse substrates
