Ultrasonic Pyrolysis Spray Coater Coating Equipment For OLED, Graphene & Semiconductor Films

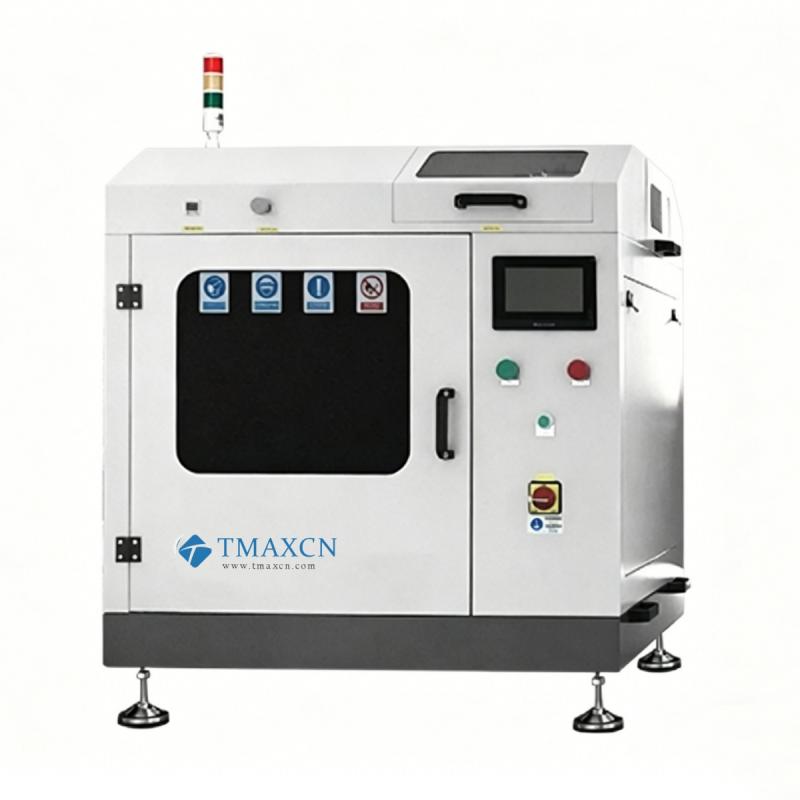

The CF04 High-Temperature Ultrasonic Spray Coating System is a precision R&D ultrasonic spray coater, featuring:

· XYZ servo motion system

· Liquid delivery pump

· Optional vacuum heating plate
Fully customizable ultrasonic nano-particle spray equipment tailored to process requirements (e.g., spray particles, volume).

System Overview

The CF04 integrates the latest global spray and control technologies:

· Desktop ultrasonic spray system with modular components:

o Nozzle options: Focused, wide-spray, or scattered ultrasonic nozzles.

o Accessories: Precision metering pump, carrier gas controller, base heating plate, vacuum chuck, exhaust system.

· Ideal for: R&D labs and small-area thin-film production.

Technology Advantages:

· Ultrasonic high-frequency oscillation generates uniform micron-sized droplets.

· vs. Traditional Two-Fluid Nozzles:

Target Industries

· Electronics

· New Energy

· Biomedical

· Glass

· Textiles/Nonwovens

· Nanotechnology

Features & Specifications

Key Features

· Uniform, high-efficiency spraying (film thickness down to tens of nanometers).

· Precise flow control (operates at ultra-low flow rates).

· High thickness accuracy.

· >95% liquid utilization rate.

· Clog-resistant nozzles.

· Compact benchtop design (portable).

· Suitable for both R&D and production.

· Highly repeatable results.

Technical Parameters

*Note: Spray area customizable upon request.
