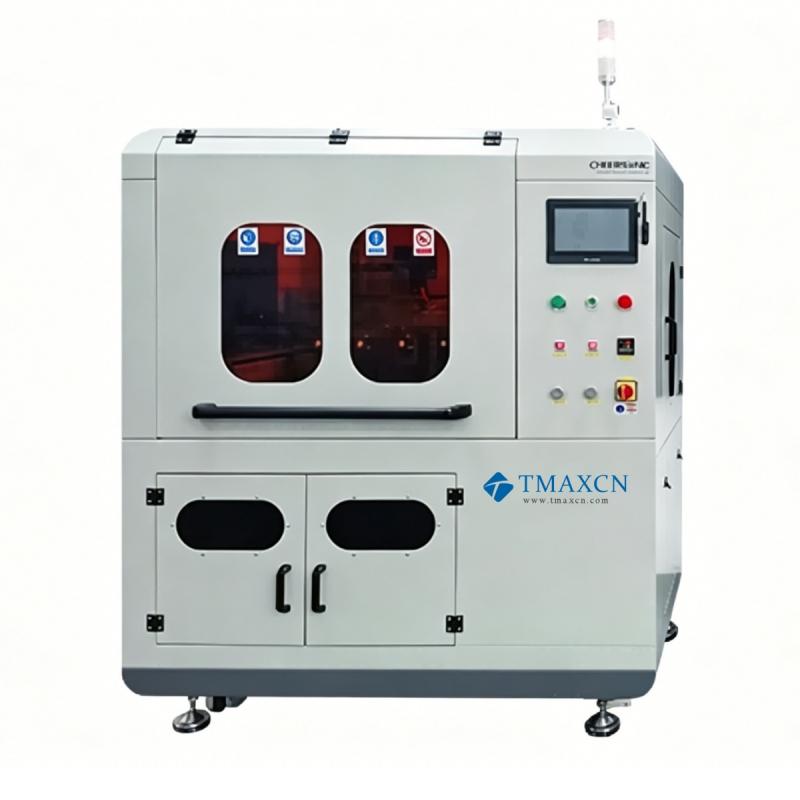

Ultrasonic Nozzle Spray Coating Machine Equipment Unit for Solar Cell
The CF08 is an industrial-grade coating system designed for small-to-medium batch production. Utilizing nationally patented ultrasonic spraying technology, it produces uniform and dense thin film coatings while being applicable for spray pyrolysis. Widely adopted across energy, nanotechnology, microelectronics, semiconductor, and glass coating industries.
System Overview
The CF08 is an industrial-grade coating system tailored for small-to-medium batch production. It employs patented ultrasonic technology to deposit uniform, dense thin films and supports spray pyrolysis applications. Configurable with single or multiple spray heads, its customizable design ensures adaptability across diverse industries.
Key Advantages
• Ideal for R&D and small-batch production
• Compact benchtop design with easy mobility
• Material utilization rate up to 95%
• Highly consistent coatings with ±5% uniformity
• Effective coating area: 500mm × 500mm
Target Industries
• Electronics
• New Energy
• Biomedical
• Glass
• Textiles/Non-wovens
• Nanotechnology
Features & Specifications
|
Category |
Description |
|
Uniform Deposition |
Delivers highly uniform and efficient thin film coating |
|
Flow Control |
Precision flow regulation enables ultra-low volume spraying |
|
Thickness Accuracy |
High-precision thickness control capability |
|
Material Utilization |
>95% liquid material utilization rate |
|
Nozzle Performance |
Clog-resistant spray head design |
|
Solution Compatibility |
Processes both homogeneous solutions and suspensions |
|
Application Scope |
Supports R&D prototyping and production-scale coating |
|
Process Control |
Highly repeatable spraying for consistent results |
Technical Parameters
|
Parameter |
Specification |
|
Dimensions |
1600 (L) × 1000 (W) × 1850 (H) mm |
|
Coating Area |
Standard 500 × 500 mm (Customizable upon request) |
|
Power Supply |
120V/220V ±10%, 50-60Hz |
|
Nozzle System |
Configurable with multiple ultrasonic nozzle options |
|
Liquid Delivery |
Multiple feeding systems available (peristaltic/syringe/pressure-based) |
|
Control Interface |
7-inch touchscreen HMI |
|
Certifications |
CE, FDA compliant |
