Roll-to-Roll Electrospinning System with Syringe Pump and Heated Bed

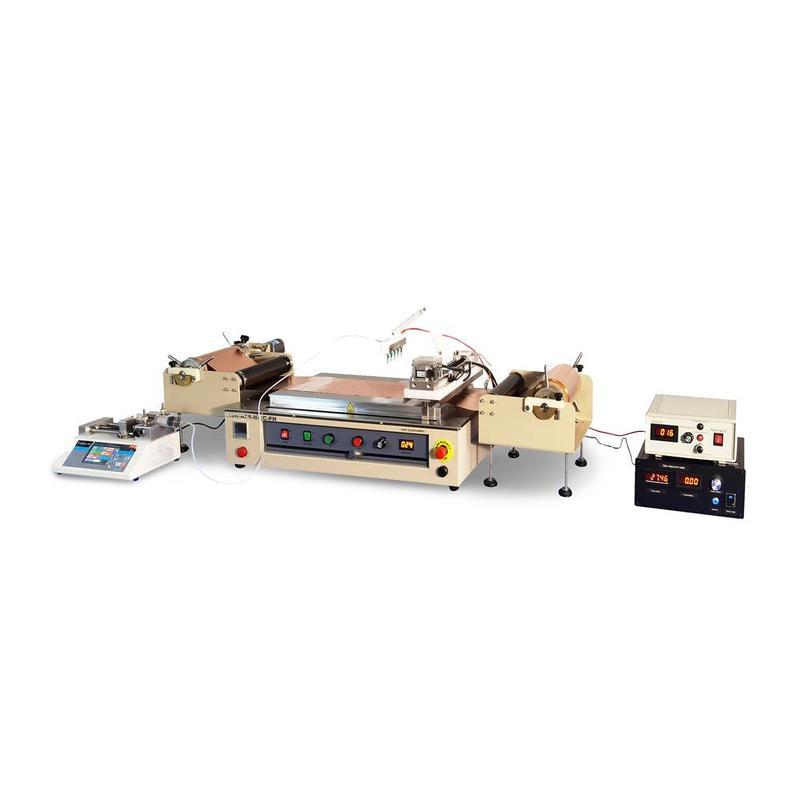

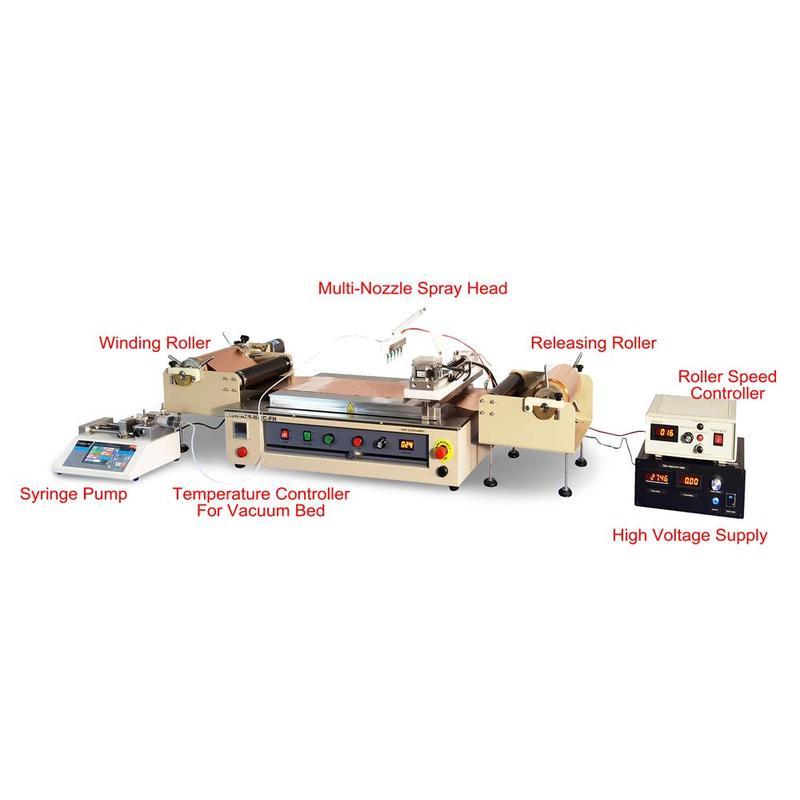

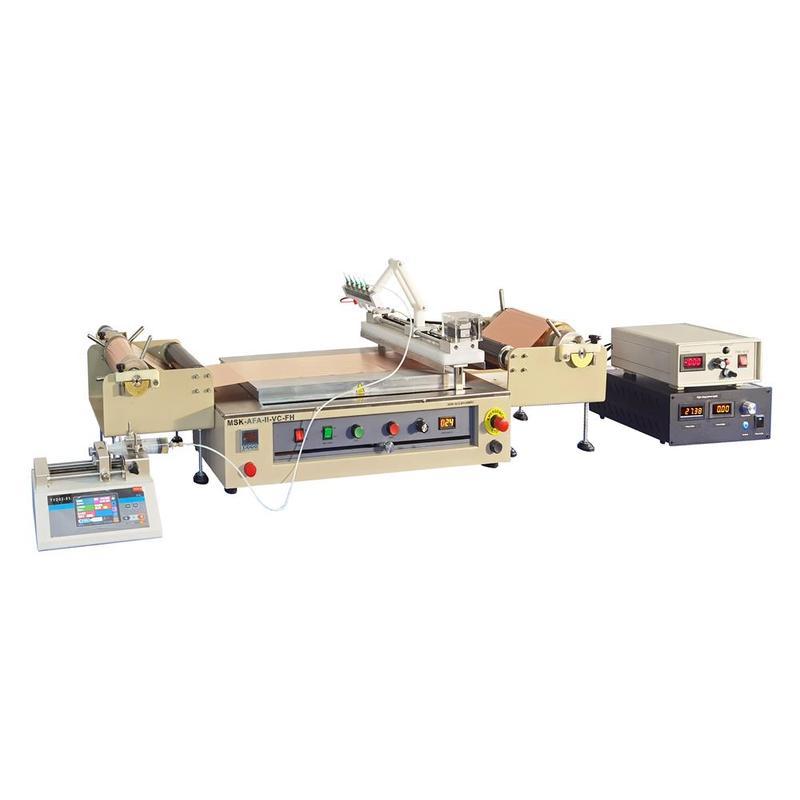

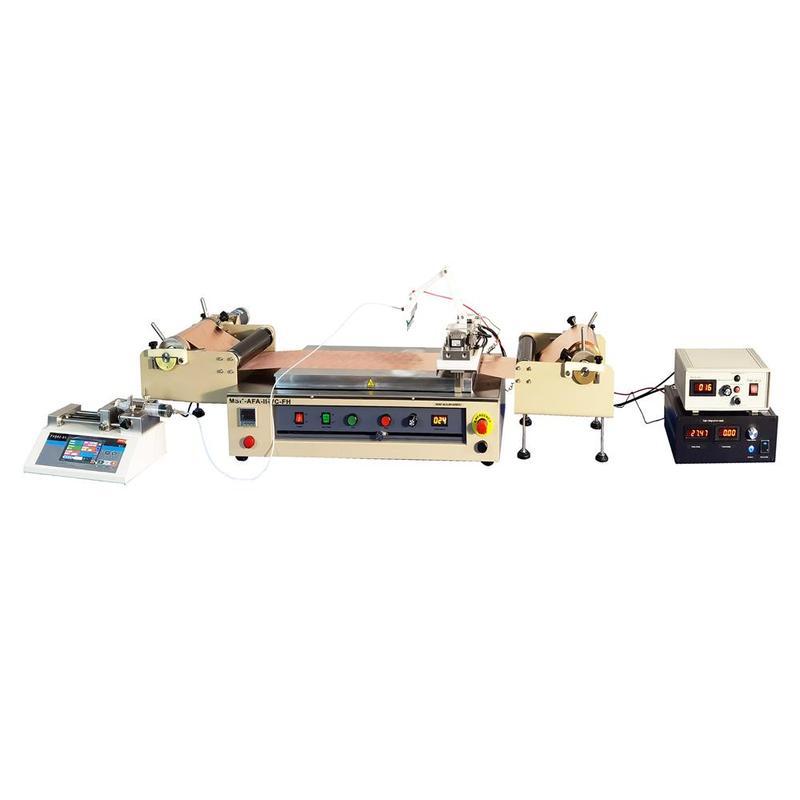

MSK-ESC-R2R is a bench-top electrospinning system with automatic R2R substrate feeding and retrieving unit. The syringe pump provides a smooth and uninterrupted flow enabling uniform spinning. The high voltage power supply delivers a 0-30 kV output voltage range with a maximum current capacity of 1 mA. Heatable vacuum bed assists coating bake-out before collecting. Such a system provides an attendant workflow for nanofiber spinning, coating bake-out, and collecting.
SPECIFICATIONS
Features

|
-
Linear configurated 5 syringe needles ensure uniform coverage over up to 160mm width
-
Automatic roll to roll system with precise rolling speed control
-
Heating bed up to 100C for coating bake-out
-
The syringe pump provides constant streamflow of polymer-based solutions
-
Single voltage supply cable minimizes the repulsion of the jets between the spraying heads
-
Removable spraying heads accommodate various coating widths
|
Spraying Head (Needle) and Supporting Stand

|
-
Hight and position adjustable supporting stand
-
Removable Spraying Heads (up to 5 needles)
-
Single Voltage input cable minimizes the repulsion of the jet between the needles
-
Distance between each needle: 25mm
-
5 sets of needles are included (22Ga, 23Ga, 25Ga, 27Ga, 30Ga)
-
5 needles per set
|
High Voltage Power Supply
|
-
0 - 30 kV single output, 1 mA max current
-
Digital voltmeter and current meter
-
Output voltage and current can be set by using knobs on the front panel and read from the digital display
-
Constant current / constant voltage modes available
-
AC 110- 240V, 50/60Hz, 30W max power consumption
-
24 VDC input for HV device and safe use
-
Dimension: 300mm (L) x 270mm (W) x 120mm (H)
|
Digital Syringe Pump
|
-
Digital syringe pump with a easy to use control panel screen is included for slot-die coating
-
Holds small or big syringes up to 200 mL and remembers previous settings on power-up
-
Pumping rate: 1.963μL/min with a 10 μL syringe and 294.524mL/min with a 200mL syringe
-
The movement speed of the plunger: 15cm/min (Max) 0.0001cm/min (Min)
-
Multiple operating modes: Infuse only, Withdraw only, Infuse/Withdraw, Withdraw/Infuse, Continuation
|
Heatable Vacuum Bed
|
-
Vacuum Bed (chuck) for holding the substrate in flat with dimension: 600mm (L) x 300mm (W)
-
Vacuum Bed is heatable up to 100ºC for solution drying
-
PID temperature controller with the precision of +/- 1C
-
208 - 240 VAC, single phase, 50/60Hz
-
2000W Max Power
|
Roll to Roll System

|
-
Compact roll to roll system up to 200mm width
-
Motor rpm (Controller display) Range: 1 ~ 41 rpm
-
Gear Head's reduction ratio: 100k
-
Actual substate traverse speed range: 2.2 mm/s ~ 117.2 mm/s
-
110 VAC
|
Dimension
|
-
Heatable vacuum bed with the roll to roll system and the stand
-
Total dimensions: 805mm (L) x 435mm (W) x 565mm (H)
-
The height of the vacuum bed: 180mm
-
The height of the needle holder: 385mm
|
Sample Display
|
-
The picture below is the result of the electrospinning coating experiment conducted by MTI using the mixture of PVDF and DMAC with a weight ratio of 1:20.
|
|
Warranty & Compliance
|
-
One-year limited warranty with lifetime support
-
CE certified
-
NRTL certification is available upon request
|
|
Optional
|
-
You need to place the system into a fume-hood to protect environmentally
-
|
|
