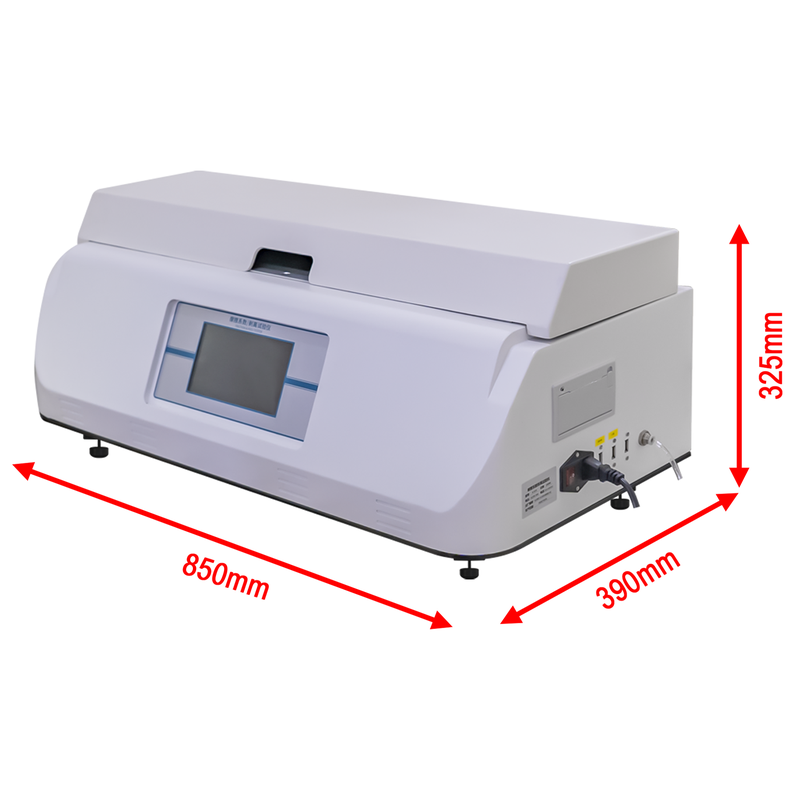

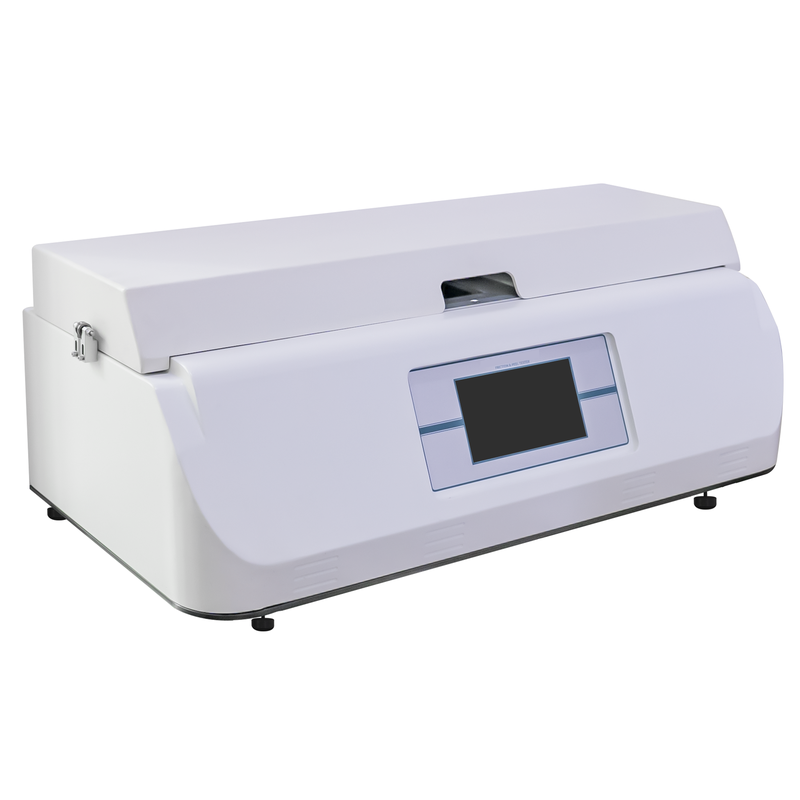

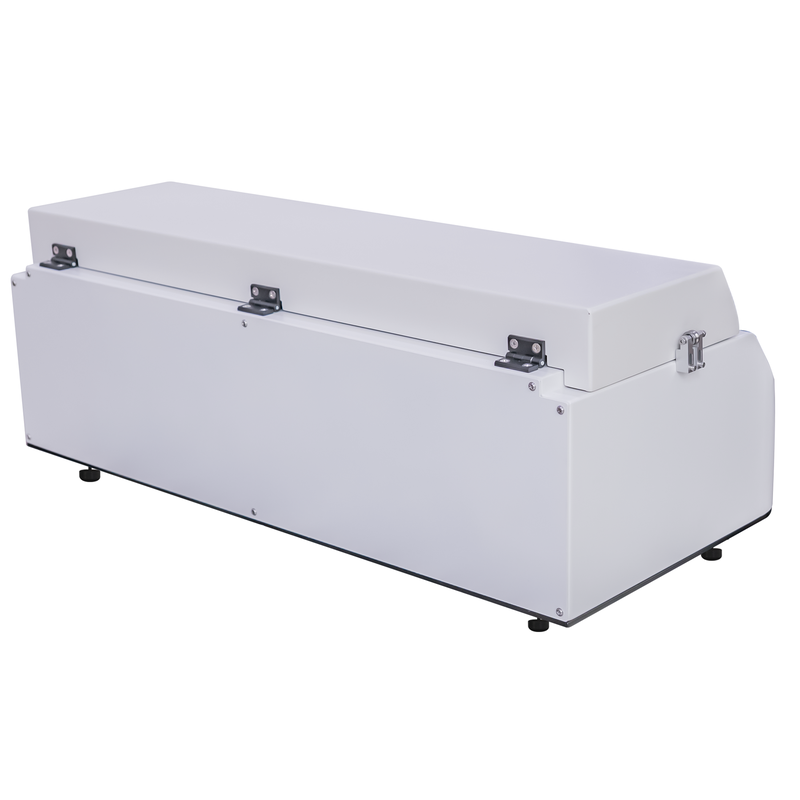

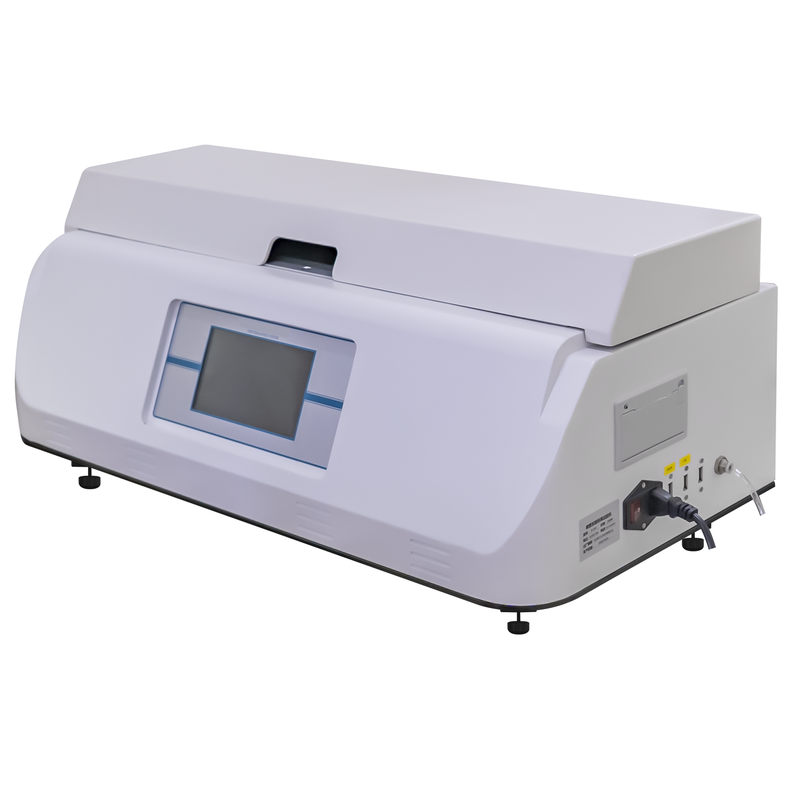

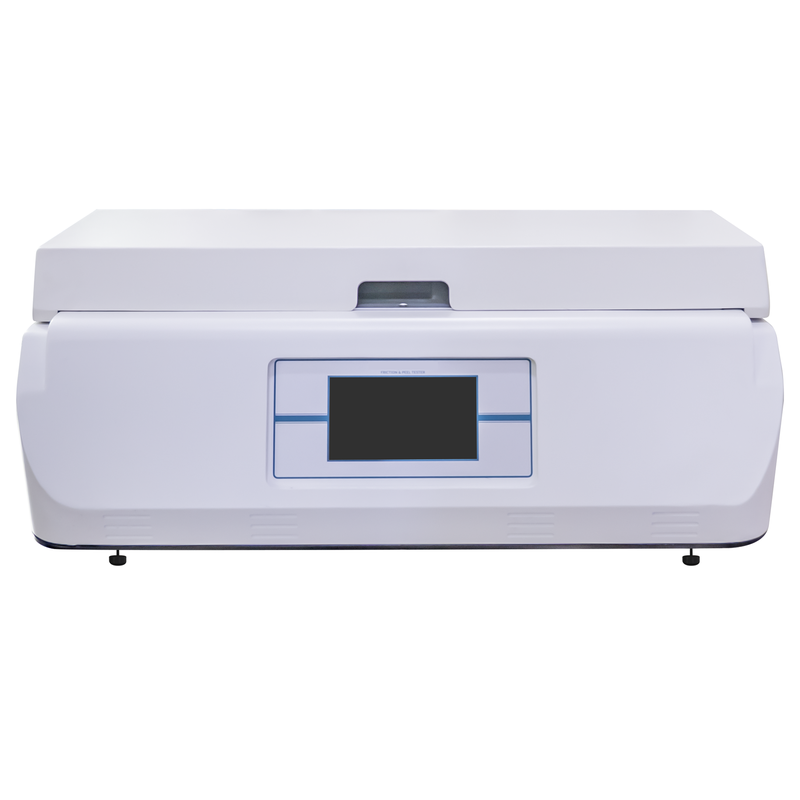

Peel Adhesion Tester for Battery Electrodes

MSK-TE602-PS is lab-scale peel strength tester for battery electrodes or other thin-films. It equips a temperature control unit to enable testing under different temperatures.

SPECIFICATIONS:

Power Requirement	AC220V ±10%, 50Hz/60Hz, single phase 200W
Test Mode	Coefficient of Friction Test Peel Strength Test
Loading Range	0-5 N 0-10 N 0-30 N
Accuracy	0.5 class
Sliding Block Mass	Standard block with 200 g (other mass of 100 g, 500 g, 1000 g, 1814 g, and 2000 g are available upon request )
Testing Speed	1-600 mm/min
Testing Temperature	RT-99.9 ℃
Compliance	CE approval NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.
