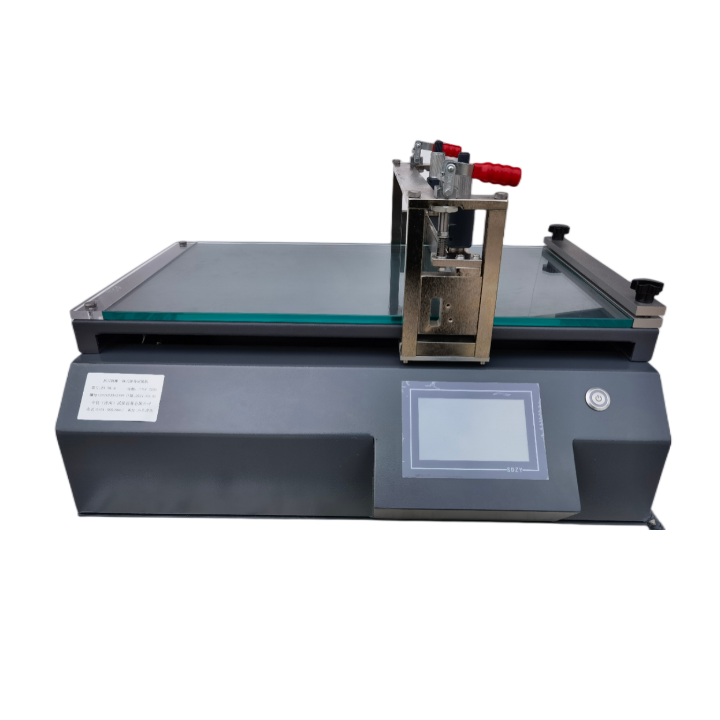

Lab Wire Bar Plane Coating Tester Coater with Stainless Steel Doctor Blade

Contact Person:Gilia Ding


Tel:+86 177 5900 4070
Whatsapp: +86 177 5900 4070

  • Brand:

  • Item no.:

  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab Wire Bar Plane Coating Tester Coater with Stainless Steel Doctor Blade


The ZY-TB-B1 wire bar and doctor blade coating tester is designed to ensure the uniformity and smoothness of the coating by controlling the speed and the stable pressure of the coating.


Product Description

As the main factors affecting the coating are the speed of application and the pressure applied to the applicator, there are often inconsistencies in the coating applied by hand, especially from person to person, which makes it difficult to compare test results between samples. Our automatic film applicator has been carefully designed to make it easy for the operator to apply accurate wet films on different substrates, greatly improving the repbarucibility of the coating.

Controlled speed and constant pressure ensure uniformity and smoothness of application.

The most important feature of the laboratory mini coater is that it can be used for coating experiments on a wide range of materials such as paper, plastic, metal, PVC, PET, fabric, aluminium alloy sheets and other flat surfaces.


Technical parameters

Doctor blade accuracy: 0.003mm wire bar coating accuracy: 0.001mm (thickness can be changed according to the type of wire bar)

Coating thickness: 0-5mm doctor blade can be lifted

Speed: 2-180mm/sec (infinitely variable)

Coating width: 300*400mm

Coating time: digital display, different lengths, different speeds, time precision control

Doctor blade: material / stainless steel (digital display control micrometer set thickness)

Electricity source: voltage 220V 50HZ

Power: 120W

Machine volume: 620*430*450 (L*W*H)

Machine weight: net weight 52KG
