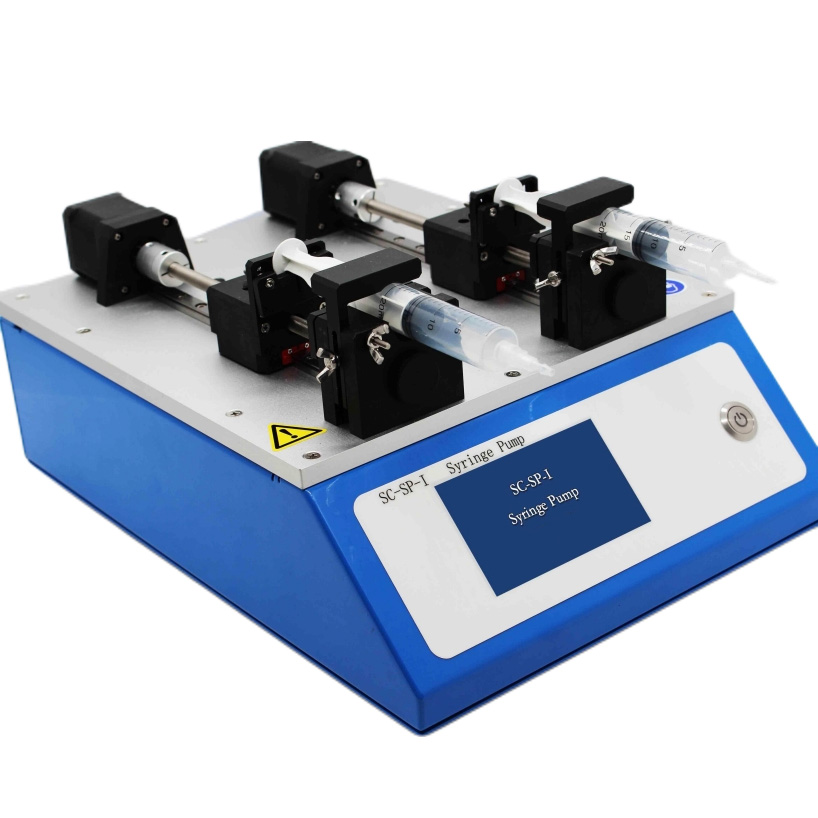

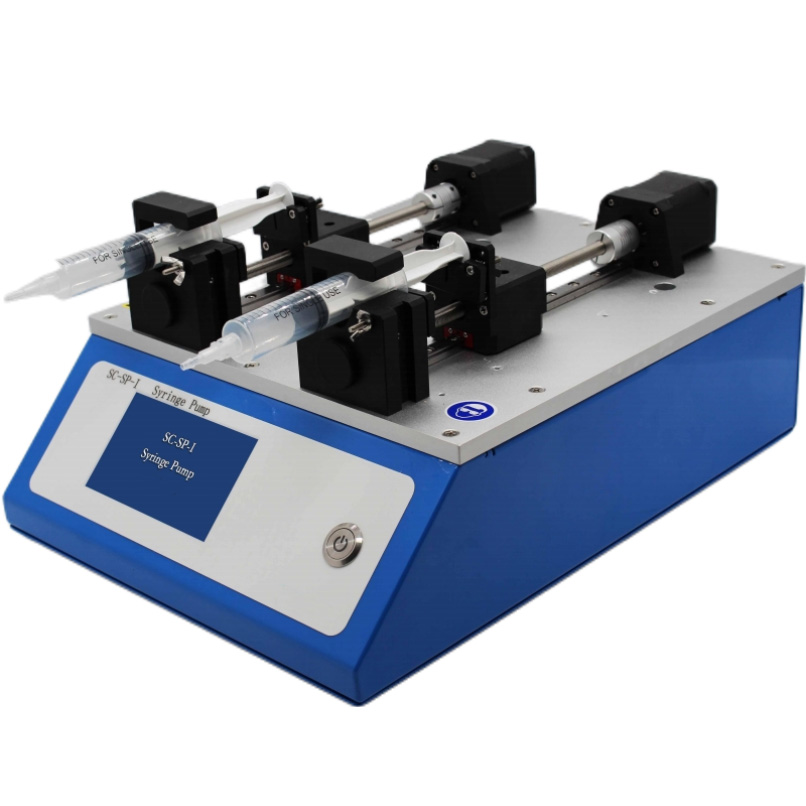

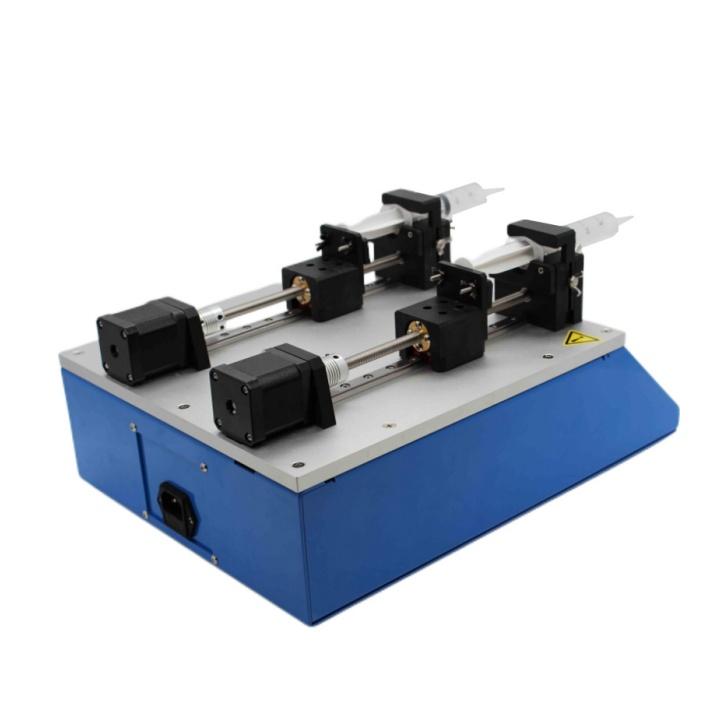

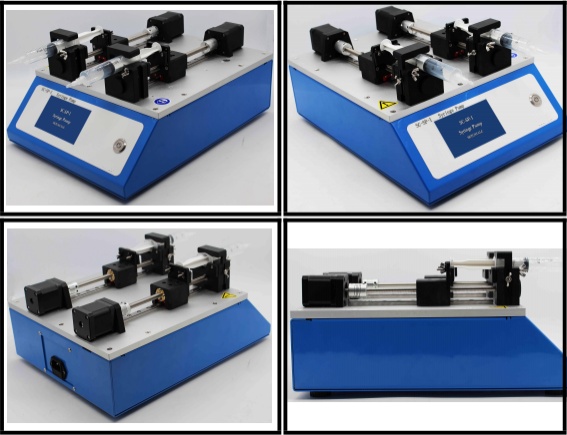

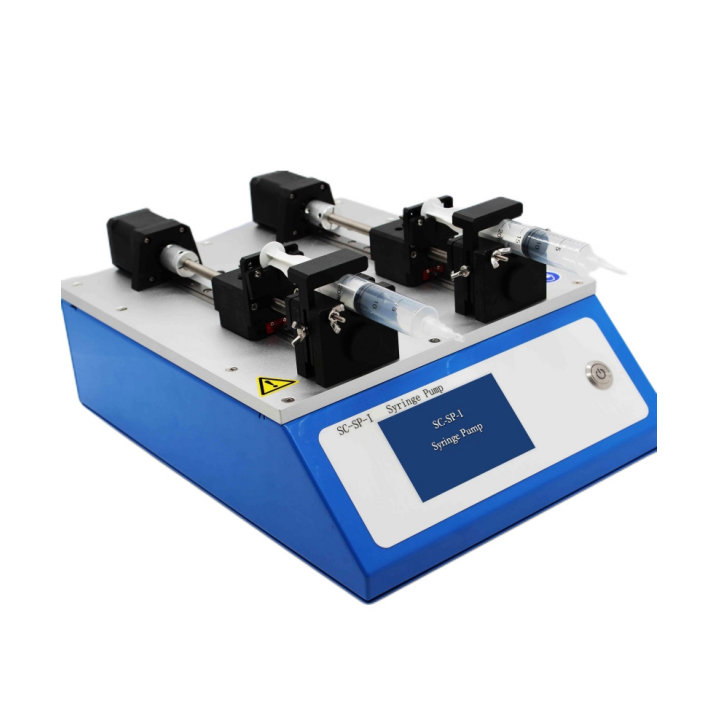

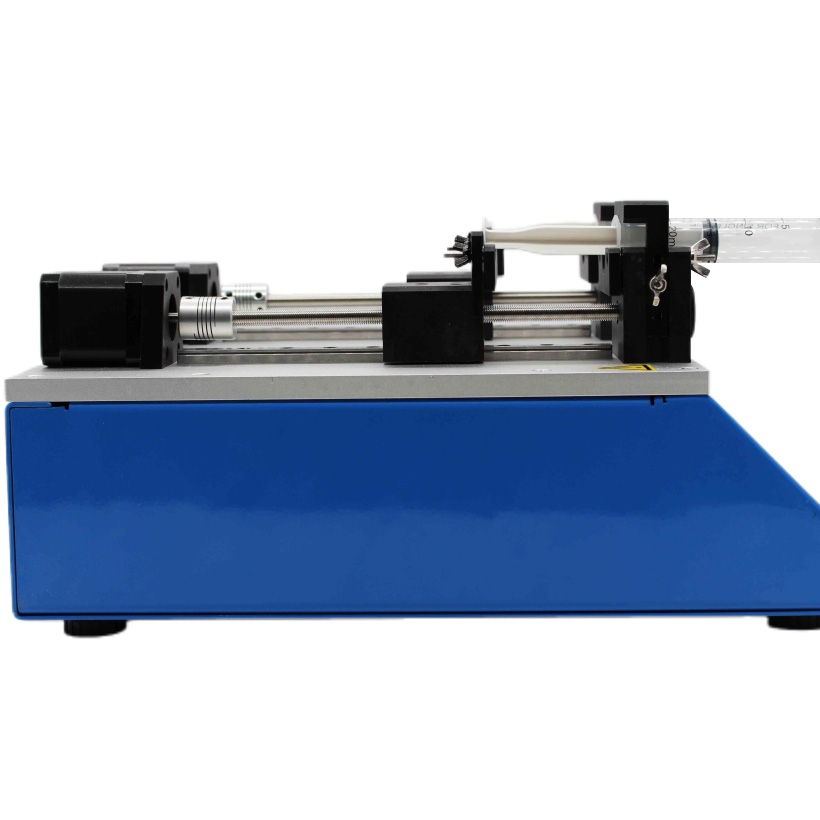

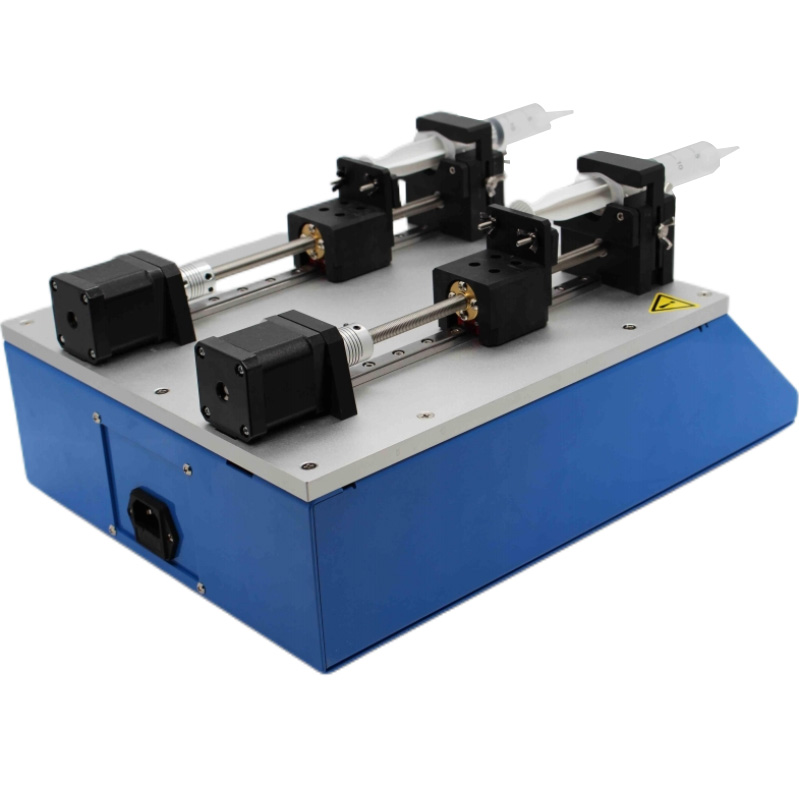

Lab Ultra-wide Line Speed Benchtop Dual Channel Injection Pump
Product features:
1. Ultra-wide line speed range :10μm/min-65mm/min
2. Large stroke adjustment range :0-140mm
3. It can be used with KW series spin coater machine for precise and quantitative glue dropping
Product parameter
|
Number of channels |
2 |
|
Maximum stroke |
140mm |
|
Stroke resolution |
0.156 μm |
|
Capacity |
40ml(Single syringe 20ml) |
|
Linear velocity range(flow rate) |
10 μ m/min-65mm/min |
|
Linear speed adjustment resolution |
10 μ m/min |
|
Stroke control accuracy |
Error≤ ±0.5% |
|
Rated linear thrust |
> 90N |
|
Power-off memory |
Have |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty period |
1 year |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
