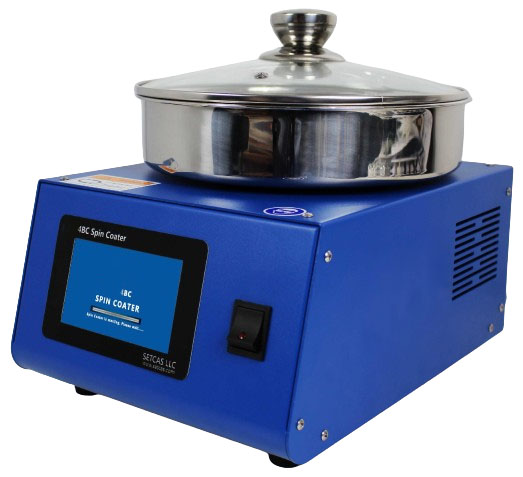

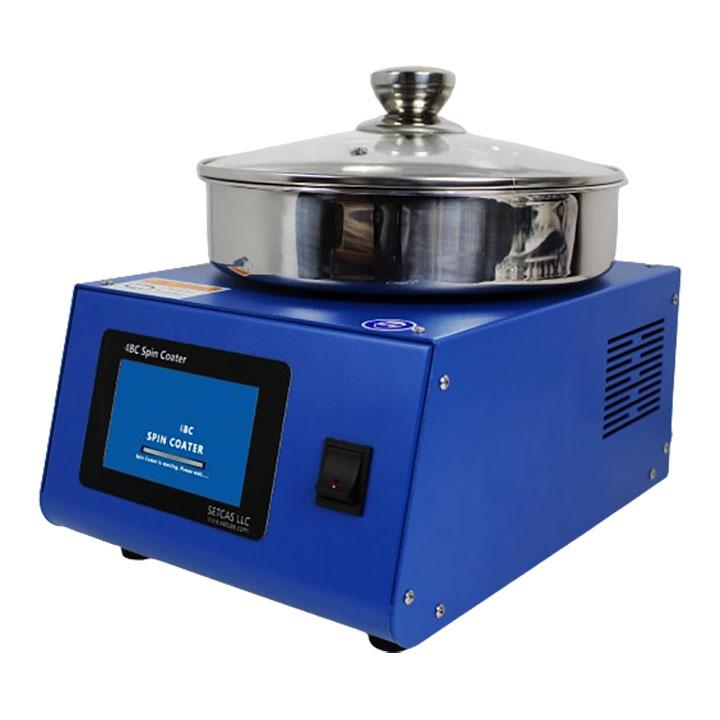

Lab Spin Coating Machine with Automatic Pick-up Alert Function
Key Features：
1. Human machine interface 4.3 inch touch screen.
2. Prevent anti-flying piece protection and alarm.
3. Prevent anti-adhesive protection and alarm .
4. Automatic pick-up alert function.
5. Set data Unlimited group data, each group of 10 speeds
6. Optional disposable pot lining: easy to clean up the waste liquid after coating.
Spin Coater Specifications
|
Substrate size |
5mm to 120mm（ 5 inches） |
|
Speed range |
50- 10000RPM |
|
Human machine interface |
4.3 inch touch screen |
|
Motor speed stability |
±1RPM |
|
Spin coating uniformity |
±1% |
|
Turn around |
Can rotate forward and reverse |
|
Stylus |
Stylus BAMBOO resistance pen (standard) |
|
Set data |
Unlimited group data, each group of 10 speeds(standard) |
|
Seconds per period |
0- 10000s |
|
Storage data |
Unlimited data |
|
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
|
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
|
Pumping speed |
≥60L/MIN |
|
Max vacuum |
-85KPA |
|
Sound Level |
≤55db |
|
Spin coater power |
200W |
|
Pump power |
350W |
|
Dimensions(Spin Coater) |
210mm(W)X220mm(D)X160mm(H) |
|
Weight(Spin Coater) |
10KG |
|
Weight(Pump) |
9KG |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty |
1 year |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
