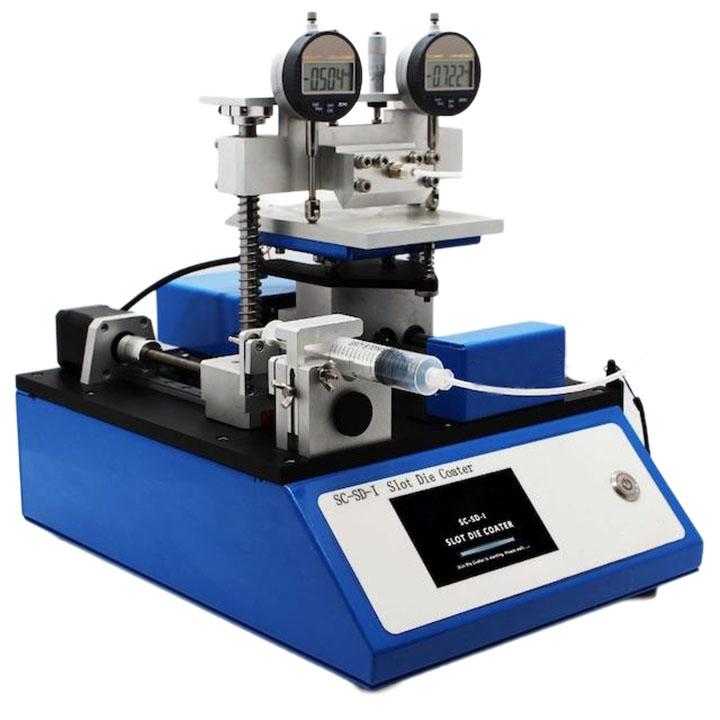

Lab Adjustable Coating Width Benchtop Slit Coating Machine or Slot Die Coater with Heating Function
Key Features：
1. The stage can be heated, and the coating width is adjustable. Heating range: room temperature -200°C, width: 25-50mm.
2. Designed by the American team and assembled in China, it is cost-effective.
3. Product quality assurance, there are multiple after-sales centers around the world, including the United States, Hong Kong and Beijing.
Slot Die Coater Specifications （SC-SD-I）
|
Brand |
TMAXCN |
|
Origin |
R&D by American team, production and assembly in Beijing |
|
Slot-Die Head Coating Width |
50 mm (maximum) |
|
Slot-Die Shim Thickness |
100 μm |
|
Hotplate Temperature |
200°C (maximum) |
|
Stage Travel Length |
100 mm (maximum) |
|
Coating thickness range |
1-1000 μm |
|
Minimum Stage Speed |
100 μm.s-1 |
|
Maximum Stage Speed |
50 mm s-1 |
|
Minimum Syringe Speed |
12 μm.s-1 |
|
Maximum Syringe Speed |
5 mm.s-1 |
|
Maximum Head to Substrate Travel Distance |
13 mm |
|
Power Supply |
DC 24 V, 6.2 A, via 100-240v 50/60Hz power adapter |
|
Dimensions |
Depth x Width x Height (360 mm x 280 mm x 190 mm) |
|
Shipping Weight |
＜10kg |
|
Ambient temperature |
0-40℃ |
|
Relative humidity |
＜85% |
|
Installation method |
Place on a horizontal desktop |
|
Warranty |
1 year |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
