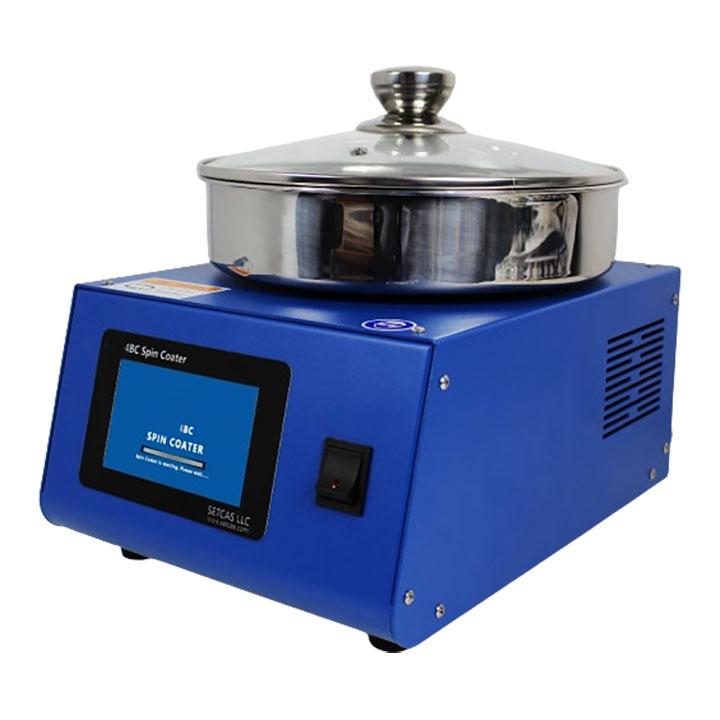

Cheap Spin Coater with Optional Two-way Automatic Glue Coating


Spin Coater





Key Features:

1. Adjustable acceleration, adjustable adsorption, real-time display (acceleration range:  10- 10000RPM/S, speed: 50- 10000RPM with anti-fly protection and alarm.)

2. Equipped with an anti-glue intrusion module to effectively solve the problem of glue intrusion during spin coating and extend the service life of the motor with an automatic film removal prompt function.

3.  Optional two-way automatic glue coating and development modules are available to  facilitate glue dispensing and development.

4. Optional disposable pot lining: convenient for cleaning up waste liquid after spin coating.


Spin Coater Specifications

Vacuum adsorption force

Adjustable, real-time display

Substrate size

5mm to 120mm( 5 inches)

Speed range

50- 10000RPM

Acceleration range

10- 10000RPM/S, adjustable

Human machine interface

4.3 inch touch screen

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Stylus

Stylus BAMBOO resistance pen (standard)

Set data

Unlimited group data, each group of 10 speeds (standard)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

With power-down protection function by default

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

200W

Pump power

350W

Dimensions(Spin Coater)

210mm(W)X220mm(D)X160mm(H)

Weight(Spin Coater)

10KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year





PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
