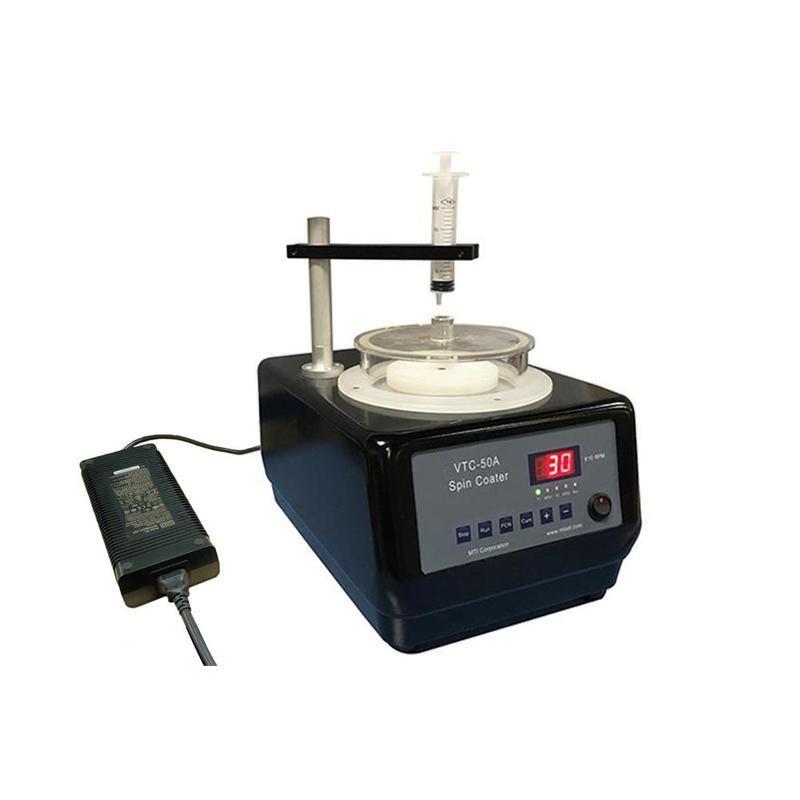

Desktop Vacuumless 8000 rpm Adjustable Spin Coater Digital Control Panel

VTC-50A is an economic desktop Spin Coater with a vacuumless chunk that is designed for the quality coating of sol-gel at the lowest cost. By using grooved spinning templates to hold samples on the rotating plate, the instrument provides the advantages of cost-effectiveness and ease of maintenance. Complete accessories are included for immediate use.
(Upgraded to Vacuum-free sample holder since 5/22/20). Upgraded to 24VDC power input since 09/10/2020)

SPECIFICATIONS:

Working Voltage	24 VDC A 110 - 240 VAC to 24 VDC(50/60Hz) NRTL Certified power adapter for worldwide use is included.
Structure	Heavy-duty Aluminum casting case to keep spinning stably 24VDC motor  Ar gas compatible for use in a glovebox
Spin Plates	The Chamber size is 134mm diameter, can accept wafer sample 4" diameter at Max. A 4" PTFE spin plate with the groove of 50x50mm is included, which can hold 50 sq mm, 0.3 mm thin sample plate in place during fast-spinning, so-called vacuumless holder 7 pcs of 0.3 mm thickness nylon plate is included for holding irregular samples with double-sided tape or carving, please watch the video for more details. One roll of 3M removable double-sided tape (3/4' W x 400" L) is included for immediate use  Please click here to learn how to mount samples on the plate by using removable double-sided tape. It is easy and more economical than vacuum chuck. You may use a 50x50mm blank (included) plate to make different groove via a knife to fit your sample, or make an order space grooved plate from us. ( Pic. 2-3） You may order a wafer bonding tape to stick large substrate to the spin plate by clicking the pic. 4below: Pic. 1 Pic. 2 Pic. 3  Pic. 4
Spin Speed & Time	Digital control panel with TWO programmable segments for different spin times and speeds Spinning speed: 500 - 8000 RPM adjustable Spinning Time: 1 - 60s adjustable

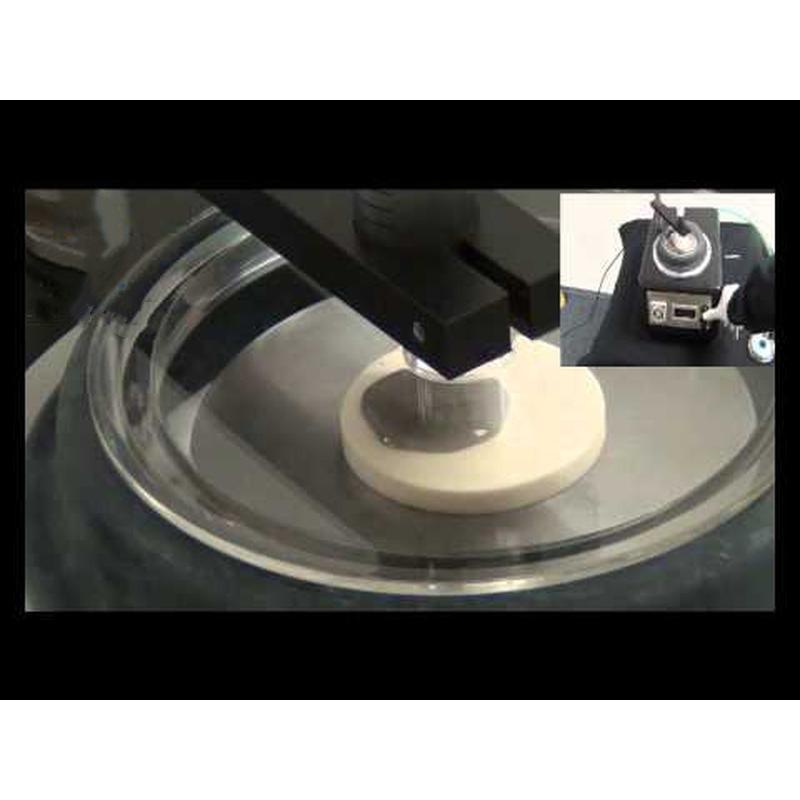

Liquid Injecting	One 20 mL syringe is included for liquid injection Support rod and swing-arm for the injector is included for easy coating The syringe holder height can be adjusted and rotated freely along the support rod
Optional	You may choose Precision Electronic Single Channel Pipette: 20 - 200uL for accurate coating (Click Pic 1) Using plasma cleaner to treat the substrate surface before the coating can improve the film quality You may consider our new product: Heatable syringe (Click Pic 4 and Pic 5) Pic 1  - Pic 2  - Pic 3  - Pic 4 - Pic 5
Compliance	CE certificated only NRTL or CSA certification is available upon request at the extra cost
Application Notes	In order to achieve optimal coating quality, please consider cleaning substrates by a plasma cleaner (click picture below for more details) prior to coating. This will significantly reduce the surface tension on the substrates. You may place the compact spin coater into a glove box to operate in inert gas  Cleaning instruction for the spin coaters.
Warnings	Do not overflush the water bowl/base with any kind of liquid. Excess liquid will leak into the motor shaft and cause damage. Please use a fabric cloth to wipe out the residues that remain in the bow/base. For more details about the cleaning procedure, please review the cleaning instruction for the spin coaters.

Standard Package:

Item #	Description	Qty
1	VTC-50 Desktop Spin Coater	1
2	4" Dia. Spindle Plate (one installed and one included in the package)	2
3	Plastic Cover for operation safety	1
4	20mL Syringe for dropping coating solvent on the plate	1
5	Drain Hose for disposing of wastewater	1
6	Removable Double Side Tape for sticking substrate onto the spindle plate	1
7	Tools (Carving Blade, Files, Ruler, Hex Keys)	1 Set

PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
