Lab High Speed Spin Coating Machine with Oil Free Vacuum Pump

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna

  • Item no.:

    Lith-4C
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

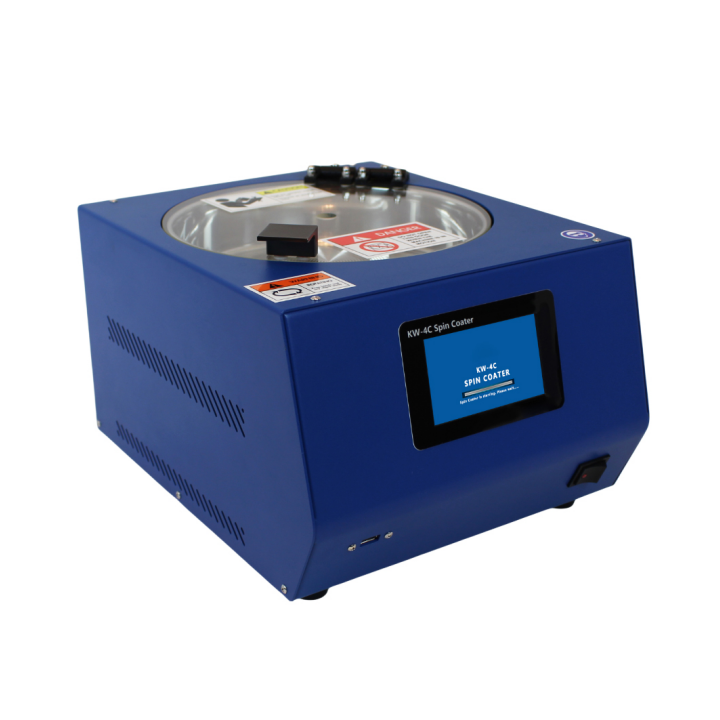

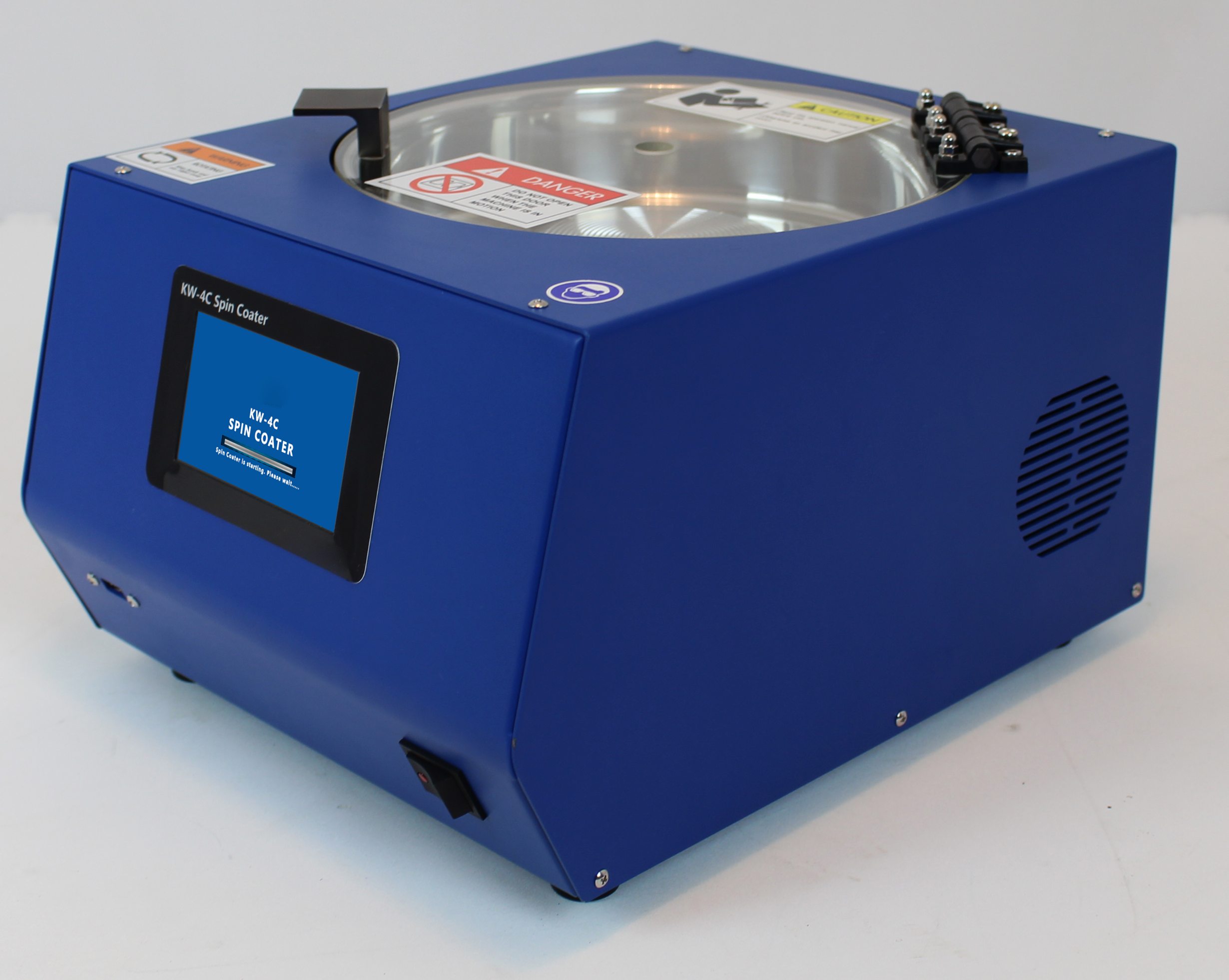

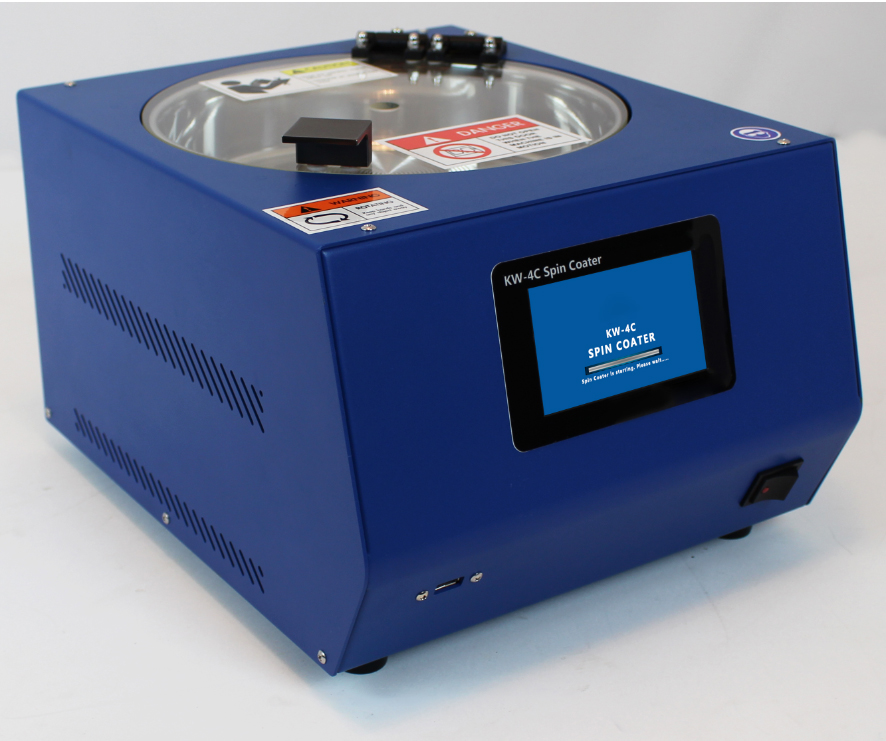

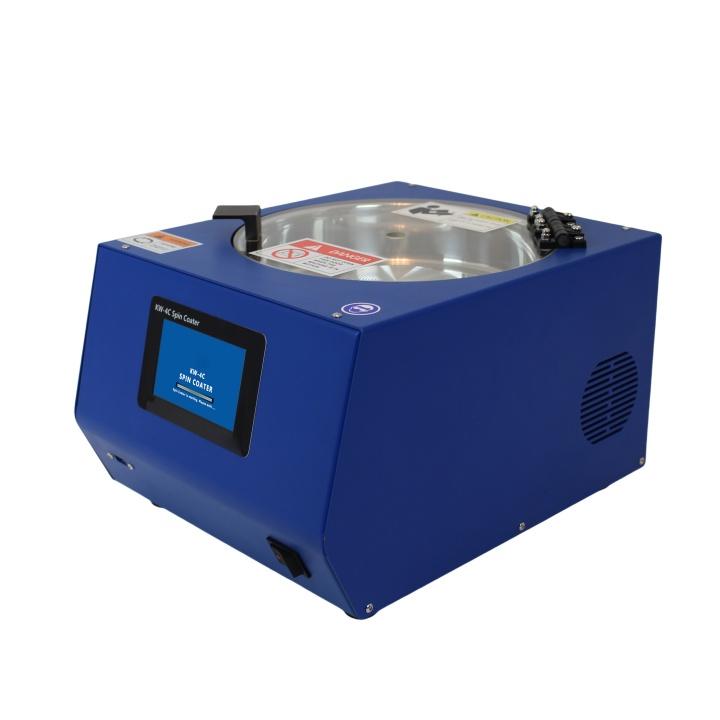

Lab High Speed Spin Coating Machine with Oil Free Vacuum Pump


Spin Coater



Key Features:

1.  Anti-flying protection and alarm

2.  Anti-glue protection and alarm

3.  Real-time monitoring of adsorption force, alarm if adsorption force is insufficient, prohibit starting if adsorption force is insufficient, stop immediately if adsorption force is insufficient

4.  The motor can rotate forward and reversely

5.  Formula with power-offprotection function

6.  Adjustable acceleration (acceleration:10-10000RPM/S, speed range: 50-10000RPM)

7.  With communication interface: USB, external mouse and keyboard, transfer recipes through U disk.




Spin Coater Specifications

Substrate size

5mm to 150mm 6 inches

Speed range

50- 10000RPM

Acceleration range

10- 10000RPM/S Adjustable

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Human machine interface

4.3 inch touch screen

Communication interface

can be connected to the wireless mouse and keyboard: the machine can be placed in the glove

Turn around

Can rotate forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Vacuum Pump

SC-550V

Set data

Unlimited group data, each group of 10 speeds (standard)

Seconds per period

0- 10000s

Storage data

Unlimited data

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

55db

Spin coater power

200W

Pump power

350W

Dimensions(Spin Coater)

210mm(W)X220mm(D)X160mm(H)

Weight(Spin Coater)

10KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40

Warranty

1 year






PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
