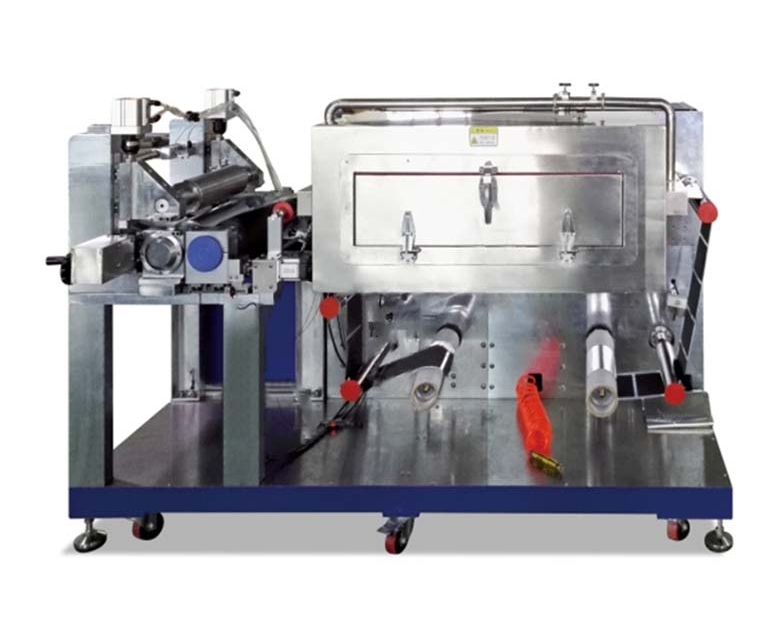

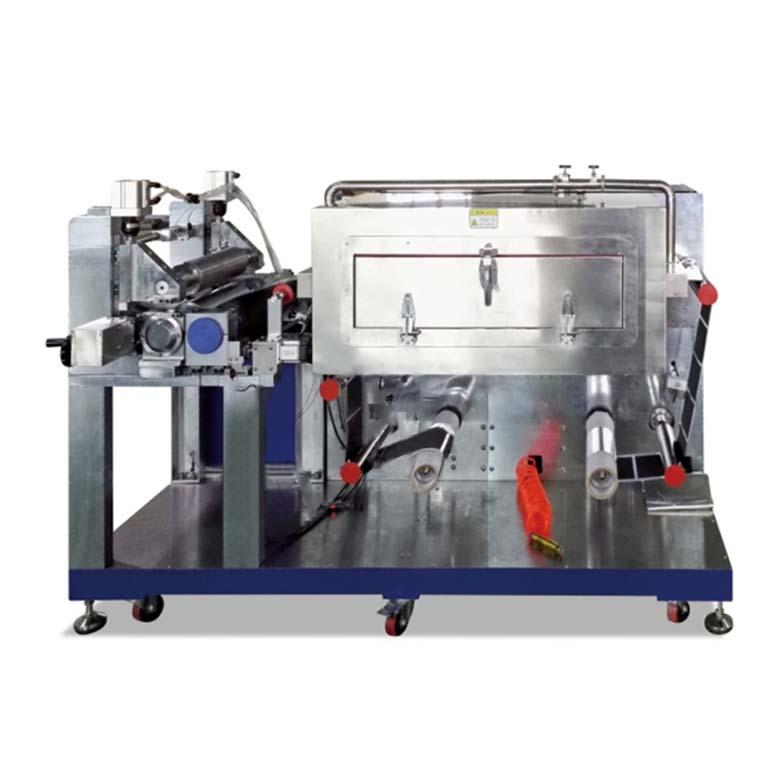

Lab Three-roller Intermittent Experimental Transfer Film Coating Machine with Touch Screen

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-MRX-SY300-1J
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab Three-roller Intermittent Experimental Transfer Film


Coating Machine with Touch Screen


Transfer Coating Machine


Product name: Intermittent experimental coater MRX-SY300-1J

The intermittent experimental coater is a three-roller transfer coating equipment, which can perform continuous and intermittent coating, and is conveniently applied to the equipment for surface coating process on various substrates. Especially used in the lithium-ion battery industry. This equipment is designed for the convenience of researchers, while meeting the requirements of coating accuracy and consistency that are no different from production. The drying effect is excellent. It is ideal for lithium-ion batteries, super capacitors, nickel batteries and other Ideal for secondary battery R&D and pilot testing.



Features:

a. Can be switched freely to achieve continuous and intermittent coating;

b.  Base material tension control, stable belt running, equipped with deviation correction device;

c. Hot air oven, double-sided air blowing on the upper and lower sides, high-quality drying effect;

d.  Three-roller transfer coating with a wide coating window;

e.  Comma scraper metering, with precision adjustment mechanism, to obtain high coating accuracy;

f. PLC control, touch screen operation, convenient and easy to use;

g. Optional solvent recovery treatment device

h. Power supply: 3PH 380V, 50HZ, voltage fluctuation range: +8%–8%; total starting power of power supply is 10KW



Technical parameter:

Serial number

Project



Technical parameter

Remark

1.

Suitable system

Ternary, lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide, graphite, silicon carbon and other system battery positive and negative plate coating process



2.

Coating method

Continuous coating, intermittent coating

Transfer coater

3.

Number of oven sections

1 section 1 meter oven



4.

Coating speed

0~0.5m/min

Depending on drying

5.

Running Substrate Thickness

Aluminum foil (Al): 830um

Copper foil (Cu): 830um



6.

Design width of roll surface

330 mm



7.

Guaranteed coating width

Within 280mm



8.

Coating roller, rubber roller

Φ120mm



9.

Scraping roller

Φ80mm



10.

Coating accuracy

±3um



11.

Weight accuracy of double-sided coating film (mg/cm2)

Coating center value ±1.0%



12.

Suitable slurry viscosity

2000~12000 (mPas)



13.

Single side coating dry thickness range

20-200μm



14.

Solvent properties



Oily solvent NMP (s.g=1.033, b.p=204℃)



Aqueous solvent H2O/NMP(s.g=1.000,b.p=100℃)



15.

Suitable for solid content range

20~85%



16.

Coating size accuracy (mm)

L≤±1, W≤±0.5

L: Length direction

W: width direction

17.

Alignment accuracy of front and back (mm)

L≤±1, W≤±0.5
