Lab Small Automatic Drying Film Coater

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Brand:

    LITH
  • Item no.:

    LITH-MSK-AFA-L1000
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

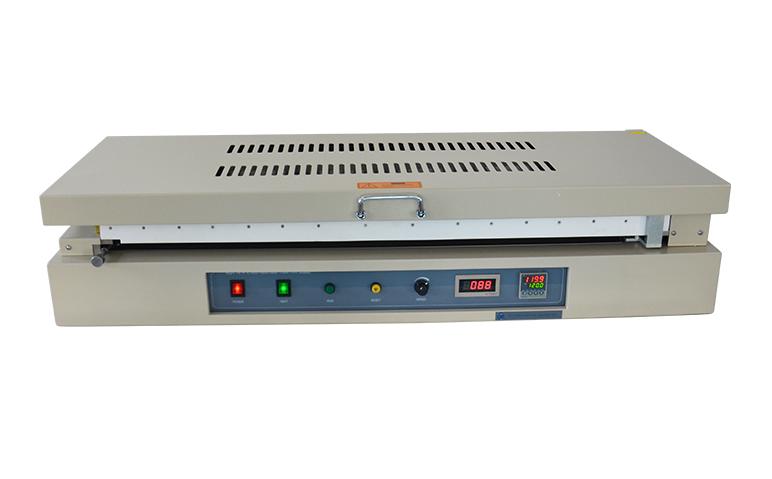

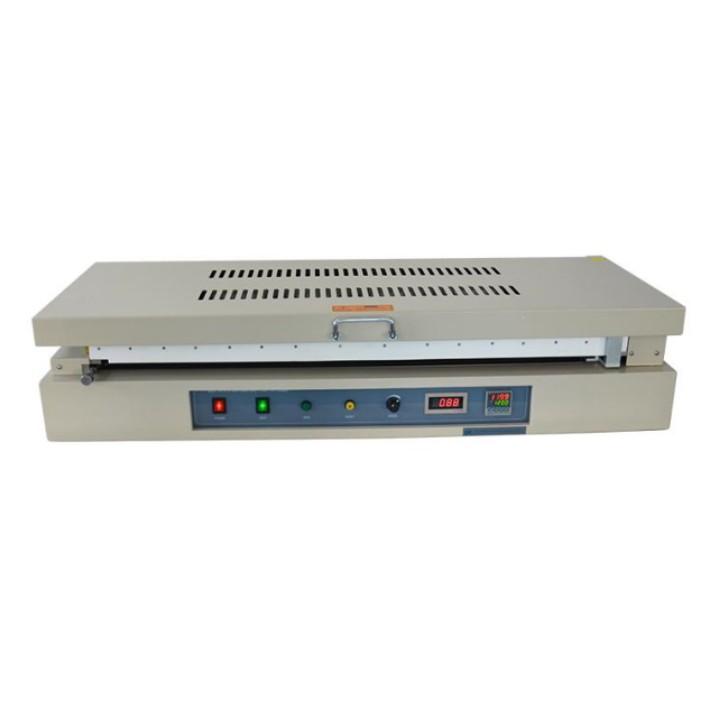

Lab Small Automatic Drying Film Coater

Lab Drying Film Coater


Product Name: Lab Small Automatic Drying Film Coater


MSK-AFA-L1000 small automatic drying film coater is mainly used for laboratory coating of liquid-like or colloidal films. The equipment adopts stepless variable speed motor to precisely control the film coating speed to achieve the purpose of advancing the squeegee for film coating at an even speed, and the squeegee is made of full stainless steel with constant weight, which can improve the consistency and uniformity of the film coating. The equipment adopts bottom vacuum adsorption sample and has bottom heating function, the heating temperature can reach up to 120℃, which can realize the function of baking film at the same time during the film coating process and make the film dry quickly. The equipment is equipped with a squeegee limiter, which can adjust the length of the coated film arbitrarily and automatically reset the squeegee after it reaches the limit. The upper cover has the function of dustproof and heat preservation, and at the same time makes the equipment more beautiful.



Features:

1. The equipment adopts stepless variable speed motor to precisely control the coating speed.

2. Adopt the horizontal bar to push the debuggable scraper, and there is no special requirement for the shape size of the debuggable scraper.

3. The waste material collection box placed on the left edge of the vacuum suction plate can collect the excess paint to ensure the cleanliness of the equipment itself and the surrounding area.

4. The bottom intelligent vacuum heating suction plate and digital display temperature control drying system can adapt to the development of science and technology of film formation under high temperature conditions.



Technical parameters

Product Name

MSK-AFA-L1000 small automatic drying film coater

Model Number

MSK-AFA-L1000

Main Parameters

1. Power supply: AC 220V, 50HZ

2. Heating plate power: 3000W

3. Total power: 3100W

4. Size of coated suction board1000mm×350mmL×W)

5. Vacuumable size940mm×310mmL×W

6. Coating speed28~90mm/sec (stepless variable speed)

7. Push rod stroke: 29-930mm (length adjustable)

8. Heater maximum heating temperature: 120℃ (intelligent adjustable)

9. Temperature control accuracy: ± 1 ℃

Product Specification

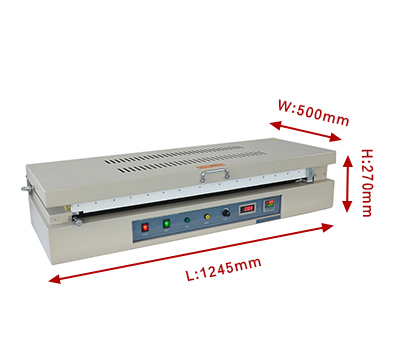

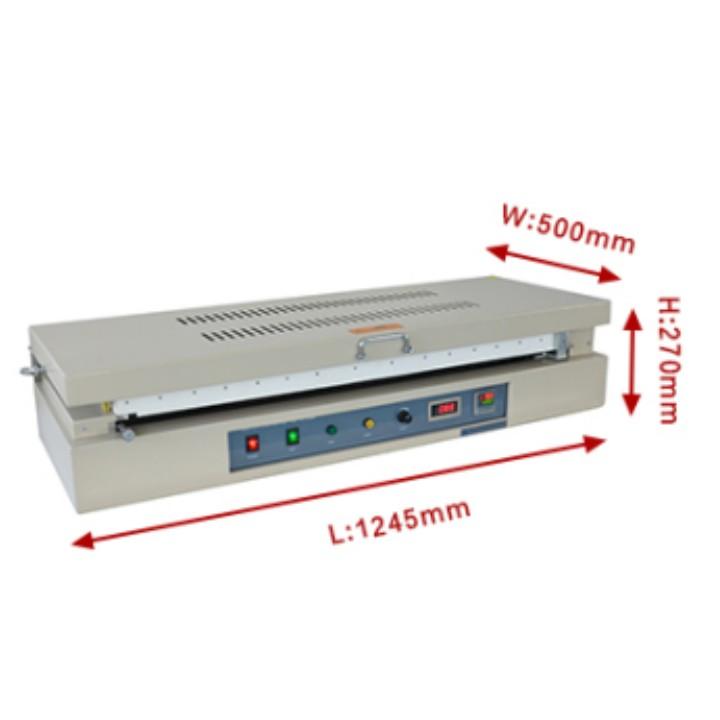

1Complete machine external dimensions.

1245mm×500mm×270mmlength×width×heightClose

1245mm×550mm×670mmlength×width×heightopen

2Weight 60Kg
