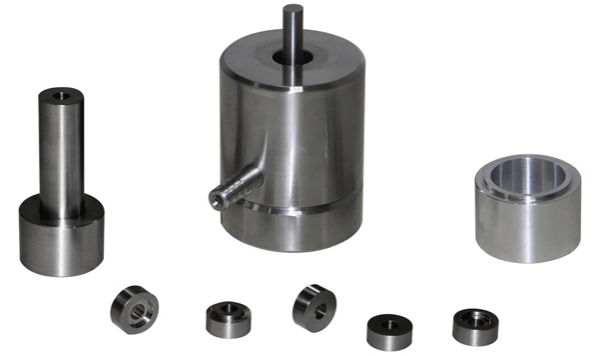

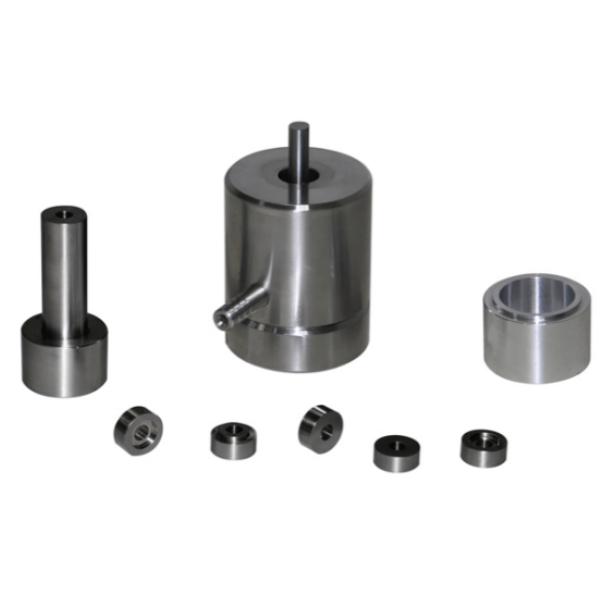

Lab Ring Punch Press Die with Cavity Depth of 40mm



Ring Punch Press Die


Parameter

Model

LITH-PMO

Compressed sample shape



Mold material

Alloy tool steel: Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Φ7-3、Φ10-5、Φ20-10mm(M)

Cavity depth

40mm(N)

Dimensions

Φ53*120mm(L*H)

Mold weight

1.4kg







Dimension diagram

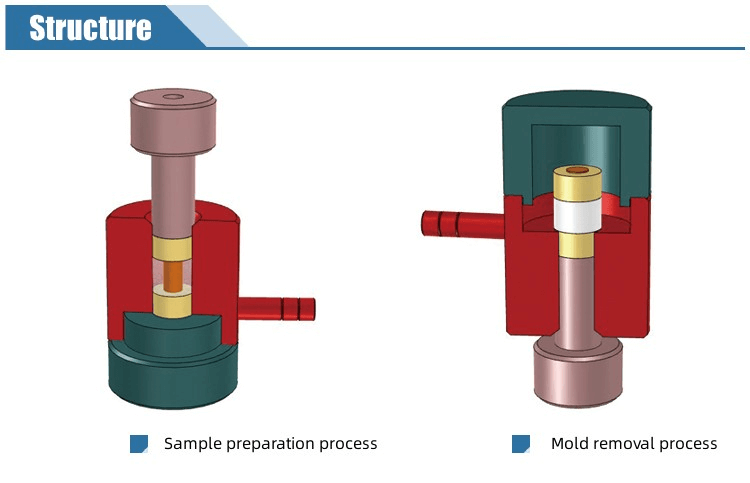

Schematic Diagram of Mold Operation

Punch Press Die

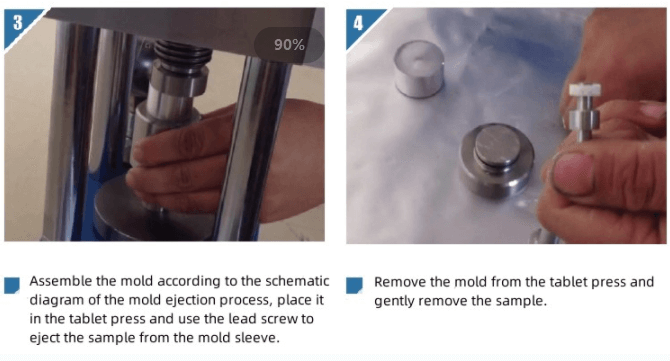

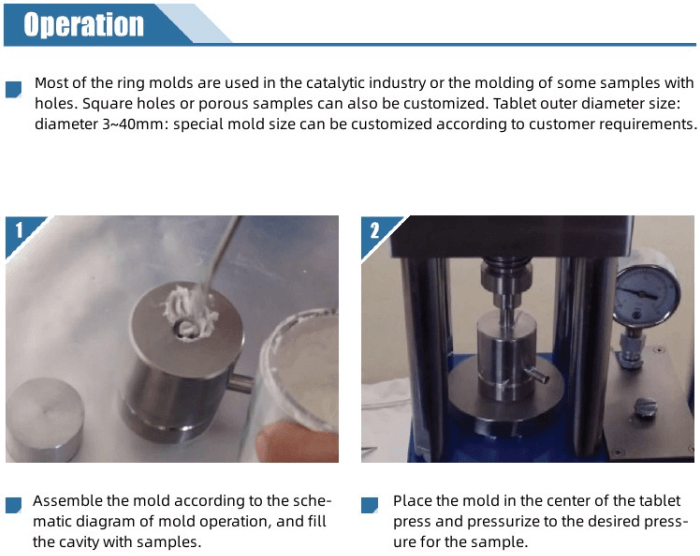

Mold sample preparation operation steps

Lab Ring Punch Press Die

Lab Ring Punch Press Die






Mold use and maintenance
