Home Laboratory Press

Mold/Die

 Lab Cylindrical Electric Heatable Pressing Die

Electric Heatable Pressing Die
Electric Heatable Pressing Die

Lab Cylindrical Electric Heatable Pressing Die

Contact Person：Gilia Ding


Email: gilia@inthelaboratory.com

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna



  • Item no.:

    LITH-PCH-M

  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal

  • Lead Time:

    7 days

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited standard warranty
  • Product Detail

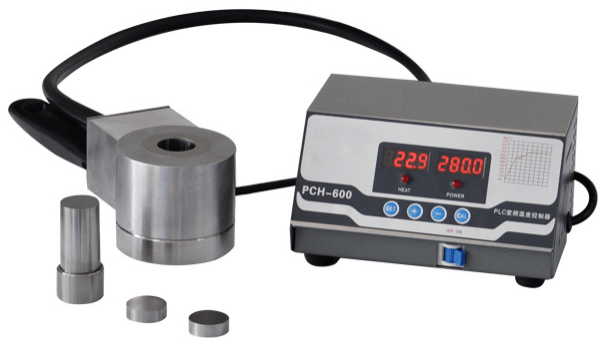

Lab Cylindrical Electric Heatable Pressing Die



Electric Heatable Pressing Die


Parameter

Model

LITH-PCH-M




Compressed sample shape



Heating temperature

Room temperature -300℃

Mold material

Alloy tool steel: Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Φ10, Φ13, Φ15, Φ20, Φ30, Φ40mm(M)

Cavity depth

45mm(N)

Dimensions

Φ78*138mm, Φ90*138mm(L*H)

Power supply

220V/300W

Mold weight

2.7kg





Dimension diagram

Electric Heatable Pressing Die







Schematic Diagram of Mold Operation

Electric Heatable Pressing Die

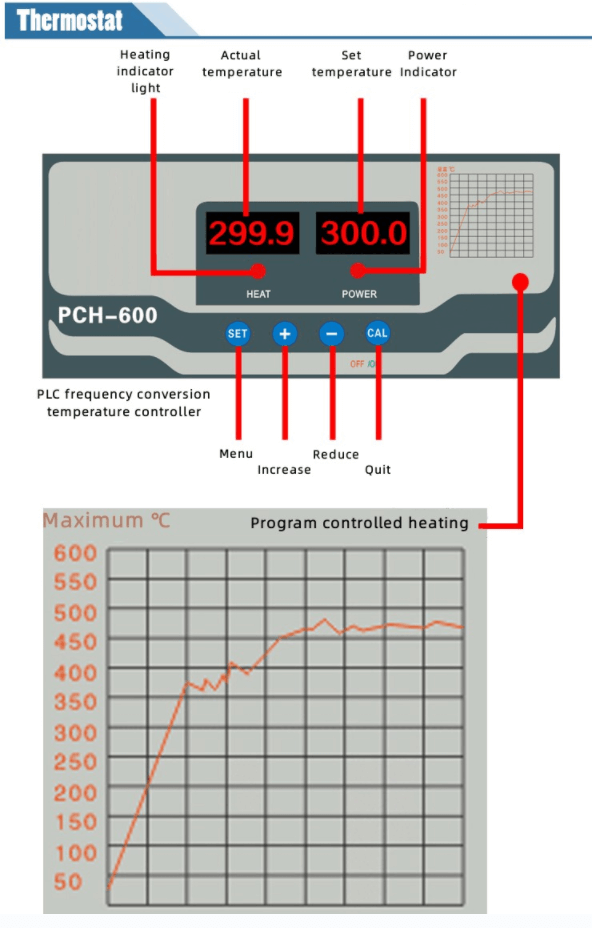

Temperature Controller

Heatable Pressing Die

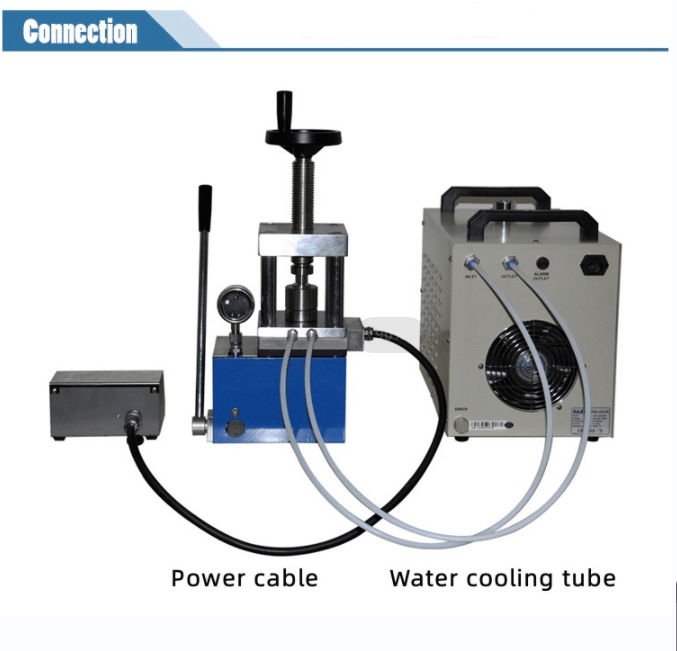

Diagram of pipeline connection

Cylindrical Heatable Pressing Die

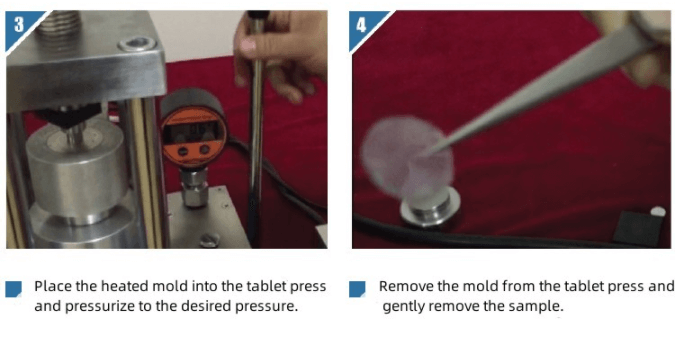

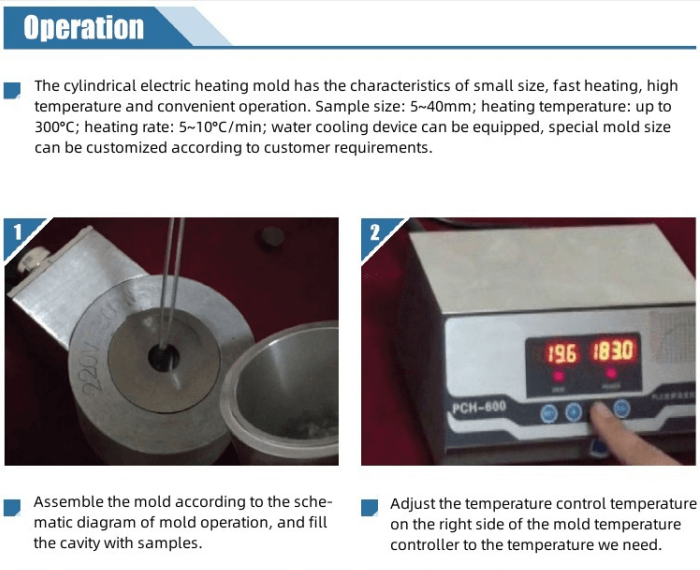

Mold sample preparation operation steps

Lab Heatable Pressing Die

Lab Heatable Pressing Die






Mold use and maintenance
