3-10mm Lab Square Open-flap Punch Press Die

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-PMK-FA
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

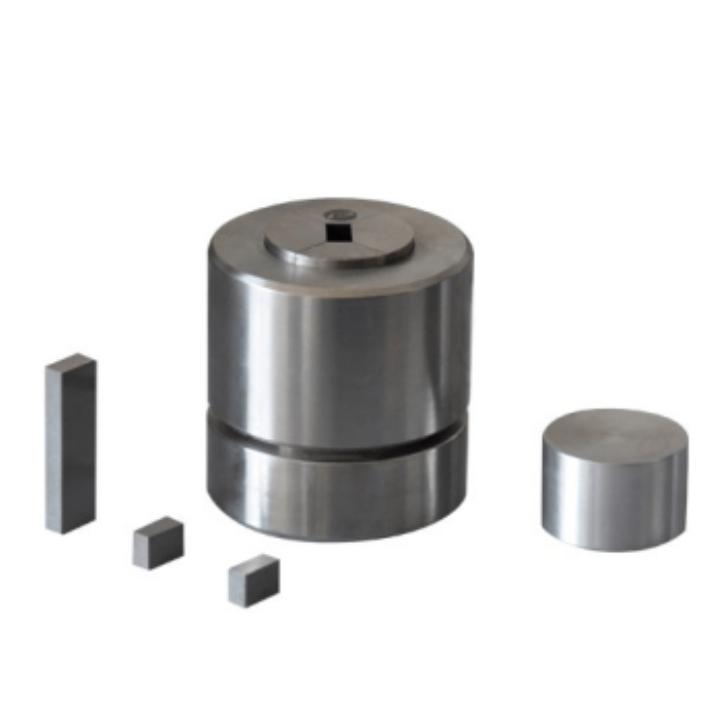

3-10mm Lab Square Open-flap Punch Press Die



Square Open-flap Press Die


Parameter

Model

LITH-PMK-FA



Compressed sample shape



Mold material

Alloy tool steelCr12MoV

Indenter hardness

HRC60-HRC62

Sample size

3*34*45*56*68*810*10mm(M)

Cavity depth

30mm(N)

Dimensions

Φ53*120mm(L*H)

Mold weight

1.2kg





Dimension diagram

Square Open-flap Press Die







Schematic Diagram of Mold Operation

Open-flap Punch Press Die





Mold sample preparation operation steps

Punch Press Die

Punch Press Die






Mold use and maintenance
