151-200mm Splicing Square Hydraulic Press Mold

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-PMF-P
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

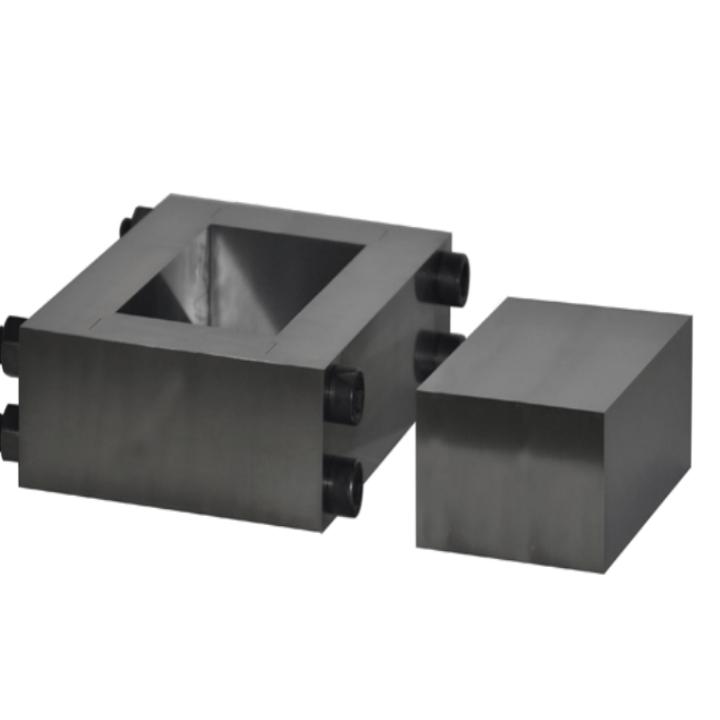

151-200mm Splicing Square Hydraulic Press Mold



Splicing Square Press Mold


Parameter

Model

LITH-PMF-P



Compressed sample shape



Mold material

Alloy tool steel: Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Long side 151-200mm(M)

Cavity depth

60mm(N)

Dimensions

220*160mm (L*H)

Mold weight

45kg-80kg





Dimension diagram

Splicing Square Press Mold









Schematic Diagram of Mold Operation

Splicing Square Press Mold





Mold sample preparation operation steps

Square Hydraulic Press Mold

151-200mm Splicing Square Press Mold

151-200mm Splicing Square Press Mold

Square Hydraulic Press Mold






Mold use and maintenance
