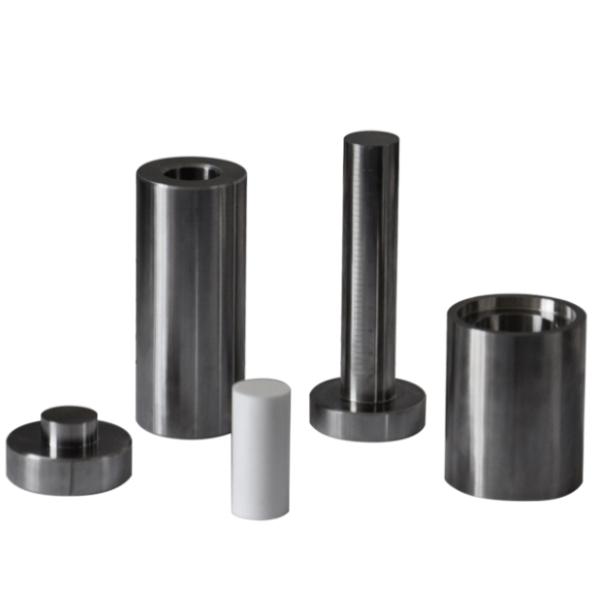

 Lab Elongated Cylindrical Hydraulic Press Die

Elongated Cylindrical Press Die
Elongated Cylindrical Press Die

Lab Elongated Cylindrical Hydraulic Press Die

Contact Person：Gilia Ding


Email: gilia@inthelaboratory.com

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna



  • Item no.:

    LITH-PMD

  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal

  • Lead Time:

    7 days

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited standard warranty
  • Product Detail

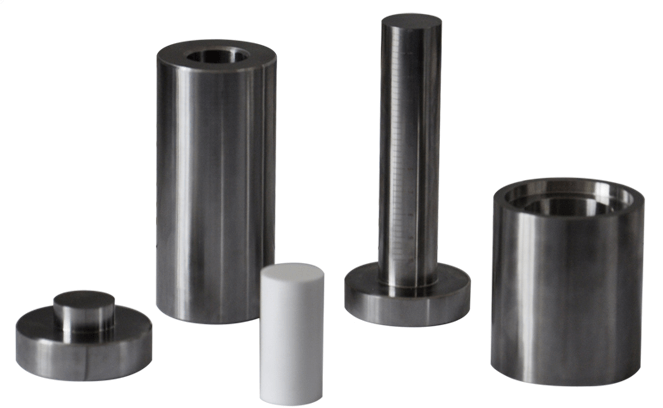

Lab Elongated Cylindrical Hydraulic Press Die



Elongated Cylindrical Press Die


Parameter

Model

LITH-PMD



Compressed sample shape



Mold material

Alloy tool steel: Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Φ10、Φ12、Φ13、Φ15、Φ18、Φ20mm(M)

Cavity depth

100mm(N)

Dimensions

Φ53*220mm(L*H)

Mold weight

4.8kg







Dimension diagram

Elongated Cylindrical Press Die

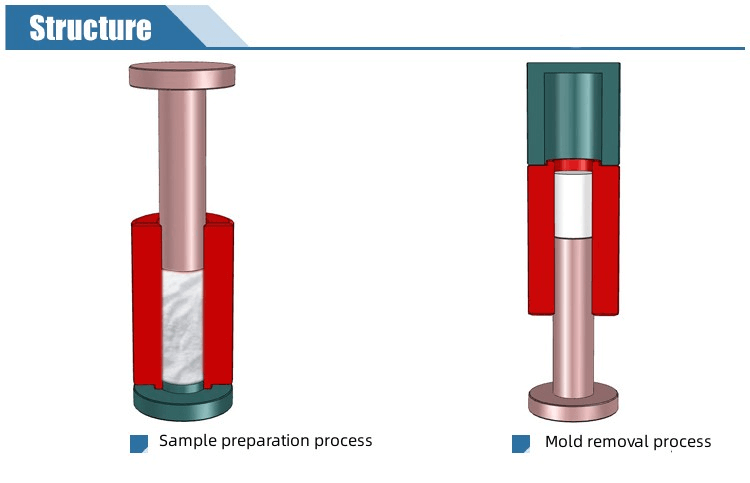

Schematic Diagram of Mold Operation

Hydraulic Press Die

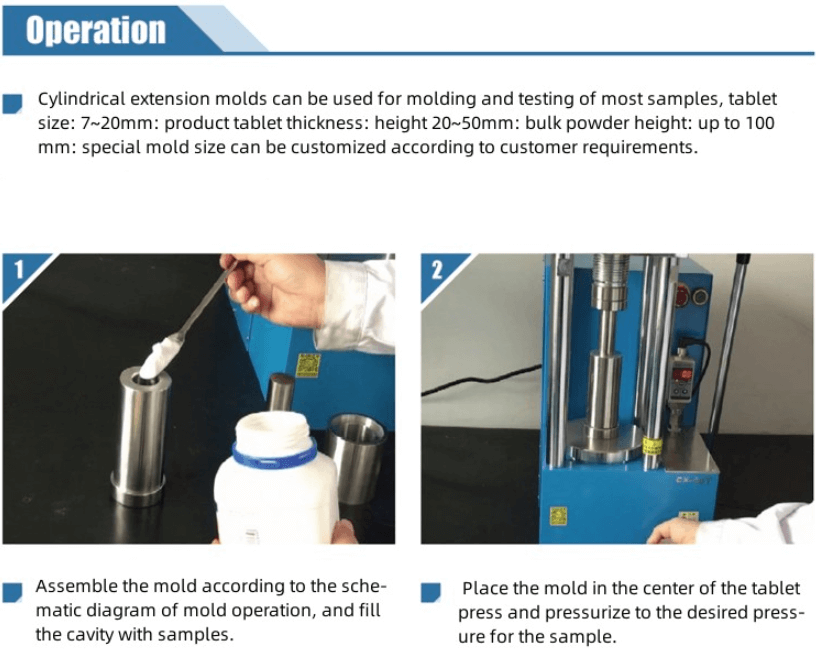

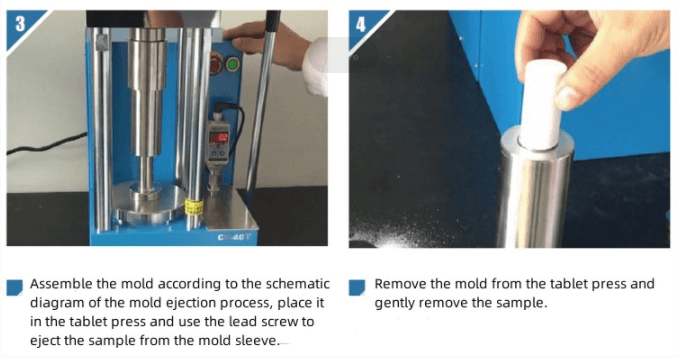

Mold sample preparation operation steps

Cylindrical Hydraulic Press Die

Elongated Cylindrical Press Die






Mold use and maintenance
