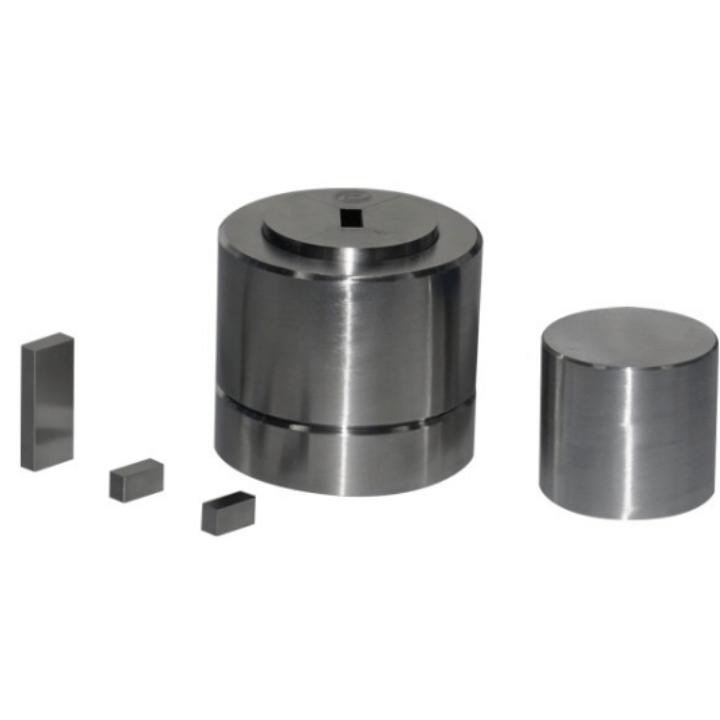

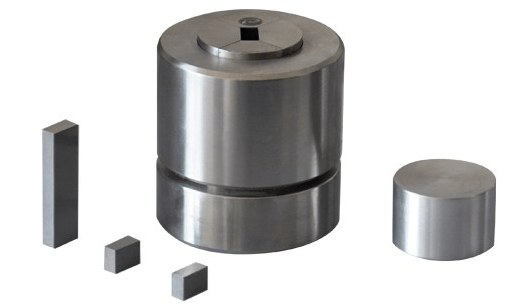

3-20mm Lab Square Open-flap Powder Pellet Press Die



Square Open-flap Press Die


Parameter

Model

LITH-PMK-FB



Compressed sample shape



Mold material

Alloy tool steel：Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

12*12, 15*15, 18*18, 20*20mm(M)


Cavity depth

40mm(N)

Dimensions

Φ73*133mm(L*H)

Mold weight

3.6kg





Dimension diagram

Square Open-flap Press Die






Schematic Diagram of Mold Operation

Lab Pellet Press Die





Mold sample preparation operation steps

Open-flap Press Die

Open-flap Press Die






Mold use and maintenance
