Aluminum Compact Spin Coater Vacuum Chuck with TWO Programmable Segments

VTC-100A is a compact spin coater with vacuum chucks designed for easy and quick coating via sol-gel for wafers up to 4". The spinning speed is variable from 500-8000 rpm with two programmable segments. The package comes included with complete accessories for immediate use.
SPECIFICATIONS:

Structure	An aluminum casting case to keep spinning stably The liquid disk is made of Polypropylene (PP) to resist most of the corrosive solutions The drainage outlet and vacuum pump connector are on the back panel One filter is included in the standard package. It is used to connect the coater to prevent wastewater from flowing into the pump One oil-less vacuum pump is included in the standard package, Please click here for specification details.
Chamber & Vacuum Chuck	Chamber Diameter: 145 mm 3 sets of PP anti-corrosive vacuum chucks with chuck o-ring come in different sizes (1'', 2'', and 4'') 1 piece of adhesive tape (6'' W x 24'' L) is included for coating irregularly shaped substrates (e.g. Place the irregular substrate on the adhesive tape, then the vacuum chuck will hold the tape by suction) Mini suction cups are available for the small wafer with less than 1" Dia. or substrate with regular ( 5x5, or 10x10mm) or irregular shapes. Please click here to order. at extra cost. ( see picture below right )
Vacuum Pump (Not included)	From 09/07/2022, 120L/min Oilless Vacuum Pump is not included. Vacuum grade rubber pipe is included for immediate use.
Spin Speed & Time	Digital control panel with TWO programmable segments for different spin times and speeds Spinning speed: 500 - 8000 RPM Spinning Time: 1 - 60s

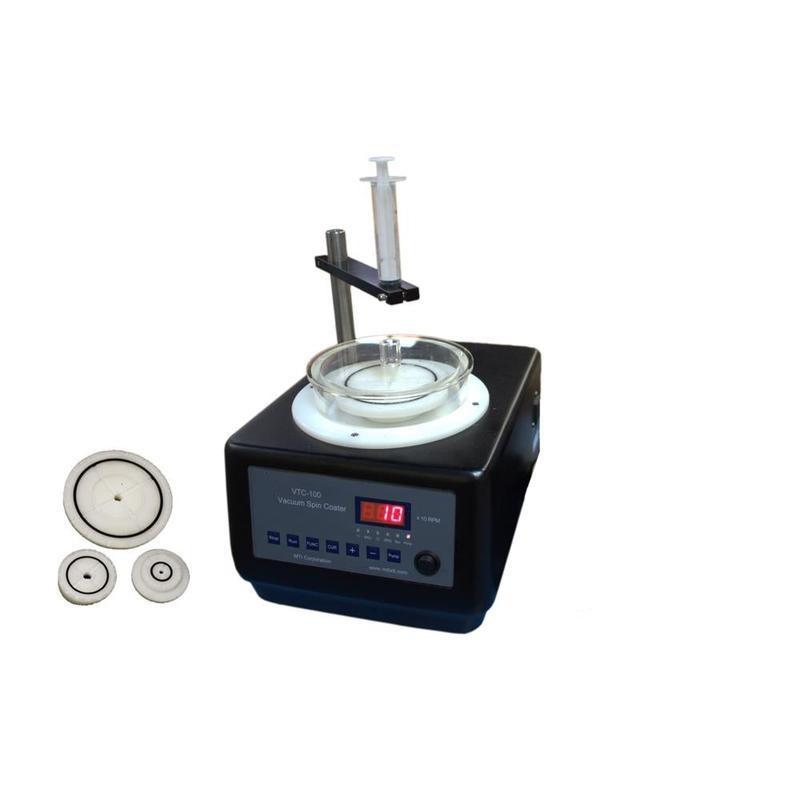

Liquid Injecting	20mL syringe is used to contain the coating material The syringe holder height can be adjusted and rotated freely along the support rod  -Pic 1  Pic 2
Input Voltage	Spin Coater: 24 VDC with 100 - 240 VAC power adapter, 150W Vacuum Pump: 110VAC or 220VAC please select the voltage in the options bar (10A fuse)
Motor Power	24V DC motor with 150W Max.
Compliance	CE certificated only If you need NRTL certification, please order VTC-100PA ( click pic below )
Warnings	Do not overflush the water bowl/base with any kind of liquid. Excess liquid will leak into the motor shaft and cause damage. Please use a fabric cloth to wipe out the residues that remain in the bow/base. Turn on the water outlet when flushing the water bowl/base to avoid liquid overflowing during the operation. For more details about the cleaning procedure, please review the cleaning instructions for the spin coaters.

STANDARD PACKAGE:
Item #	Description	Qty
1	VTC-100A Desktop Spin Coater	1
2	4" Vacuum Chuck (pre-installed on the machine)	1
3	2" Vacuum Chuck	1
4	1" Vacuum Chuck	1
5	Plastic Glass Cover for operation safety (pre-installed on the machine)	1
6	20mL Syringe for dropping coating solvent on the plate	1
7	Hose for connecting the vacuum pump	1
8	Drain Hose for water outlet	1
9	Blue Adhesive Tape (6" W x 24" L)	1
Optional Parts
Option	Oil-less Vacuum Pump, AC 110V or 220V with Filter installed on the pump (Connect to vacuum pipes to keep water from flowing into the pump)	Option
Option	Chuck O-ring For VTC200 OR VTC100	Option



PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
