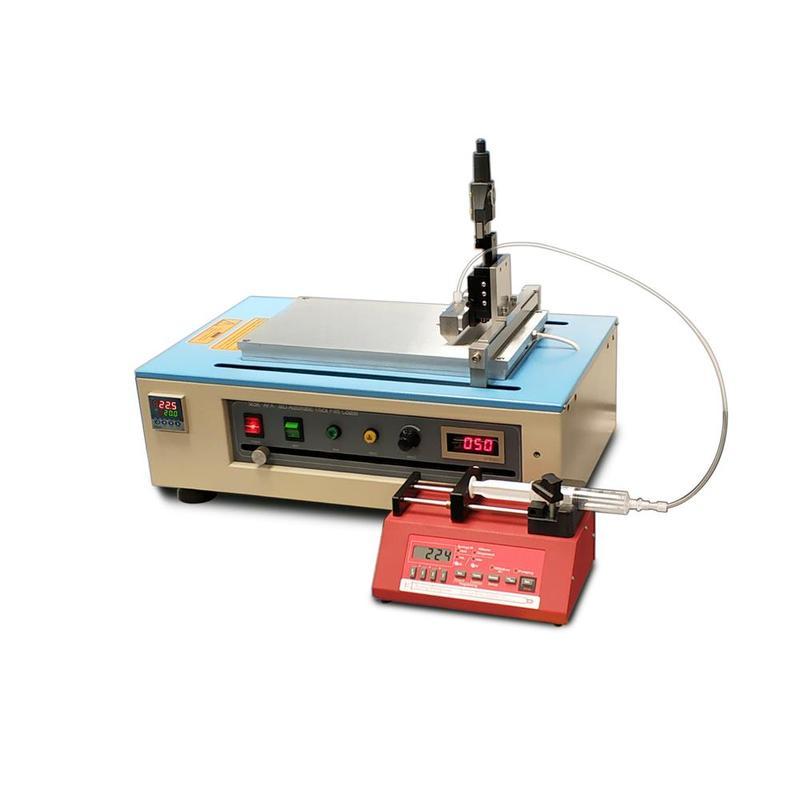

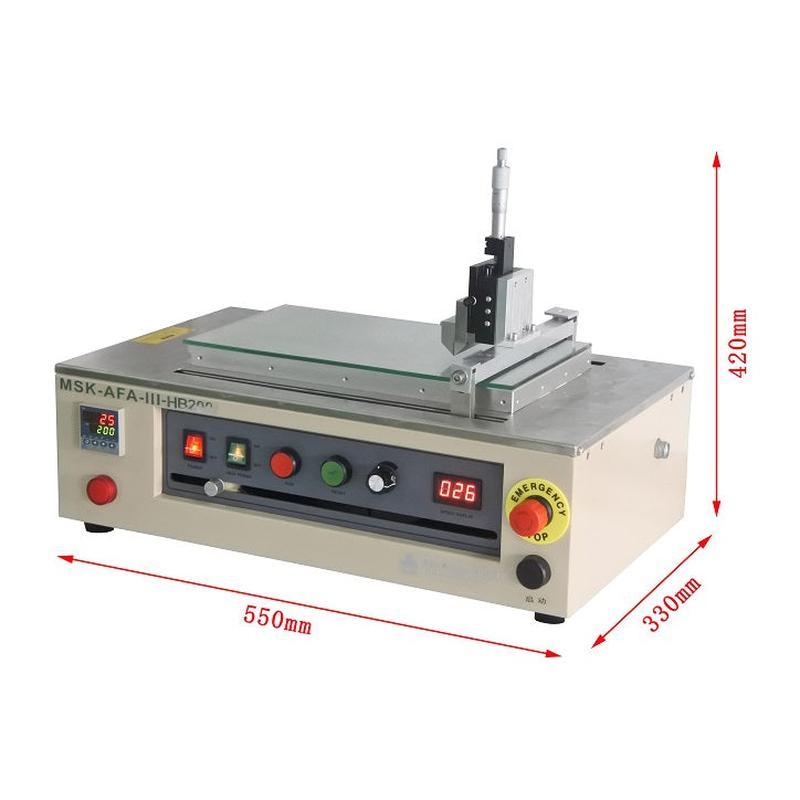

Benchtop Slot Die Coater with 50 mm Or 100 mm Width Options
MSK-AFA-III-FSC is an economic flat slot die with a 100mm coating head. It is an excellent tool to research film coating for perovskite solar cells, fuel cell proton exchange membrane, and the battery electrode.
SPECIFICATIONS
|
Working Power
|
-
110VAC or 208 - 240V AC 50/60Hz selectable from product option
-
1500W
|
Slot Died head
|
-
Slot die head fixtures with coating widths of 50mm and 100 mm are available in the product options bar
|
Syringe Pump
|
-
Digital Controlled Infusion Syringe Pump and connection pipe are included
-
Displays total volume dispensed in mL or µL units
-
The maximum pumping rate of 25 mL/hr with a 60 mL syringe
-
Precise reproducible flow rates
-
Selectable infusion rates units: mL/hr, µL/hr, mL/min, µL/min
-
Click the picture left to see detailed specs.
|
Micrometer Head
|
-
One micrometer head is a built-in travel rod of the coater to adjust the gap between slot die and substrate
-
A digital micrometer head is available as an option at an extra cost
Digital Micrometer Head 1" Travel 0.003 mm Accuracy
|
|
Travel Speed & Length
|
-
Travel Speed: 0 - 80mm/sec variable
-
Travel distance: 0 - 400 mm adjustable
|
Heated Vacuum Bed
|
-
Vacuum chuck made of aluminum alloy with the small hole
-
Vacuum chuck Area: 200 mm(W) x 365 mm(L) (8"W x 14"L)
-
Heating elements are installed inside the chuck which can reach 100ºC Max.
-
Precision digital temperature controller with +/- 1ºC accuracy
-
One high temperature temped glass plate is put on the vacuum chuck, and substrate will be put on the top
|
|
Options
|
-
Pic.1 and 2 show coated cathode and anode for Li-Ion batteries. Please click here to see how to
-
It is recommended to operate the coater under a fume hood. (Click Pic.3 for detail.)
-
May need a vacuum mixer to remove air bubbles inside slurry to make uniform coatings (Click Pic.4 )
-
You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail.)
 Pic. 4  Pic.5
|
|
Compliance
|
-
CE certified
-
NRTL or CSA certification is available upon request at the extra cost
|
Application Note
|
-
Coating thickness is not dependent on or equal to the gap between the slot die head and substrate.
-
Usually, the gap shall be larger than the coating thickness. Coated thickness is strongly dependent on slurry viscosity, coating speed, and flow speed. ( Lower viscosity, low flow rate, and low speed will result in a thinner film Please practice finding the best parameters which suitable for you
-
Example 5% carbon+ polymer, viscosity: 500mPa·s, substrate: Al foil of 16 um,
-
Gap: 200 um, Slurry feeding rate:: 0.1 ml/minute , Coating speed: 12mm/s
-
Coated film thickness: 10 um +/- 2 um
|
|
References
|
-
PNNL micro battery application: A reliable sealing method for micro batteries
-
Building better micro batteries: from fundamental research to manufacturing
|
