Benchtop Desktop Ultrasonic Spray Coating System for Drug-Eluting Balloons & Peripheral Stents Medical Device

Core Technologies:
• Proprietary ultrasonic spray head with independent IP - Precise drug dosage control
• Unique aerosol humidification technology - Accelerates drug crystallization
• Flawless coating quality - No adhesion, pinholes, or defects
• Exceptional uniformity, stability, and consistency
• High corrosion resistance - Compatible with diverse organic solvents

System Overview:

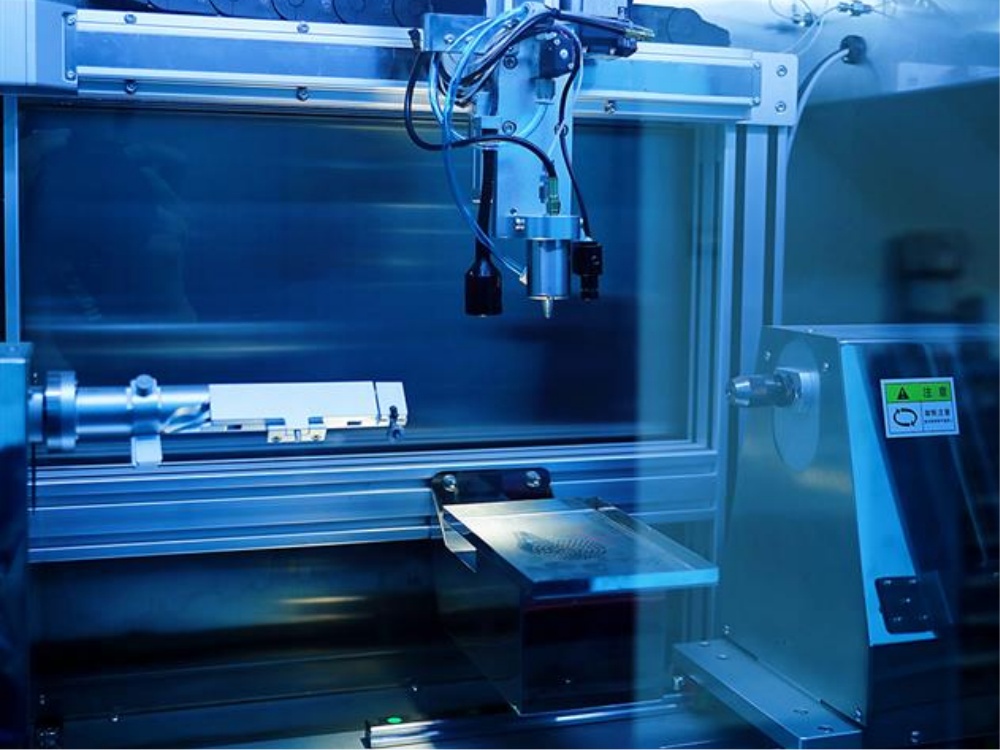

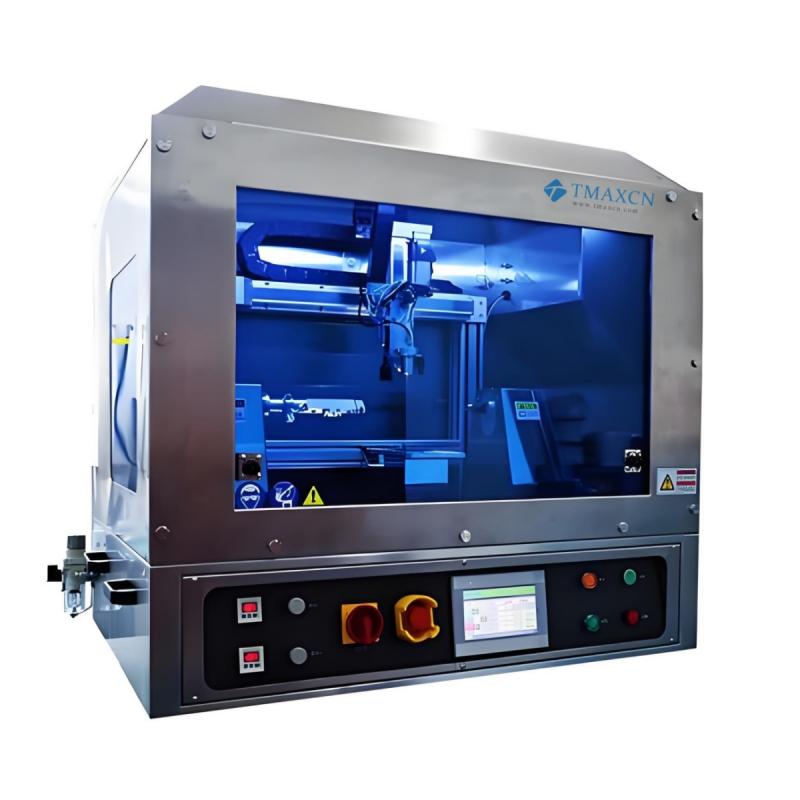

This benchtop ultrasonic coating system is specifically designed for applying drug coatings to balloon catheters and peripheral stents. With compact dimensions for laboratory workspace compatibility, it is ideal for R&D or space-constrained environments. Equipped with TMAX's focused-flow or micro-flow ultrasonic spray heads, the system enables precise drug loading with uniform coatings free from pinholes or orange-peel effects. Specialized fixtures and rotational mechanisms support coating applications for coronary balloons, peripheral balloons, and stents, making it the industry-preferred precision coating solution.

Key Features:

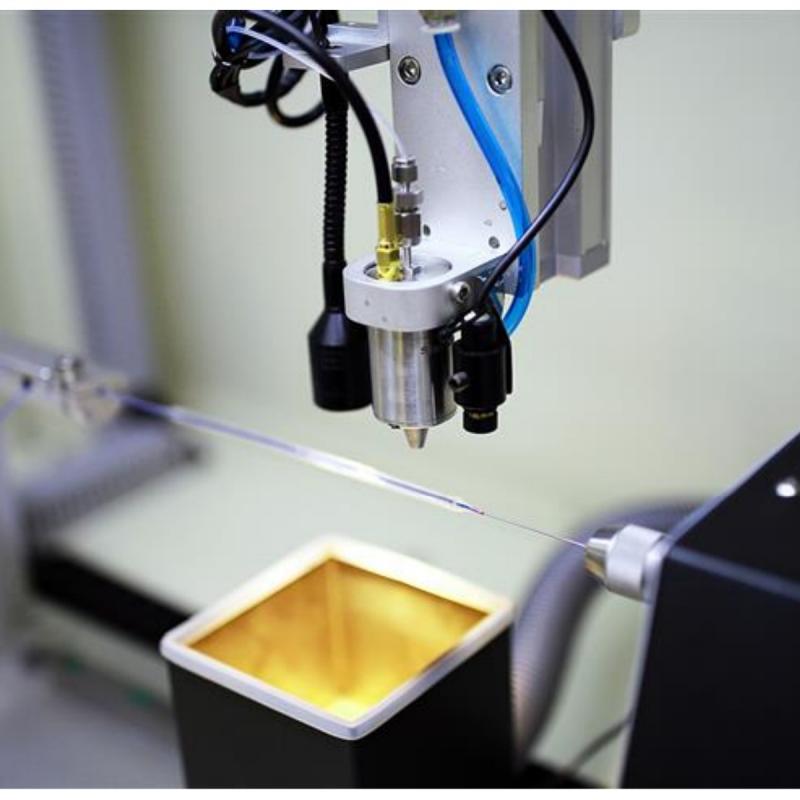

1. Ultrasonic Spray Technology

`Proprietary spray heads with optimized fluid/gas delivery

`Micro-precision spraying width: 1-10mm (adjustable for various balloon/stent sizes)

`4-5x higher material transfer efficiency vs. pneumatic spraying

`85%+ material utilization rate (4x conventional two-fluid spraying)

2. Process Advantages

`Uniform drug layers without pinholes, bubbles, or adhesion

`Accurate drug deposition control (<±5% dosage consistency)

`Submicron aerosol humidification for accelerated crystallization

`Self-cleaning spray heads prevent clogging

3. Mechanical Specifications

`Dual-motor synchronous rotation system (high-speed stability)

`Servo-controlled spray trajectory (µm-level precision)

`Rapid-load fixtures support:
• Balloon length: ≤280mm

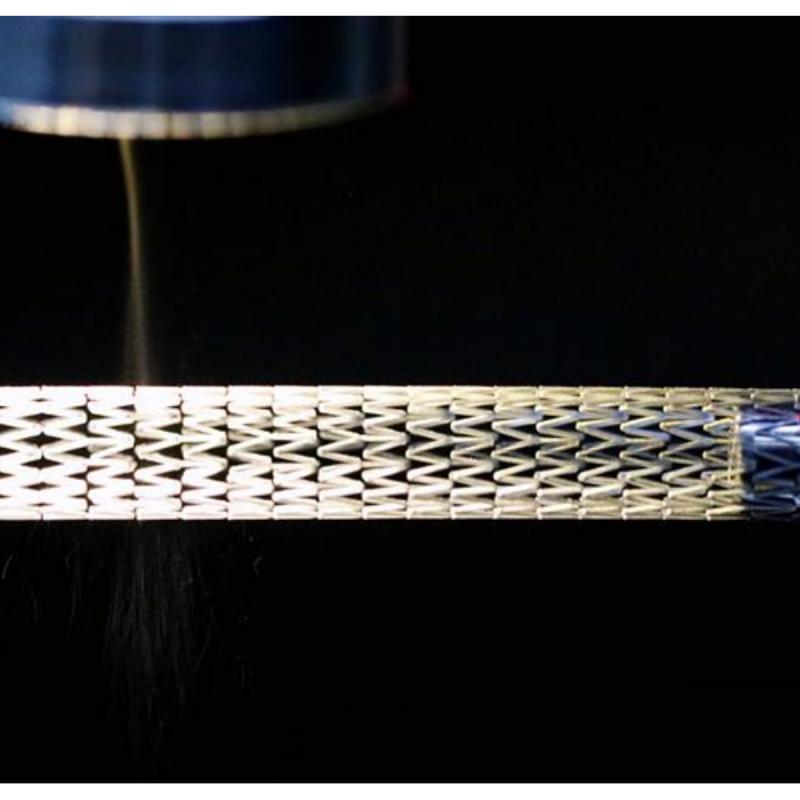

• Peripheral stents: ≤280mm length, ≤60mm diameter
• Catheter compatibility: Up to 2m length with coiling capability

4. Multi-Application Flexibility

`Configurable with multi-nozzle arrays for parallel processing

`Interchangeable fixtures for balloons/stents

`Online balloon inflation capability

5. Advanced Controls

`Digital ultrasonic generator:
`0.01W power resolution
`Multi-core closed-loop control

1. Flow rate range: 0.001-2mL/min (solvent-dependent)

2. Full-color HMI touchscreen interface

6. Material Compatibility

`Solvents: Acetone, THF, DMAC, Chloroform, Toluene, etc.

`Polymers: PU, PC, Silicone, PS, etc.

7. Optional Modules

`UD25 Ultrasonic Dispersion Sampler (nanoparticle anti-aggregation)

`Integrated/exhaust system (cleanroom compatible)

Coating Laboratory Services:
Our full-scale lab provides process simulation, validation, and standardization support, backed by engineers with extensive balloon coating experience.
