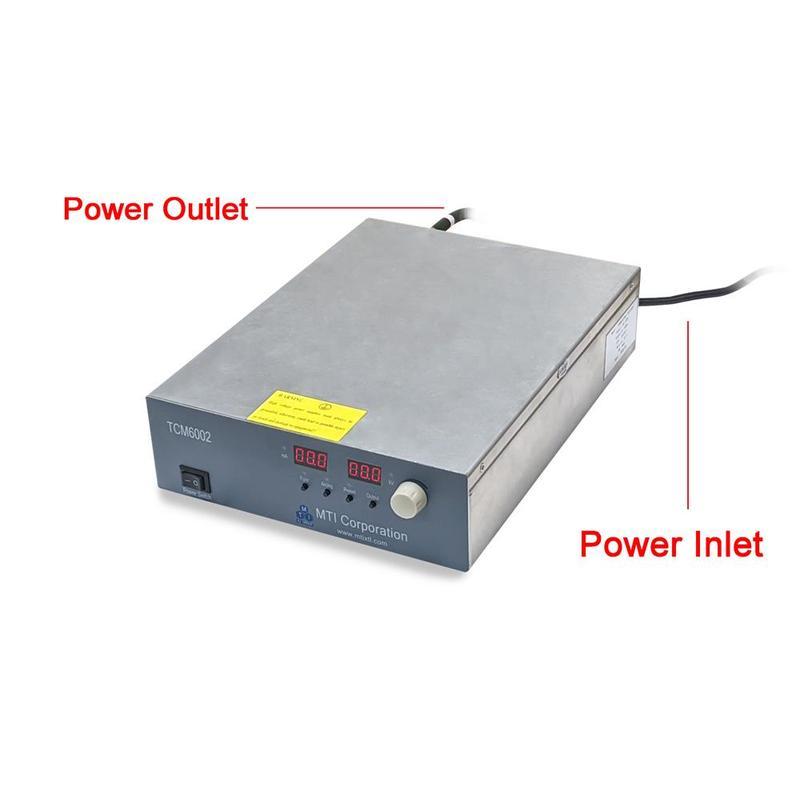

60 kV High Voltage Power Supply for DIY Electrospinning

MSK-ESPS-60-24V is an AC input DC output high voltage power supply designed for the DIY Electrospinning device.

High voltage power in the system must have Grounding tests(GFCI) before first-time use. Improper grounding may cause charge build-up and damage the unit.

SPECIFICATIONS

Features	Digital Voltmeter and Current display Output voltage and current can be set by using knobs on the front panel and read from the digital display Constant current/Constant Voltage mode of operation Built-in Arc Protection Circuit
Input Power	208 - 240V AC (50/60Hz) 150W Max power consumption You may order a 200W transformer to run it at 110VAC Power Inlet and Outlet Cable are included
Output Power	DC 0 - 60 kV Single Output, 2.5 mA max Current
Dimensions	214mmL×285mmW×67mmH
Operational Environment	Temperature: 0 - 50 °C Humidity: 10 - 80% RH
Compliance	NRTL certification is available upon request at the extra cost
Warranty	One-year limited warranty with lifetime support
Options	You may need Syringe Pump to deliver liquid, Please click the Pic. 1 below to order. You may need a drum collector to make coating ( Please click Pic. 2 to order) You may order X-Y stage for flat coating, please click Pic. 3 right to order Please put the device into a fume hood for safety and health ( Pic. 4) DIY an Ultrasonic Spray and Electrospinning device Pic. 1 Pic. 2 Pic. 3 Pic. 4
Operation Instructions
