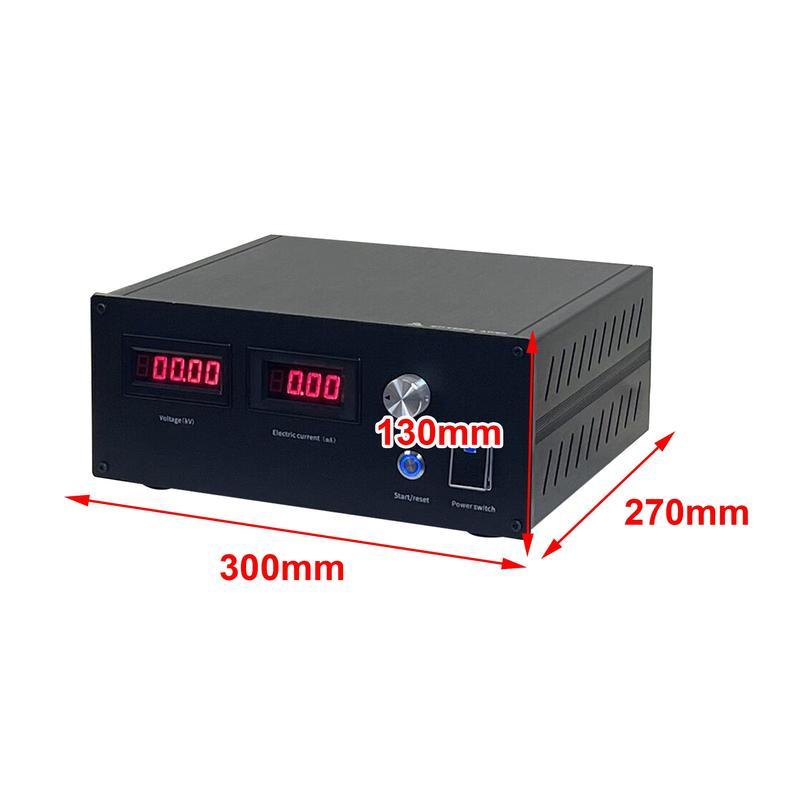

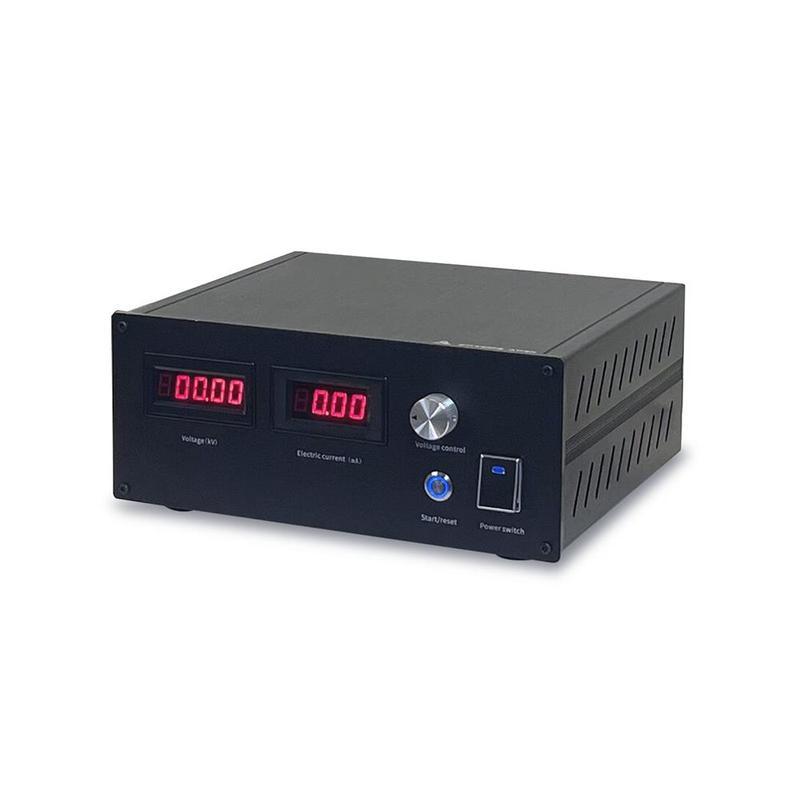

50 kV High Voltage Power Supply with Max Power 50 W

MSK-ESPS-TE4020 is a high voltage power supply, with Output Power: DC 0 - 50KV Single Output, designed for the DIY Electrospinning device.

For High voltage power in the system, must have Grounding tests(GFCI) before first-time use. Improper grounding may cause charge build-up and damage the unit.

SPECIFICATIONS

Features	Digital Voltmeter and Current meter Output voltage and current can be set by using knobs on the front panel and read from the digital display Constant current/Constant Voltage mode of operation
Input Power	AC 220V 50/60Hz, 50 W Max. power consumption Please order a transformer when using 110V.
Output Power	DC 0 - 50KV Single Output, 50W max.
Compliance	CE certified
Application Demo Video	DIY an Electrospinning device
Options	You may need Syringe Pump to deliver liquid, Please click the Pic. 1 below to order. You may need a drum collector to make coating ( Please click Pic. 2 to order) You may order X-Y stage for flat coating, please click Pic. 3 right to order Please put the device into a fume hood for safety and health ( Pic. 4) DIY an Ultrasonic Spray and Electrospinning device Pic. 1 Pic. 2 Pic. 3 Pic. 4
Operation Instructions
Shipping	15 lbs

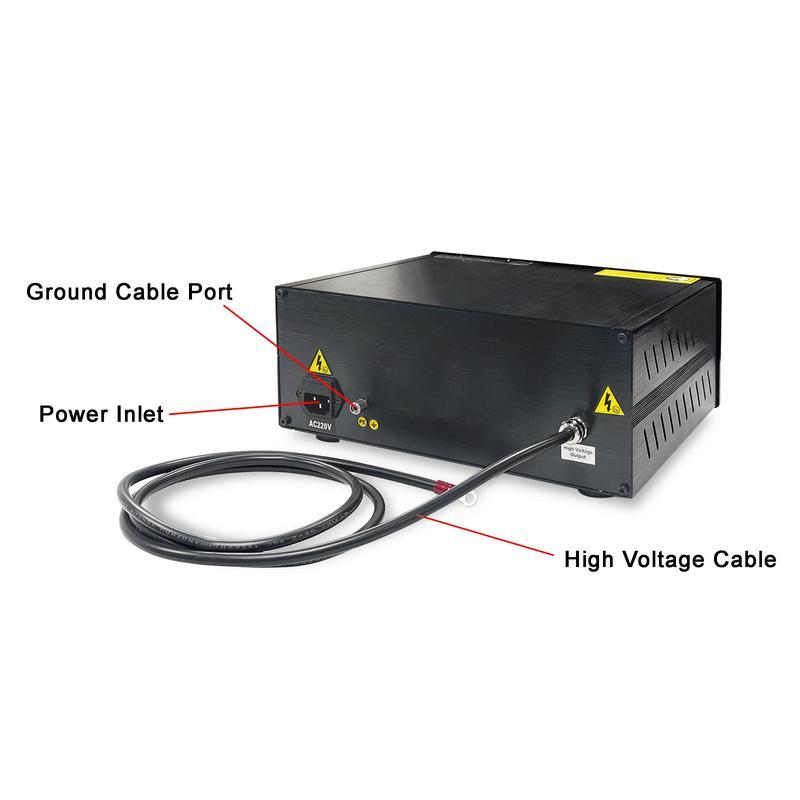

STANDARD PACKAGE

Item No.	Description	Quantity
MSK-ESPS-TE4020	High Voltage Power Supply	1
	High Voltage Cable	1
	Ground-Cable	1
Power Cord	220V AC Power plug is not included. Please click here to order the plug	1
