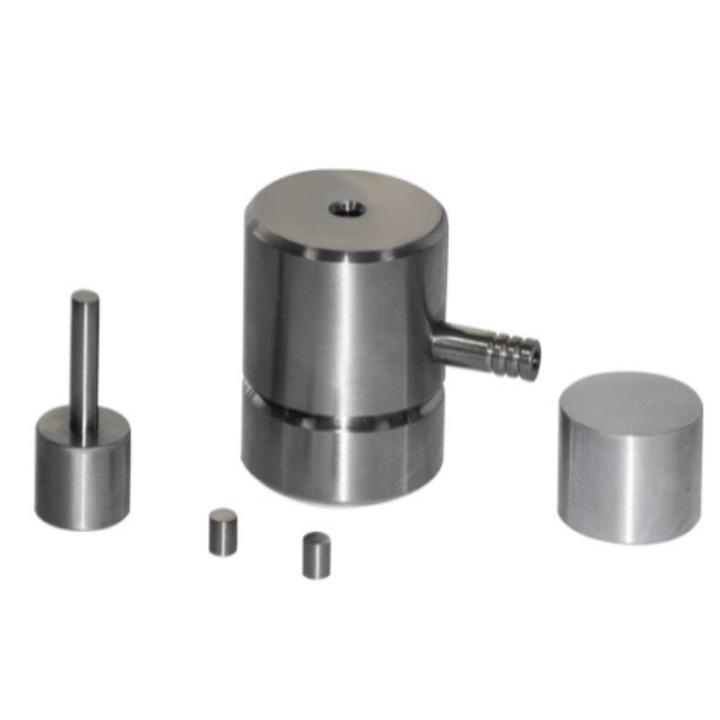

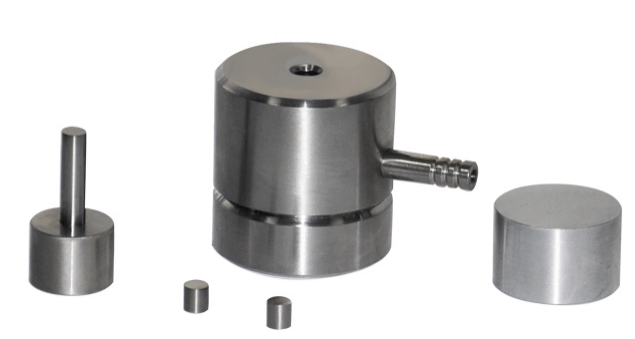

Φ3-6mm Lab Ordinary Cylindrical Mold for Tablet Press
Parameter
|
Model |
LITH-PMY-A |
|
Compressed sample shape |
|
|
Mold material |
Japanese high speed tool steel ASSAB+17 |
|
Indenter hardness |
HRC68-HRC70 |
|
Sample size |
Φ3、Φ4、Φ5、Φ6mm(M) |
|
Cavity depth |
20mm(N) |
|
Dimensions |
Φ43*78mm(L*H) |
|
Mold weight |
0.55kg |
|
Dimension diagram |
|

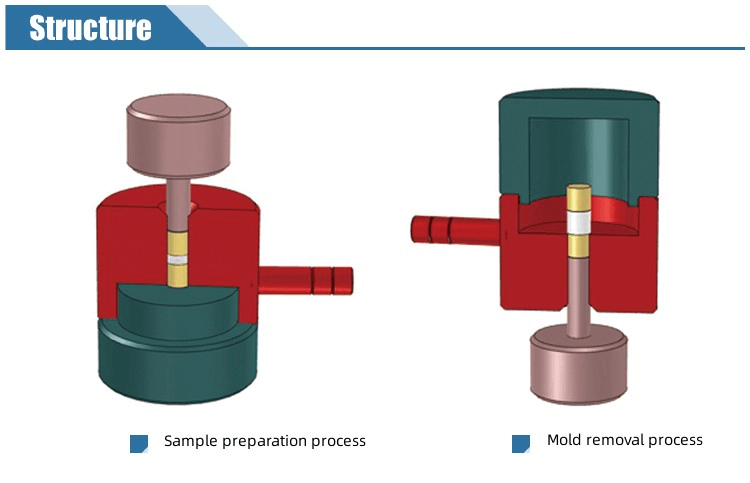

Schematic Diagram of Mold Operation
Mold sample preparation operation steps
Mold use and maintenance
