 Φ11-20mm Round Open-flap Powder Pellet Press Die

Open-flap Die
Open-flap Die

Φ11-20mm Round Open-flap Powder Pellet Press Die

Contact Person：Gilia Ding


Email: gilia@inthelaboratory.com

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna



  • Item no.:

    LITH-PMK-YB

  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal

  • Lead Time:

    7 days

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited standard warranty
Categories
  • Product Detail

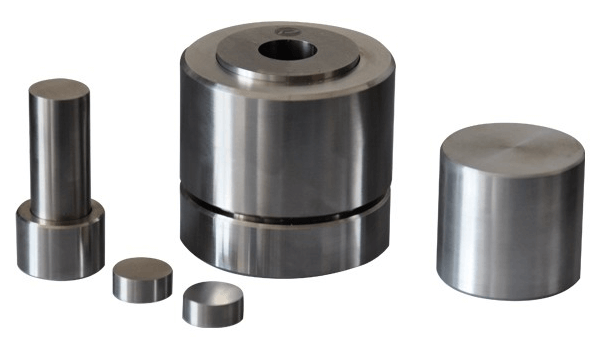

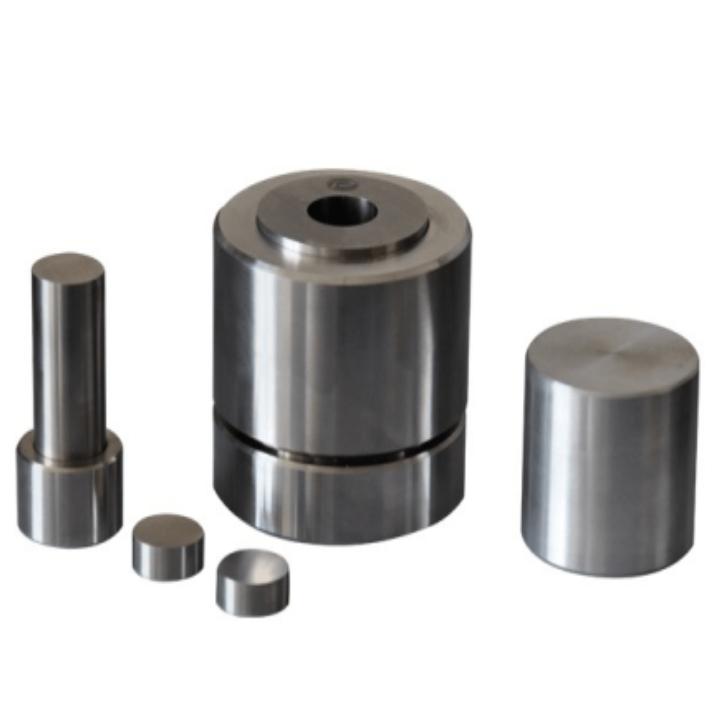

Φ11-20mm Round Open-flap Powder Pellet Press Die


Open-flap Die


Parameter

Model

LITH-PMK-YB

Compressed sample shape



Mold material

Alloy tool steel Cr12MoV


Indenter hardness

HRC68-HRC70

Sample size

Φ12、Φ13、Φ15、Φ18、Φ20mm(M)


Cavity depth

40mm(N)

Dimensions

Φ53*120mm(L*H)

Mold weight

1.2kg





Dimension diagram






Schematic Diagram of Mold Operation

Powder Pellet Press Die





Mold sample preparation operation steps

Powder Pellet Press Die

Φ11-20mm Round Die





Mold use and maintenance
