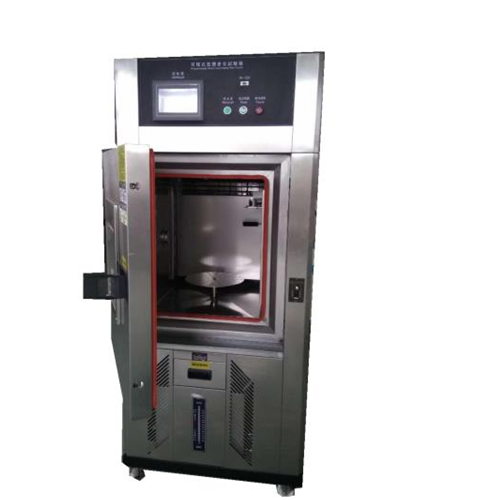

Xenon Arc Lamp Aging Test Chamber Machine
Introduction
The xenon arc lamp, which can simulate the whole sunlight spectrum, can be used to reproduce the destructive light waves in different environments. It can provide corresponding environmental simulation and accelerated test for scientific research, product development and quality control. S-type xenon arc lamp test chamber can be used for the selection of new materials, the change of existing materials or the change of durability test after the change of material composition. It can well simulate the change of materials exposed to sunlight under different environmental conditions. We also supply all kinds of Aging Machine,Aging Tester for you!
Specifications
Temperature range
10℃～80℃
Humidity range
65%～98%R.H
Blackboard temperature
63℃、100℃（accuracy: ±3℃）
Temperature fluctuation
≤±1.5℃
Uniform temperature
≤±2.0℃
Humidity fluctuation
+2%～-3% R.H
Window filter
Borosilicate glass
Xenon light source
Imported air-cooled xenon arc light
source
Xenon lamp power
1.8KW
Lamp Quantity
1
Rainfall time
1～9999min，continuous rainfall adjustable
Rainfall cycle
1-240 minutes, intermittent rainfall
adjustable
Nozzle bore
Ф0.8mm(with ultra fine filter to prevent
nozzle clogging)
Rain water pressure
0.12～0.15kpa
Spray cycle
18min/102min or 12min/48min(spray
time / no spray time)
Spray pressure
0.12～0.15Mpa
heating power
2.0KW
Humidification power
2KW
Light period
Continuous adjustable time 0-999 hours
Spectral wavelength
The irradiance range of 295nm-800nm is
100w-800W /㎡ adjustable.
Rotary speed
Adjustable rotation speed of the stage
(stepless speed regulation)

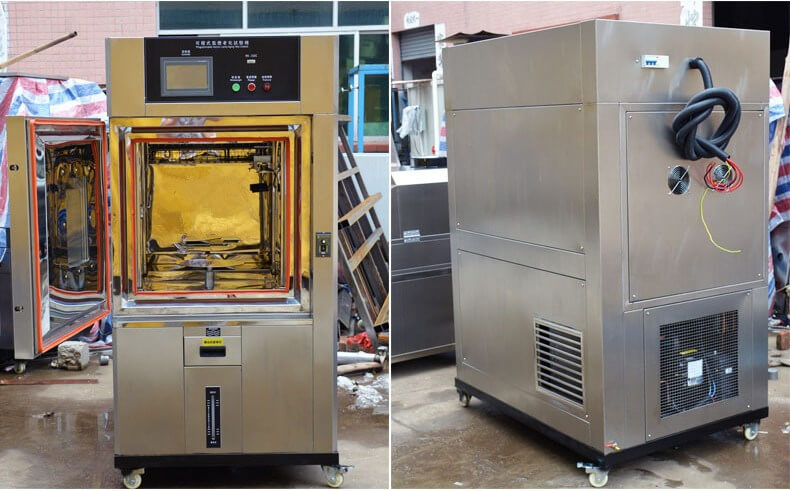

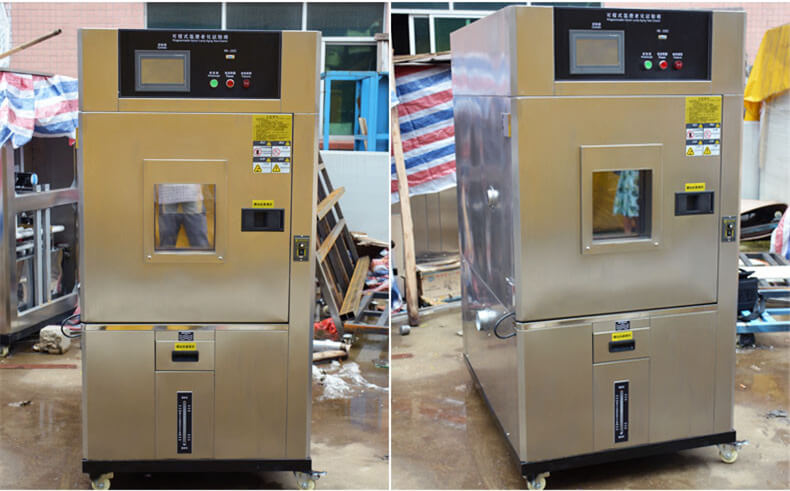

Picture for Reference
