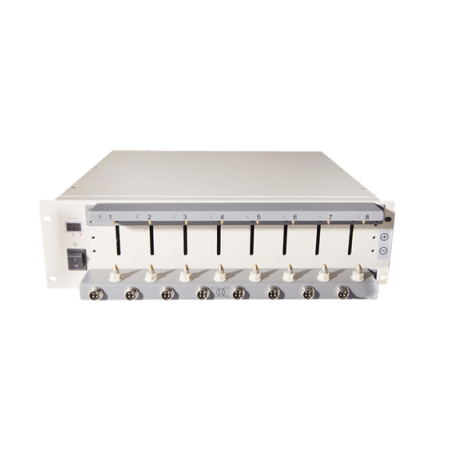

5V6A 8 Channels Battery Tester Testing Machine for Polymer&Cylindrical Battery
Introduction
1. LN-BTS-5V6A Battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 12.0 mA to 6000 mA, up to 5V.
2. This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
1. LN-BTS-5V6A Battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 12.0 mA to 6000 mA, up to 5V.
2. This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
Key Specifications
|
Project index
|
Parameter index
|
|
|
Input Power
|
AC 220V ±10% / 50Hz
|
|
|
resolution
|
AD: 16bit; DA: 16bit
|
|
|
Input Resistance
|
≥1MΩ
|
|
|
Input Power
|
425W
|
|
|
Channel Features
|
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
|
|
|
Channel Control Mode
|
Independent Control
|
|
|
Voltage
|
Per Channel Voltage Range
|
Charge: 0.025V~5V; Discharge: 1.0V~5V
|
|
Accuracy
|
± 0.05% of FS
|
|
|
Stability
|
± 0.05% of FS
|
|
|
Current
|
Per Channel Current Range
|
Range1: 0.5mA~1A; Range2: 0.1A~3A; Range3: 3A~6A
|
|
Accuracy
|
± 0.05% of FS
|
|
|
Stability
|
± 0.05% of FS
|
|
|
Power
|
Per Channel Output Power
|
30W
|
|
Stability
|
± 0.1% of FS
|
|
|
Time
|
Current Response Time(10%FS~90%FS)
|
1ms
|
|
Step Time Range
|
1s≤Single Step Time Range≤365*24 h，
Time Form Support 00：00：00(h、min、s)
|
|
|
Data Recording
|
Record Condition
|
Min. Record Time: 100ms
|
|
Min. Record Voltage: 10mV
|
||
|
Min. Record Current：Range1: 0.2mA；Range2: 6mA; Range3: 12mA
|
||
|
Record Frequency
|
10Hz
|
|
|
Charge
|
Charge Mode
|
Constant Current Charge, Constant Voltage Charge,
CC-CV Charge , CP-Charge
|
|
End Condition
|
Voltage、Current、Relative Time、Capacity、-△V
|
|
|
Discharge
|
Discharge Mode
|
Constant Current Discharge CP-D CR-D
|
|
End Condition
|
Current、Current、Relative Time、Capacity
|
|
|
Pulse Model
|
Charge
|
Constant Current、Constant Power
|
|
Discharge
|
Constant Current、Constant Power
|
|
|
Min Pulse Width
|
500ms
|
|
|
Pulse Number
|
Single Pulse Step Support 32 different Pulse
|
|
|
Charge r To Discharge
|
One Pulse Step Can Support Continuous Charge And Discharge Change
|
|
|
Stop Condition
|
Voltage、 Relative Time
|
|
|
DCIR Testing
|
Support Custom Access Point And Count The DCR
|
|
|
Cycle
|
Loop Measure Range
|
1~65535 times
|
|
Max Steps Per Loop
|
254
|
|
|
Nested Loop
|
Nested loop Function, Max Support 3 Layers
|
|
|
Protection
|
Software Protection
|
*Power-down Data Protection
|
|
*Setting Protection Condition，Setting Parameter: Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time
|
||
|
Voltage and Current Testing Sample
|
4-wire connecting
|
|
|
Noise
|
<85dB
|
|
|
Data Management
|
MySQL Database
|
|
|
Communication Means
|
TCP/IP Protocol
|
|
|
Data Output
|
EXCEL、TXT
|
|
|
Communication Interface
|
Ethernet Port
|
|
|
Main Channels
|
8
|
|
|
Dimensions
|
3U, W*D*H：480*730*130（mm）per unit
|
|
|
Working Temperature Range
|
0℃~40℃
|
|
|
Storage Temperature Range
|
-10℃~45℃
|
|
|
Working Environment Relative Humidity Range
|
30% ~ 80% RH
|
|
|
Storage Environment Relative Humidity Range
|
30% ~ 90% RH
|
|

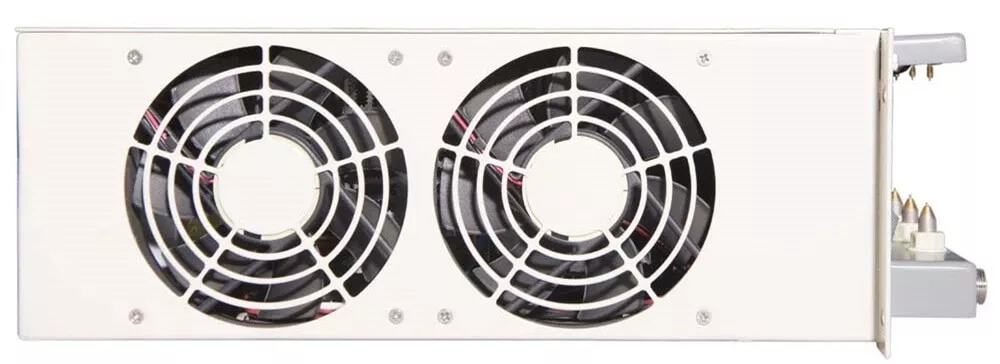

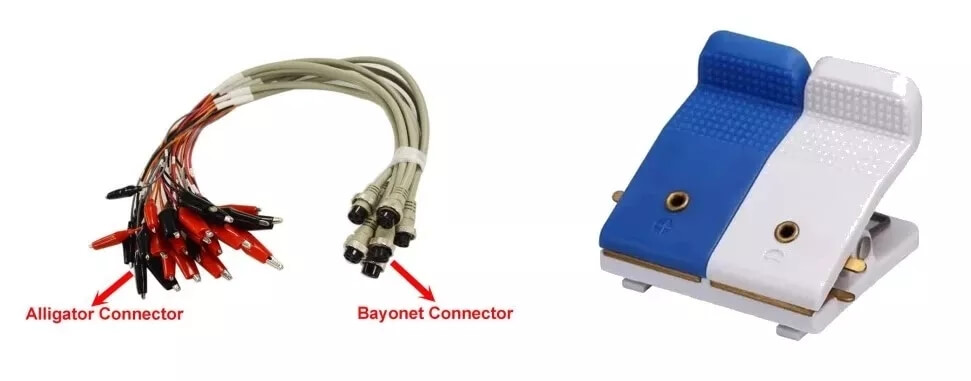

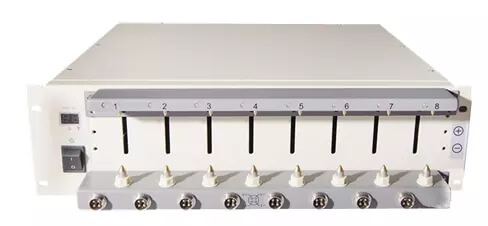

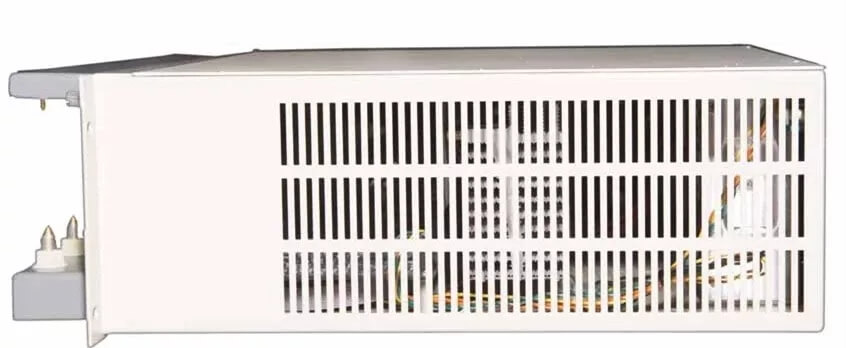

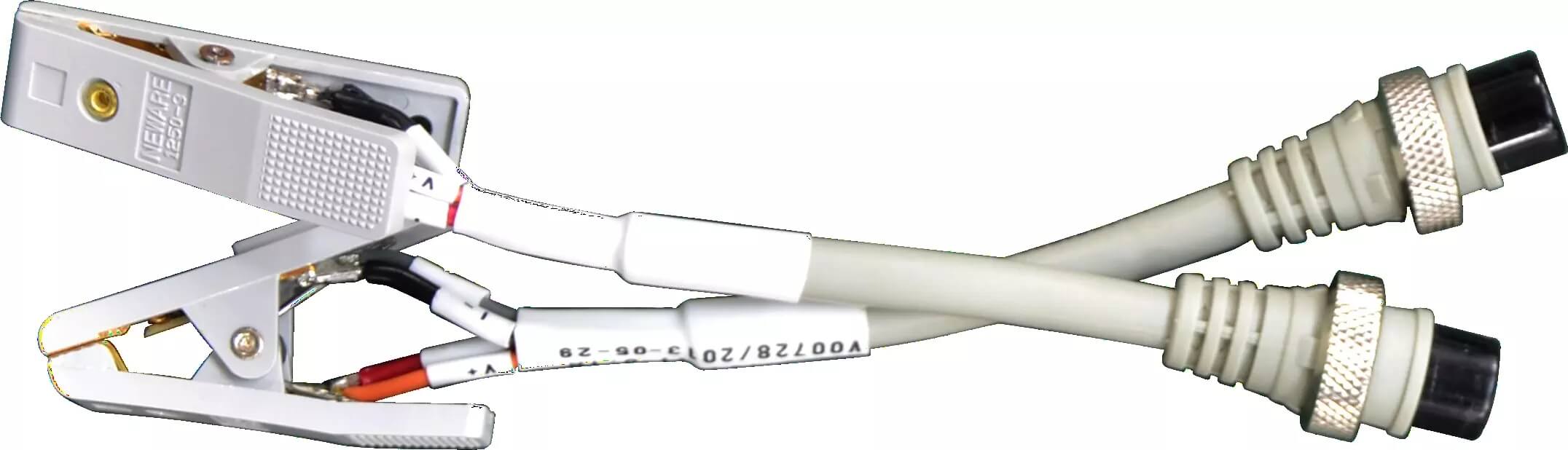

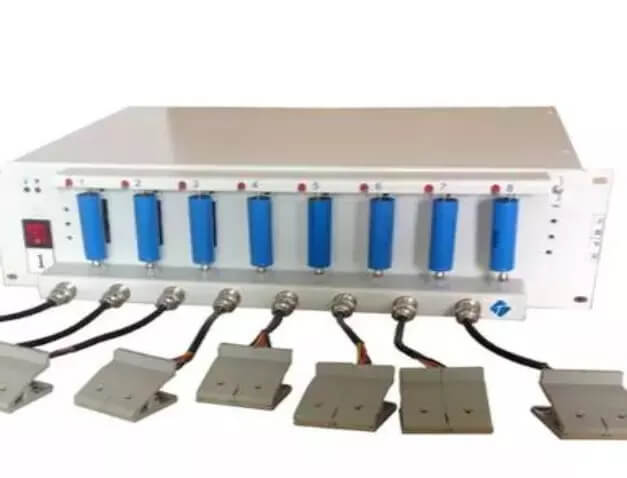

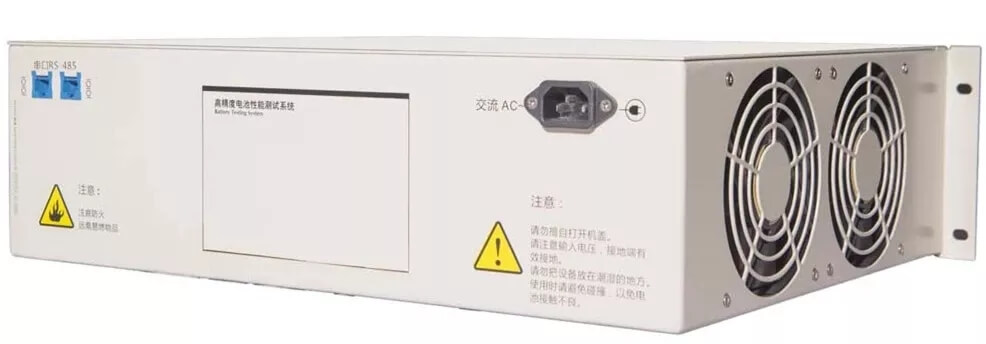

Picture for Reference
