Lithium-ion Battery Pack Washing Tester Testing Machine
Introduction
Suitable for the following batteries or battery packs: lithium-ion battery packs for handheld electronic products, lithium-ion battery packs for portable electronic products that may be carried or used in a pocket, and battery packs for other portable electronic products that can be carried in a pocket , The washing test of handheld electronic products with non-user-replaceable batteries/battery packs.
Key Specifications
|
Test box temperature range
|
Normal temperature ~ 80 ℃ (adjustable, can be set arbitrarily), the usual temperature is 45 ± 2 ℃
|
|
Temperature accuracy
|
±0.5℃
|
|
Temperature uniformity
|
±2℃
|
|
The diameter of the inner barrel of the washing box
|
650 mm * 550 mm
|
|
The depth of the barrel in the washing box
|
550 mm
|
|
The size of the inner box of the test box (including the washing box)
|
700*700*1000mm (W*D*H)
|
|
Stirring
|
Fix the sample on the rotating device (washing paddle) and rotate it in the solution for 0.5h at a speed of 60r/min
|
|
Rotating propeller material
|
SUS#316 stainless steel
|
|
Inner box material
|
SUS#316 stainless steel
|
|
Drive system
|
Driven by Huada servo motor and servo controller, with high operating accuracy
|
|
Dehydration speed
|
the solution can be removed automatically or manually, the rotating device (washing paddle) rotates for 10 minutes, and the speed
is 800r/min (displayable)
|
|
Test time
|
0-9999H/M/S Can be set arbitrarily
|
|
Temperature control method
|
Intelligent P.I.D control
|

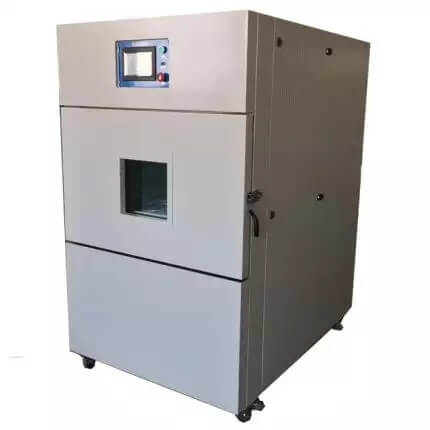

Picture for Reference
