Lithium Battery Flame Resistance Projectile Test Chamber Burning Tester


Introduction
This machine is suitable for the flame resistance test of lithium batteries (or battery packs). Drill a round hole with a diameter of 102mm on an experimental platform, and place a steel wire mesh on the round hole, place the battery under test on the steel wire mesh screen, install an octagonal aluminum wire mesh around the sample, and then ignite The burner heats the sample until the battery explodes or the battery burns out, and the combustion process is timed.


Standard

GB/T 31241-2014 "Safety requirements for lithium-ion batteries and battery packs for portable electronic products"

UL 1642:2012 "Lithium Battery Standard"

UN38.3(2012) "Recommendations on the Transport of Dangerous Goods-Manual of Tests and Standards"

Part III IEC62133-2012 "Safety requirements for batteries and battery packs containing alkaline or non-acid electrolytes"


Key Specifications





Burner
Bunsen burner, the inner diameter of the tube mouth is 9.5mm and the length is about 100 mm
Flame application time
0~ 999.9 seconds ± 0.1 seconds
Test hole surface diameter
102mm
Test cover width
24 "(610mm), octagonal
Test cover height
12 "(305mm)
Accessories
Including burner and support frame, test table, standard metal mesh cover, standard metal mesh
Equipment power supply
1φ220V, 50/60HZ, 10A
Other
Automatic ignition, automatic control of the test process.

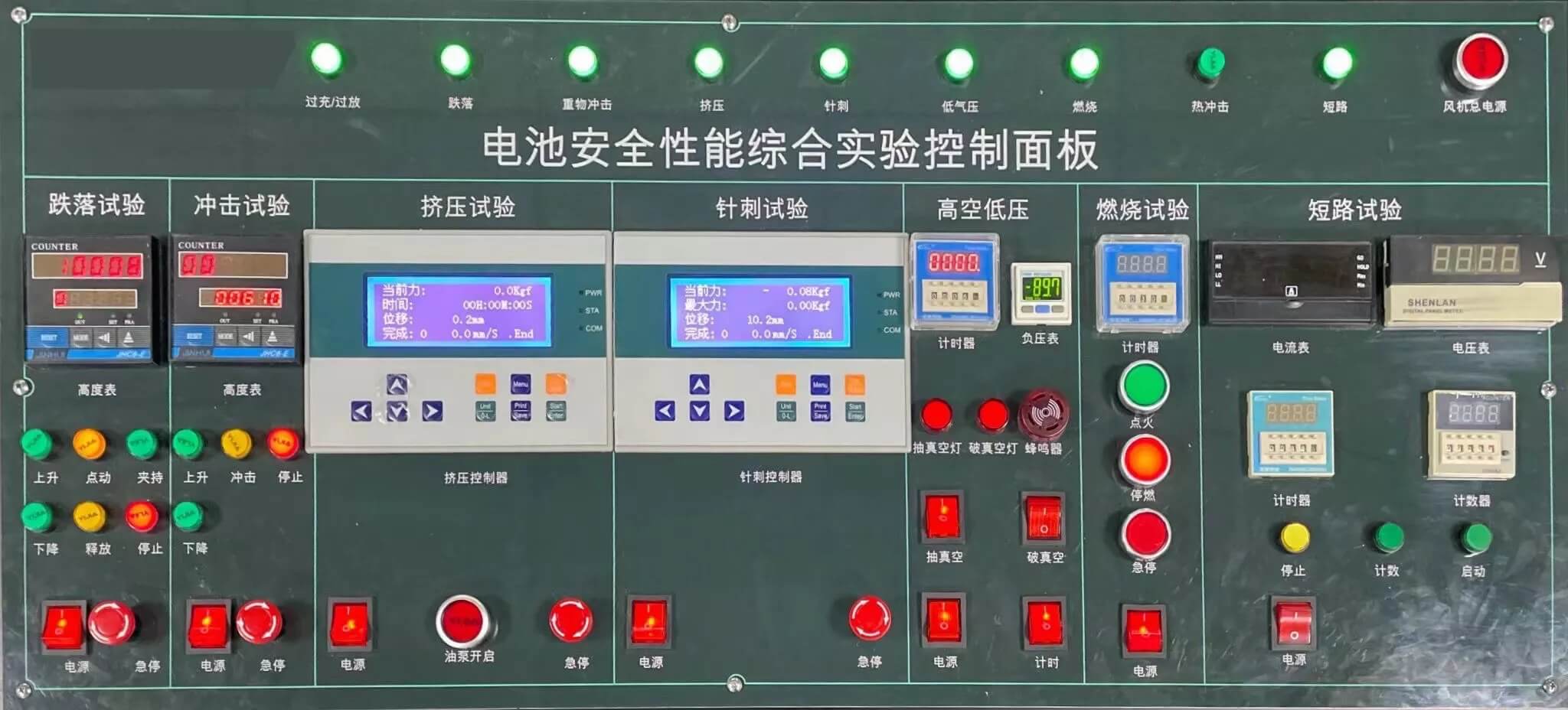

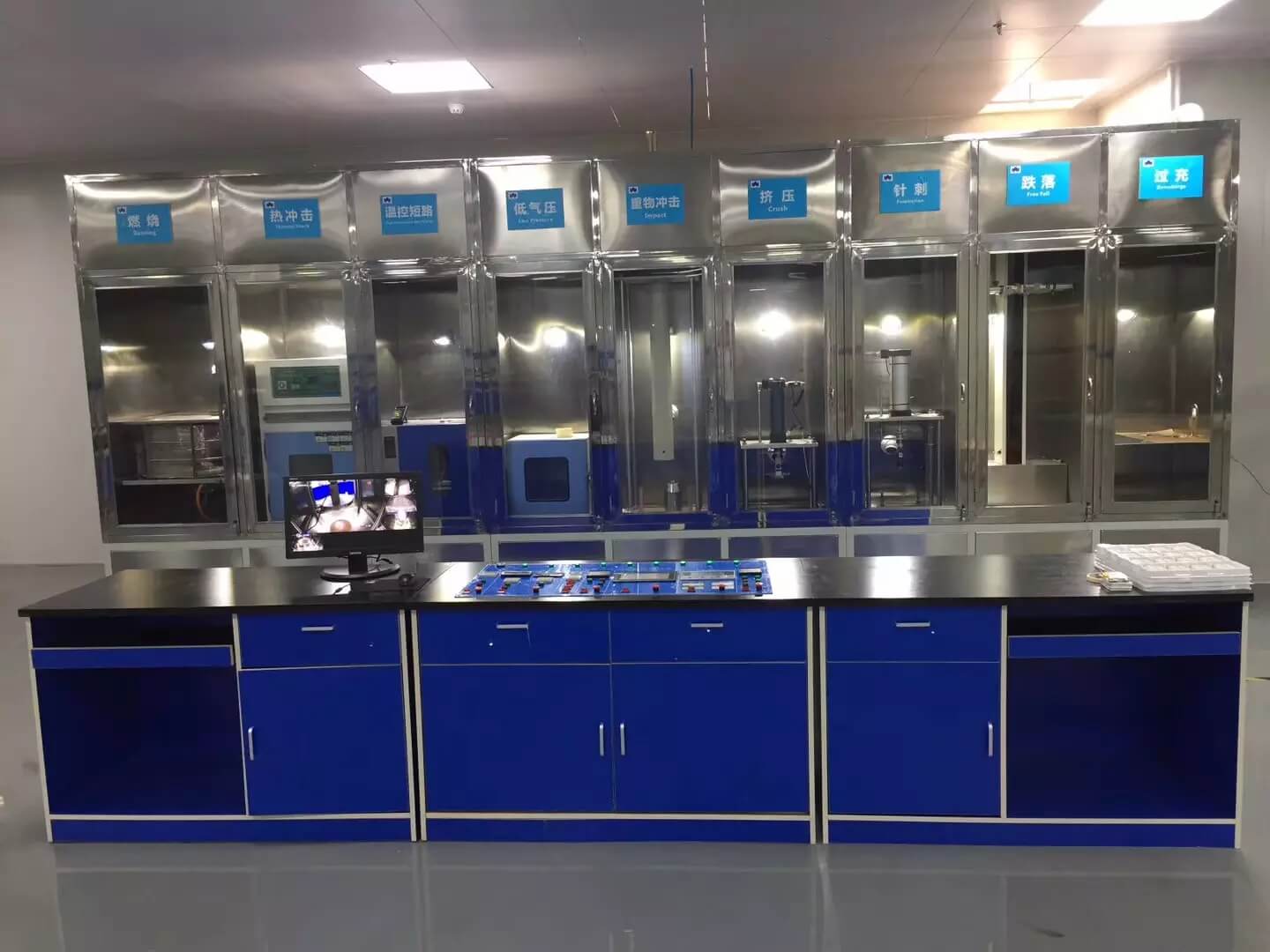

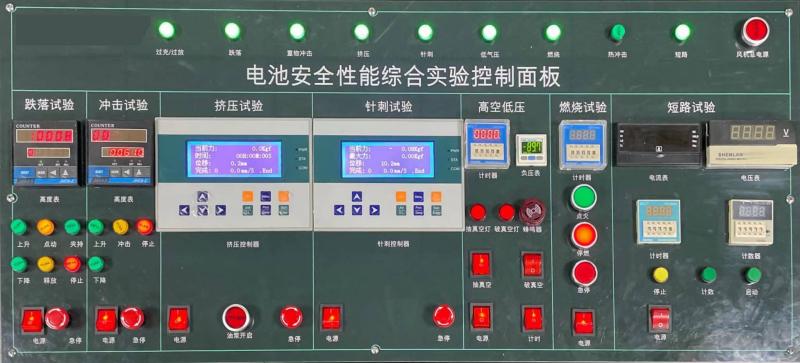

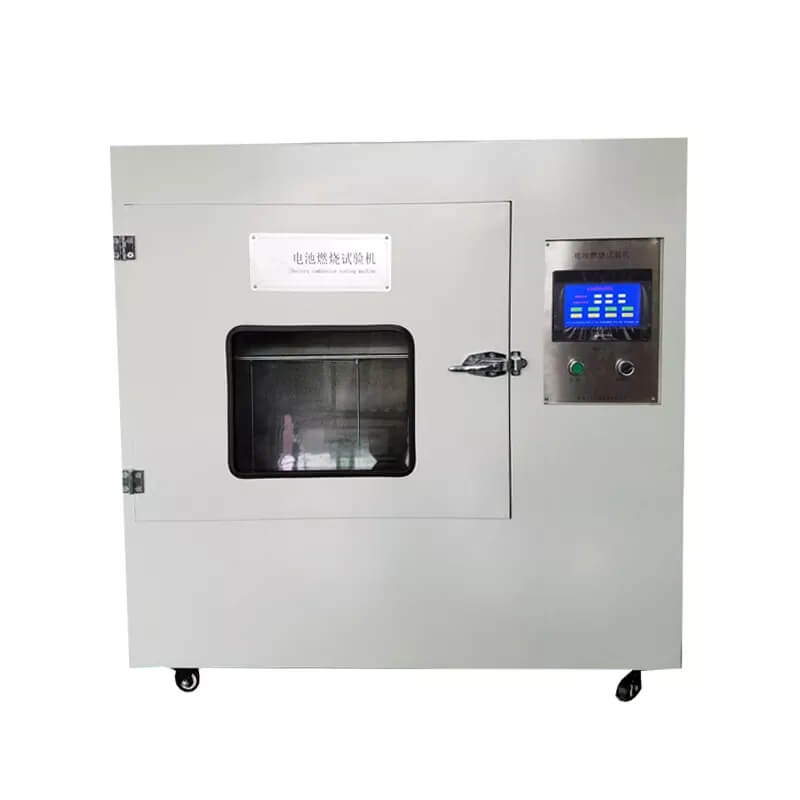

Picture for Reference
